RL78/G23 Lighting Communication Master Evaluation Board
Jump to Page Section:
Overview
Description

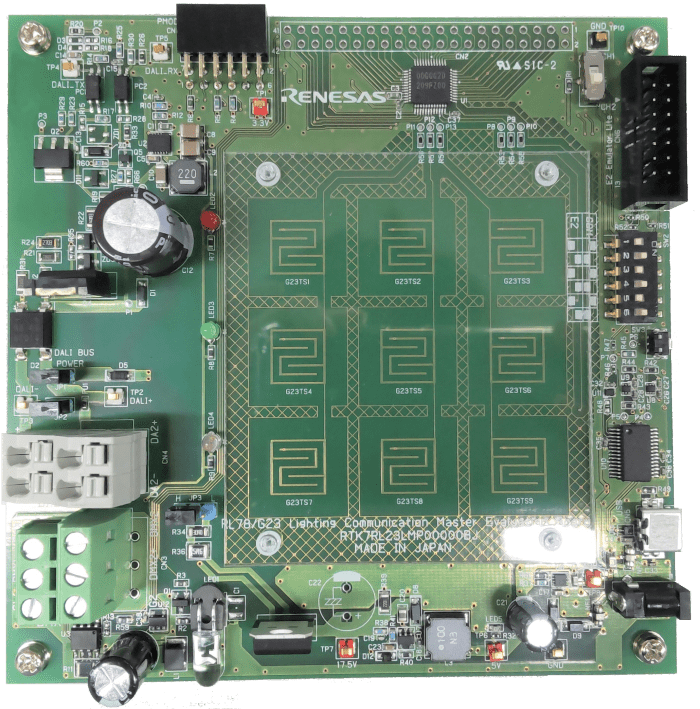

The RL78/G23 Lighting Communication Master Evaluation Board is a lighting communication master board for controlling evaluation boards for various lighting communication standards. It supports DALI, DMX512, and infrared communication protocols. It is applicable to DALI multi-master operation and various DALI test standards*1.
This board is equipped with a Pmod™ interface connector, enabling connection of various sensors, etc. It is also equipped with a capacitive touch key sensor, so operation by touch key sensor is possible.
*1. Refer to RTK7RL23LMP00000BJ Schematics Rev. B (R20UT5251EJ0100) for the circuit diagram corresponding to DALI test standards.
Features
- Equipped with an RL78/G23 16-bit microcontroller 48-pin, ROM: 128KB, RAM: 16KB
- Equipped with capacitive touch key sensor
- Programs can be written and debugged via the COM Port communication by connecting it to a PC with a USB cable
- Pmod™ interface comes standard
- Support for various RL78 software and tools
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 363 KB 日本語 | |
| Manual - Development Tools | PDF 1.94 MB 日本語 | |
| Manual - Development Tools | PDF 304 KB 日本語 | |
| Manual - Development Tools | PDF 1.42 MB 日本語 | |
| Manual - Development Tools | PDF 2.08 MB 日本語 | |
5 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| DALI Master Controller GUI The DALI Master Controller GUI controls an RL78/I1A lighting communication master evaluation board
|
Code Generator | Renesas |
1 item
|
||
Processing table
RTK7RL23LMP00000BJ Active |
