FemtoClock™ 2 Evaluation Kit
This is the evaluation kit for the RC32508A jitter attenuator and clock generator. The board comes populated with an RC32508A device.
FemtoClock 2 Jitter Attenuator or Clock Generator
Jump to Page Section:
Overview
Description

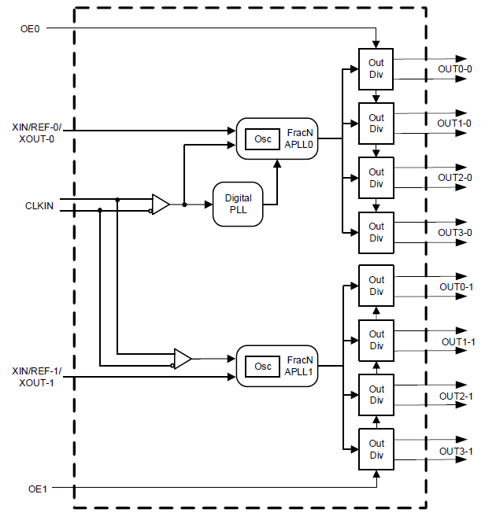

The RC32508A regenerates and distributes ultra-low jitter clock outputs and features up to 2 independent frequency domains that can be either locked to the external reference clock or locked to a free-run crystal or oscillator. Digital PLL (DPLL) support hitless reference switching between references from redundant timing sources. The device supports multiple independent timing channels for clock generation and jitter attenuation for high-speed serial links. Input-to-input, input-to-output and output-to-output phase skew can all be precisely managed. The device outputs ultra-low-jitter clocks that can directly synchronize SERDES running at up to 112Gbps; as well as CPRI/OBSAI, SONET/SDH ADC/DAC. The device is ideal for use in 100G/200G/400G/800G telecom switch line cards, fabric cards and OTN applications.
Features
- Can be configured as clock generator or jitter attenuator/synchronizer
- Low power, less than 0.8W typical
- Low jitter, less than 50fs-RMS
- Compliant with ITU-T G.8262 & G.8262.1 option 1 and 2 for synchronous Ethernet Equipment Clock (EEC/eEEC) without degrading output jitter
- Jitter attenuation with programmable loop bandwidth from 0.1Hz to 12kHz
- Up to 2 independent frequency domains and 8 integer output dividers
- Each frequency domain can be slaved with DPLL or free-run
- DPLL can be configured as DCO
- LVCMOS, AC-LVPECL, AC-LVDS, HCSL, AC-CML output modes supported with programmable output swing
- Up to 2single ended or 1differential clock inputs, 1 crystal/XO/TCXO/OCXO input
- Supports 1MHz I2C, 400kHz SMBus or 50MHz SPI serial port
- Internal non-volatile memory (up to 8 different configurations) provides default device settings on power-up.
- 1.8V core and output operation
- -40° to +85°C industrial temperature operation
Documentation
|
|
Date | |
|---|---|---|
| PDF 1.05 MB | Datasheet | |
| PDF 1.46 MB | Guide | |
| PDF 91 KB | Application Note | |
| PDF 872 KB | Overview | |
| PDF 1.53 MB | Manual - Software | |
| PDF 1.99 MB | Application Note | |
| PDF 377 KB | Application Note | |
| PDF 129 KB | Application Note | |
| PDF 256 KB | Application Note | |
| PDF 433 KB | Application Note | |
| PDF 1.22 MB | Manual - Software | |
| PDF 80 KB | Guide | |
| PDF 395 KB | Application Note | |
| PDF 170 KB | Application Note | |
| PDF 495 KB | Application Note | |
| PDF 442 KB | Application Note | |
| PDF 115 KB | Application Note | |
| PDF 233 KB | Application Note | |
| PDF 131 KB | Application Note | |
| PDF 180 KB | Application Note | |
| PDF 160 KB | Application Note | |
| PDF 120 KB | Application Note | |
| PDF 143 KB | Application Note | |
| PDF 565 KB | Application Note | |
| PDF 136 KB | Application Note | |
| PDF 202 KB | Application Note | |
| PDF 438 KB | Application Note | |
| PDF 108 KB | Application Note | |
28 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas IC Toolbox (RICBox) The Renesas IC Toolbox (RICBox) software platform enables customers to configure Renesas devices on evaluation kits when attached to the computer running the software.
|
Software Package | Renesas |
1 item
|
||
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table

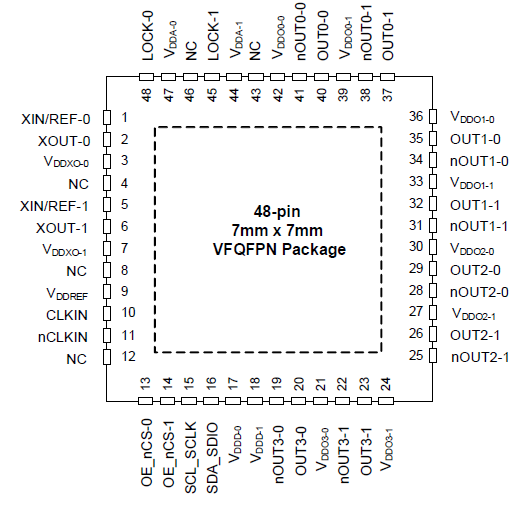

| VFQFPN | 48 | -40 to 85°C | I | Yes | Tray | ||
| VFQFPN | 48 | -40 to 85°C | I | Yes | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
Lab on the Cloud Demo for FemtoClock®2 Ultra-Low Phase Noise Synthesizer and Jitter Attenuator
Demonstration of Renesas’ Lab on the Cloud virtual environment for FemtoClock®2 ultra-low phase noise synthesizer and jitter attenuator.
