Clocks & Timing

Overview

The 932SQ420 is an Intel CK420BQ main clock synthesizer for Romley-generation and newer Intel-based server platforms. The 932SQ420 is driven with a 25 MHz crystal for maximum performance. It generates CPU outputs of 100 or 133.33 MHz.

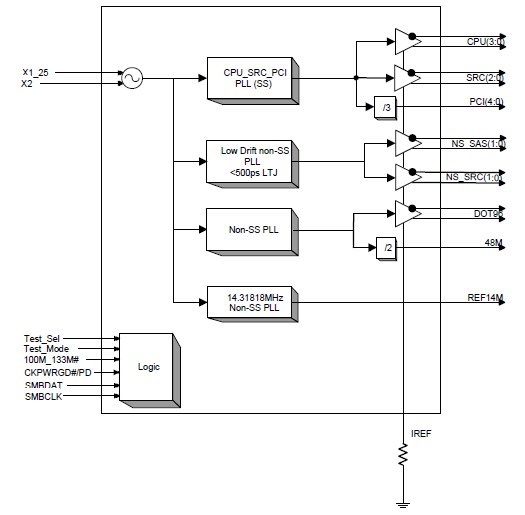

932SQ420 - Block Diagram

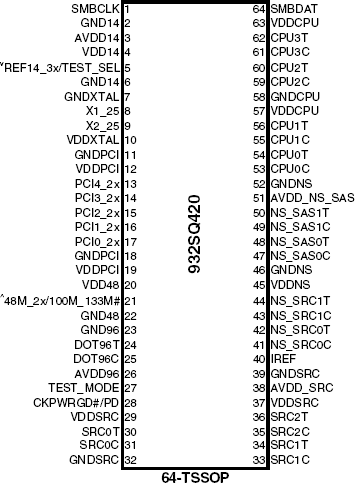

932SQ420D - Pinout
932SQ420 - Block Diagram
932SQ420D - Pinout
  • 4 - HCSL CPU outputs
  • 4 - HCSL Non-Spread SAS/SRC outputs
  • 3 - HCSL SRC outputs
  • 1 - HCSL DOT96 output
  • 1 - 3.3V 48M output
  • 5 - 3.3V PCI outputs
  • 1 - 3.3V 14.318M output
  • Phase jitter: PCIe Gen3 < 1ps rms
  • Phase jitter: PCIe Gen2 < 3.1ps rms
  • Phase jitter: PCIe Gen1 < 86ps peak to peak
  • Phase jitter: QPI 9.6GT/s < 0.2ps rms
  • Phase jitter: SAS <1.3ps rms64-TSSOP/QFN Package
