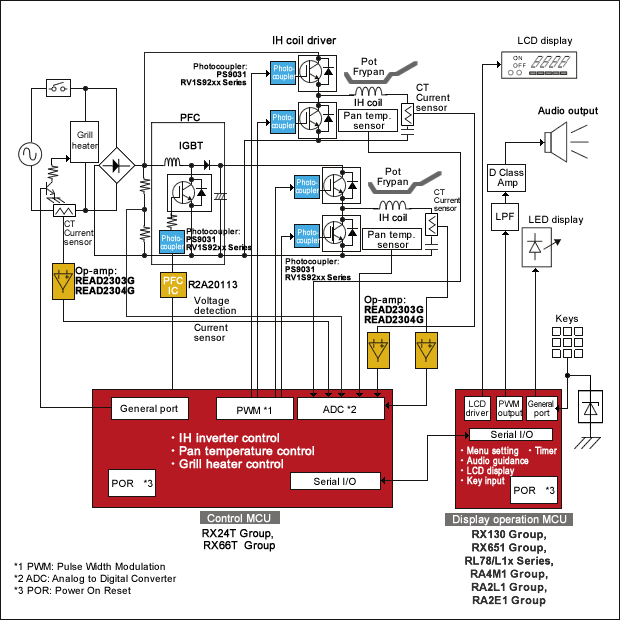

Renesas has a varied lineup of products suitable for IH cooker application. The RX24T Group and the RX66T Group are for the control MCUs, the RX651 Group, RA2L1 Group, RA4M1 Group and the RL78/L1x Series are for the display operation MCUs and RX130 Group is for capacitive touch-key MCUs. These MCUs provide IH control with improved performance, reduced power consumption, and lower cost.
Related Products
| Block | Semiconductor Device | Recommended Products | Features |
|---|---|---|---|
| Control MCU | MCU | RX24T Group RX66T Group |
32-bit MCU including on-chip FPU enable to drive two motors simultaneously RXv3 Core, Motor specialized specifications (max.4 motors) |
| HMI MCU | MCU | RX130 Group | Enhanced Capacitive Touch key function, 5V operation |
| RX651 Group | Large-capacity RAM, Connectivity (Ethernet, USB), HMI (LCD), Security, Motor | ||
| RL78/L1x Series | 16-bit MCU, Segment LCD controller/driver | ||
| RA4M1 Group | Arm Cortex-M4 with LCD Controller and Capacitive Touch for HMI | ||
| RA2L1 Group RA2E1 Group |
Arm Cortex-M23 core, 5V operation, System Control, Capacitive Touch, Safety | ||
| PFC Power Supply | PFC IC | R2A20114B R2A20112ASP |
Continuous conduction mode interleaving Critical conduction mode interleaving |
| Sensor | CMOS Op-amp | READ2303G READ2304G |
Full range input/output, high slew rate Low power consumption, high slew rate |
| IGBT Gate Driver | Photocoupler (IGBT drive) | PS9031 RV1S92xxSeries |
High isolation voltage (5kVr.m.s.), 2.5A output High CMR (CMR.≧50kV/ µs), Optimal for IPM drive |
