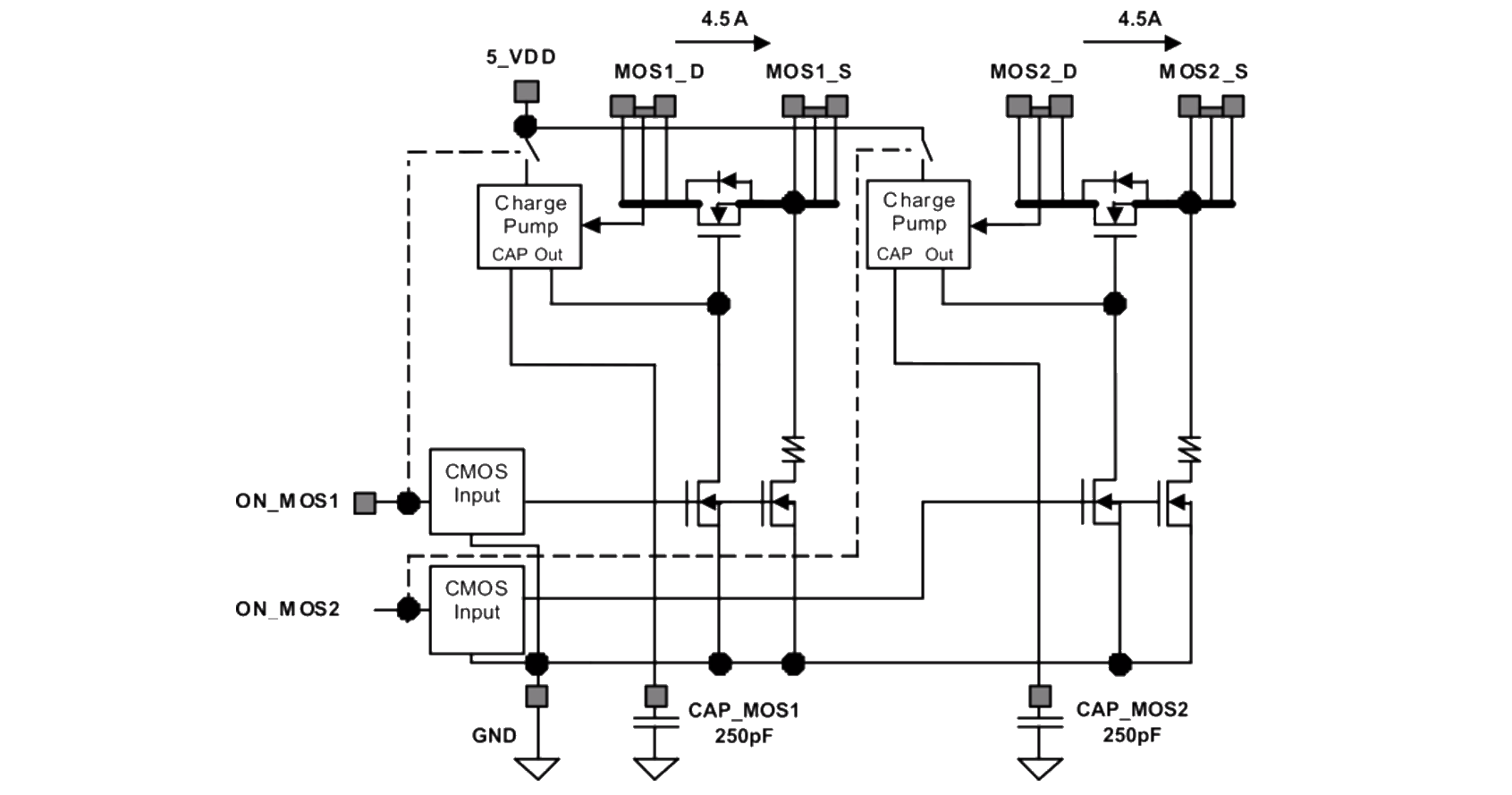

The SLG59M1527V is designed for load switching applications. The part comes with two 4.5 A rated MOSFETs switched on by two ON control pins. Each MOSFETs turn on time is independently adjusted by an external capacitor.


  • Two independent power switches in a single package
  • Power supply: 2.5 V ≤ VDD ≤ 5.5 V
  • Input voltage range: 0.9 V ≤ VD ≤ VDD
  • 14.5 mΩ RDSON while supporting 4.5 A per channel
  • Output voltage slew-rate control by external capacitor
  • Over-temperature protection
  • Output discharge circuitry
  • Footprint-compatible ordering option




  • Ideal for switching ON and OFF S0 +5.0 and 3.3 V power rails with associated support circuitry discharges
  • Ideal for switching ON and OFF power rails 5 V or less
  • Can use either channel up to 4.5 A with combined maximum current of 8.5 A
  • Maximum load capacitance of 1000 μF for each Channel Source terminal
