Power & Power Management

Renesas Smart Power Stage (SPS) modules have integrated high accuracy current and temperature monitors that can be fed back to the controller and doubler to complete a multiphase DC/DC system. They simplify design and increase performance by eliminating the DCR sensing network and associated thermal compensation.

Product Selection Table

    Processing table
    PLP
    Output Current (Max) [Rail 1] (A)
    Input Voltage (Min) (V)
    Input Voltage (Max) (V)
    Bias Voltage Range (V)
    Switching Frequency (KHz)
    Qualification Level
    Lead Count (#)
    Pkg. Type
    Part Number
    ISL99227
    Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Temperature Monitors    		 N/A 60 4.5 18 5 2 Standard 32 PQFN
    ISL99227B
    Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Temperature Monitors    		 N/A 60 4.5 18 5 2 Standard 32 PQFN

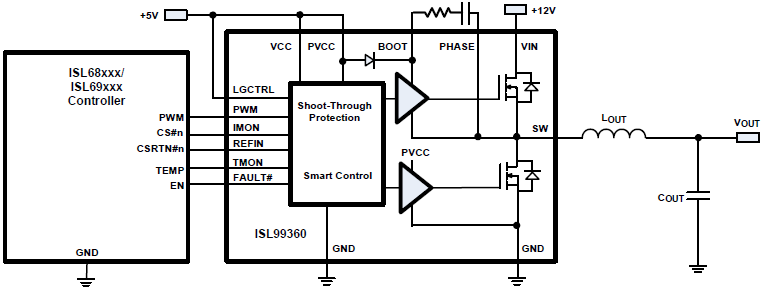

    ISL99360
    Smart Power Stage (SPS) with Integrated High Accuracy Current and Temperature Monitors    		 2033 Dec 60 3 16 3.135 - 3.465, 4.75 - 5.25 1.25 Standard 32 PQFN
    ISL99360B
    Smart Power Stage (SPS) with Integrated High Accuracy Current and Temperature Monitors    		 2033 Dec 60 3 16 3.135 - 3.465, 4.75 - 5.25 1.25 Standard 32 PQFN
    ISL99380BR5935
    80A Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Temperature Monitors    		 N/A 80 3 16 4.75 - 5.25, 3.135 - 3.465 1.25 Standard 39 PQFN
    ISL99380R5935
    80A Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Temperature Monitors    		 N/A 80 3 16 4.75 - 5.25, 3.135 - 3.465 1.25 Standard 39 PQFN
    ISL99390BR5935
    90A Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Temperature Monitors    		 N/A 90 3 16 4.75 - 5.25, 3.135 - 3.465 1.25 Standard 39 PQFN

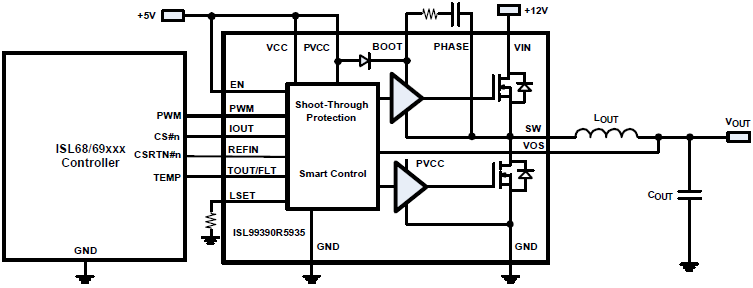

    ISL99390R5935
    90A Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Temperature Monitors    		 N/A 90 3 16 4.75 - 5.25, 3.135 - 3.465 1.25 Standard 39 PQFN
    ISL99392BR5935
    90A Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Master or Individual Temperature Monitors    		 N/A 90 3 16 3.135 - 3.465 1.25 Standard 39 PQFN
    ISL99392R5935
    90A Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Master or Individual Temperature Monitors    		 N/A 90 3 16 3.135 - 3.465 1.25 Standard 39 PQFN

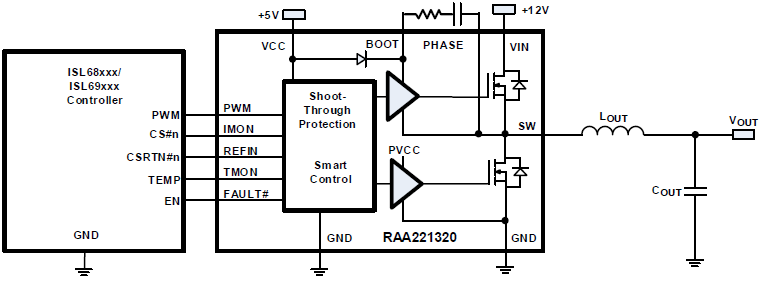

    RAA221320
    20A Smart Power Stage (SPS) with Integrated High Accuracy Current and Temperature Monitors    		 N/A 20 3 16 3.135 - 3.465 1.5 Standard 25 PQFN

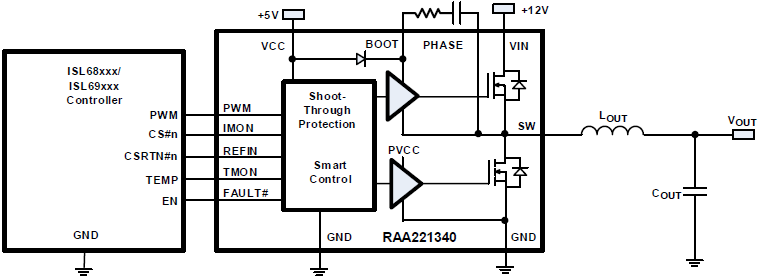

    RAA221340
    40A Smart Power Stage (SPS) with Integrated High Accuracy Current and Temperature Monitors    		 2033 Dec 40 3 16 3.135 - 3.465 1.5 Standard 25 PQFN
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Documentation

    Title
    		Type Date
    R16AN0006: Power Management Solution for Xilinx ZYNQ Ultrascale+ RFSoC Rev.1.00
    PDF 293 KB     		Application Note
    1 item
