Evaluation Board for Buck-Boost Battery Charger with USB-PD TCPC Interface
The RTKA489000DE0000BU evaluation board is designed to demonstrate the performance of the RAA489000 buck-boost battery charger. From the PROG pin to GND, the resistor...
Buck-Boost Configurable Battery Charger with USB Power Delivery and USB Type-C® Port Controller Interface (TCPCI)
Jump to Page Section:
Overview
Description
The RAA489000 is a digitally configurable buck-boost battery charger with USB-C® Port Controller (TCPC). The battery charging function supports Narrow Voltage Direct Charging (NVDC) and USB Power Delivery (PD) programmable power supply output supplies. The TCPC controller integrates TCPC PHY, CC-Logic, and VCONN switches. All RAA489000 blocks connected to the adapter/USB pin (CC1, CC2, VBUS) are protected from input overvoltage events up to 28V. The back-to-back NFET driver and VBUS self-discharge control further simplify the USB PD designs. The RAA489000 supports reverse buck, boost, or buck-boost operation to the adapter/USB port from 2- to 4-cell batteries to allow configurations to support USB PD output for Programmable Power Supply (PPS) ports. Thanks to the on-chip TCPC and Renesas advanced R3™ Technology, RAA489000 is fully compliant with USB PD Sink Fast Role Swap (FRS) spec by monitoring CC line and bringing VBUS voltage back to a safe range rapidly.
The RAA489000 has dual SMBus/I2C ports supporting simultaneous direct charger function programming and CC line traffic through TCPCI when operating with a USB-C Port Manager (TCPM) such as the Renesas R9A02G015 to form a complete USB PD compliant solution for single-port or multi-port applications. The RAA489000 battery charger supports all NFETs solution and supports system power from the adapter, battery, or a combination of both. The on-chip ADC monitors the charging input voltage/current, battery voltage, charging/discharging current, and the battery temperature. For Intel™ IMVP compliant systems, the RAA489000 includes PROCHOT#.

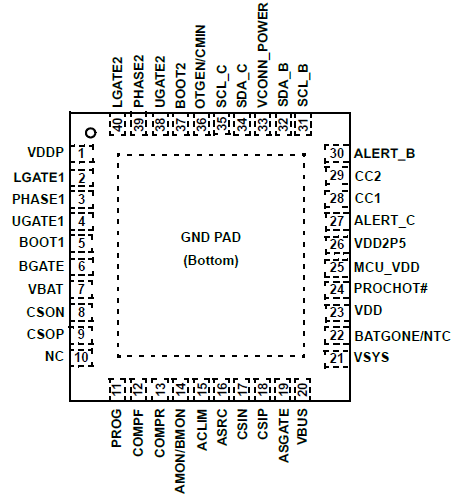

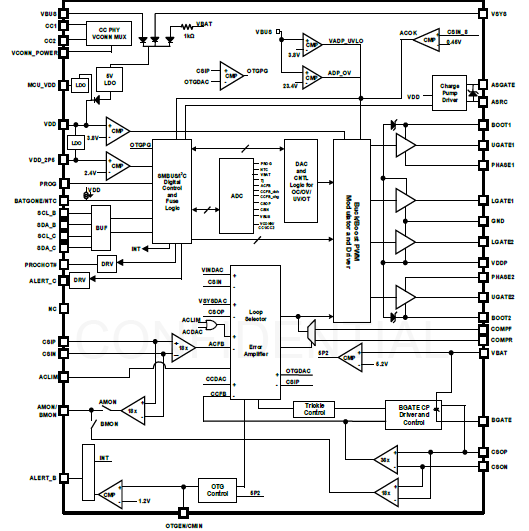

Features
- Buck-Boost NVDC charger for 2-, 3-, or 4-cell Li-ion batteries using all NFET transistors
- USB-C Port Controller (TCPC) with integrated TCPC PHY, CC-Logic
- Dual SMBus/I2C ports for charger programming and CC line traffic
- Internal 500mΩ VCONN MUX for up to 1.6A
- Input voltage range: 3.9V to 23.4V (no dead zone)
- System/battery output voltage: 3.9V to 18.304V
- 28V protection for CC1/CC2/VBUS
- Adapter Crash Prevention with adapter current and battery current regulation
- PROCHOT#, IMVP compliant
- Internal 8-bit ADC for charger operation telemetry
- Software configurable for DFP, UFP, or DRP
- USB-C PD Sink Fast Role Swap (FRS) and PPS support
- Pass-Through-Mode (PTM) in forward direction
- Battery Ship Mode - IC ultra-low power state
- Supports JEITA compliance autonomous charge
- Dynamic Voltage Compensation (DVC) support for multi-port charging applications
- USB Power Delivery (PD) 3.0 and Programmable Power Supply (PPS) Certified
- 5 × 5 40 Ld QFN package
- UL 2367, IEC 62368-1: File No. E520109
Comparison
Applications
Applications
- Multi-cell tablets, notebooks, ultrabook, power bank
- Multi-Port USB-C applications with batteries
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet - Short-form | PDF 152 KB | |
| Brochure | PDF 5.51 MB 日本語 | |
| Datasheet | PDF 6.66 MB | |
| Product Change Notice | PDF 145 KB | |
| Product Change Notice | PDF 130 KB | |
| Product Change Notice | PDF 202 KB | |
| Brochure | PDF 1.11 MB | |
| Product Change Notice | PDF 179 KB | |
| Product Change Notice | PDF 326 KB | |
| White Paper | PDF 617 KB 日本語 , 简体中文 | |
| White Paper | PDF 709 KB | |
| White Paper | PDF 555 KB 日本語 , 简体中文 | |
| Application Note | PDF 509 KB | |
| Application Note | PDF 397 KB | |
14 items
|
||
Design & Development
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
RAA489000ARGNP#AA0 Active Samples Available |
QFN | 40 | 3.9 to 18.304 | Tray | 490 | Get Samples, |
RAA489000ARGNP#HA0 Active Samples Available |
QFN | 40 | 3.9 to 18.305 | Reel | 6000 | Get Samples, |
RAA489000A3GNP#AA0 Active Samples Available |
QFN | 40 | 3.9 to 18.306 | Tray | 490 | Get Samples, |
RAA489000A3GNP#HA0 Active Samples Available |
QFN | 40 | 3.9 to 18.307 | Reel | 6000 | Get Samples, |
