Overview

Description

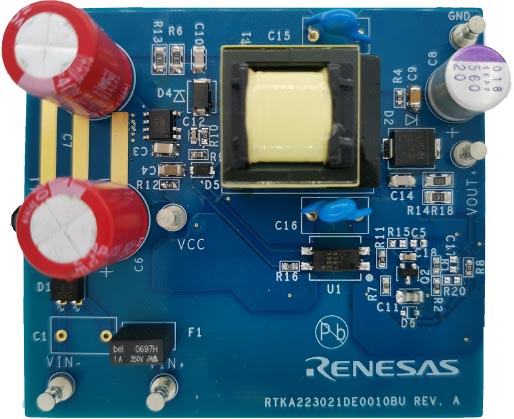

The RAA223021 evaluation board (RTKA223021DE0010BU) is a high voltage flyback converter that is designed to demonstrate a low-cost high performance isolated AC/DC convertor. It operates from a universal input of 85VAC to 265VAC and has a 12V output capable of up to 1A of load current. The board has built-in overcurrent, short-circuit, input brownout and over-temperature protection, and is designed on a double-sided Printed Circuit Board (PCB) with full-wave input rectification.

Features

  • Universal input
  • EMI compliance for EN55022/CISPR22
  • Standby power less than 50mW
  • No audible noise


Applications

Applications

  • Home appliances
  • Home automation, IoT, and sensors
  • Metering and Industry control
  • Bias power
