Overview

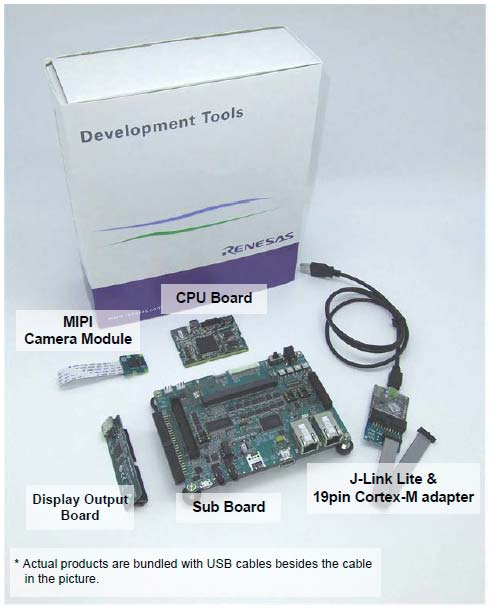

The RZ/A2M Evaluation Board Kit is a best evaluation board kit to evaluate RZ/A2M. MIPI camera module, Display Output Board for display connection and on-chip debugging emulator (Segger J-Link Lite) are included, so you can start evaluation immediately after opening. Please feel the performance and function of RZ/A2M with this product by all means.

The TFT board which can be connected to RZ/A2M Evaluation Board Kit(RTK7921053S00000BE) can be purchased.
Regarding the TFT board, please check RSK+RZA1H RSK TFT Application Board Application Note (PDF)

Get Started Using RZ/A2M (RZ/A Start-up page)

RZ/A2M Evaluation Kit
RZ/A2M Evaluation Board Kit
RZ/A2M Evaluation Kit
RZ/A2M Evaluation Board Kit
  • On-board device: RZ/A2M (R7S921053VCBG: with DRP function, without encryption function, internal RAM 4MB) Evaluation of DRP (Dynamically Reconfigurable Processor) is possible.
  • MIPI Camera Module (MIPI CSI) is bundled and image recognition processing etc. can be used with images input with MIPI camera.
  • HyperMCP (Multi-chip package), in which HyperFlash* and HyperRAM* are installed in one package, is mounted. HyperFlash* and HyperRAM* can be evaluated.
  • A Display Output Board is included and the graphic output is possible by connecting it to the external display.
  • It is possible to evaluate 2ch Ethernet communication.
  • Other peripheral functions such as SDHI and USB can also be evaluated.
  • Allows for safe and secure connection to the AWS cloud.
    * HyperFlash* and HyperRAM* are trademarks of Cypress Semiconductor Corporation of the U.S.
[RZ/A MPU] Silex SX-SDMAC with Bluetooth SDIO Wi-Fi Module
[RZ/A Series] AP Memory Octal SPI PSRAM Solutions
Title Category Buy/Sample
RZ/A2M
Image Processing RTOS MPU with DRP and 4MB of On-chip RAM
 RZ 32 & 64-bit MPUs, MCU Selection Table Buy/Quote

Documentation

Title Type Date
RZ/A2M Evaluation Board Kit Quick Start Guide
PDF598 KB日本語
Manual - Development Tools
RZ/A2M Group RZ/A2M 2D Barcode Package V1.12
PDF838 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M IRIS Package V1.11
PDF845 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M SDIO Wi-Fi Package (IAR Embedded Workbench for ARM) V1.03
PDF357 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M SDIO Wi-Fi Package V3.06
PDF586 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Simple Applications Package (ARM DS) V4.30
PDF363 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Simple Applications Package (IAR Embedded Workbench for ARM) V5.30
PDF380 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Core Package V8.50
PDF406 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Simple Applications Package V8.50
PDF408 KB日本語
Related Files:
Application Note
RZ/A2M Group Example of Booting from Serial Flash Memory
PDF1.08 MB日本語
Application Note
RZ/A2M Group RZ/A2M Software Core Package V8.10
PDF271 KB日本語
Related Files:
Application Note
RZ/A2M Group I/O definition header file (iodefine.h)
PDF60 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Software Core Package V7.00
PDF265 KB日本語
Related Files:
Application Note
RZ/A2M Group Example of booting from HyperFlash™ using HyperBus™ controller
PDF735 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Software Core Package V6.00
PDF259 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Software Core Package V5.00
PDF282 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Software Core Package V4.00
PDF227 KB日本語
Related Files:
Application Note
RZ/A2M Group RZ/A2M Software Core Package V3.00
PDF220 KB日本語
Related Files:
Application Note
RZ/A2M Group Software Core Package
PDF378 KB日本語
Related Files:
Application Note
RZ/A2M CPU Board User's Manual
PDF2.47 MB日本語
Manual - Development Tools
RZ/A2M Sub Board User's Manual
PDF4.06 MB日本語
Manual - Development Tools
RZ/A2M Group RZ/A2M Software Package Quick Start Guide
PDF2.88 MB日本語
Quick Start Guide
RZ/A2M Group RZ/A2M Software Package for GR-MANGO Quick Start Guide
PDF1.60 MB日本語
Quick Start Guide
Getting Started with the Renesas RZ/A2M Evaluation Board Kit ( R01QS0038EJ0103 )
PDF1.07 MB
Quick Start Guide
RZ/A2M Evaluation Board Kit Release Note
PDF23 KB日本語
Release Note
[Notes] RZ/A2M Evaluation Board Kit
PDF247 KB日本語
Tool News - Note

Design & Development

Software & Tools

RZ/A2M FreeRTOS™ Software PackageSoftware package for the RZ/A2M that supports DRP(Dynamically Reconfigurable Processor), camera input, LCD output, and image adjustment. Downloads:
Getting Started with the Renesas RZ/A2M Evaluation Board Kit ( R01QS0038EJ0103 )RZ/A2M Group RZ/A2M Software Core Package V6.00 Rev.6.00 - Sample CodeRZ/A2M Group RZ/A2M Software Core Package V5.00 Rev.5.00 - Sample CodeRZ/A2M Group RZ/A2M SDIO Wi-Fi Package V3.06RZ/A2M Group RZ/A2M IRIS Package V1.11
RZ/A2M Group RZ/A2M Simple Applications Package V8.50RZ/A2M Group RZ/A2M 2D Barcode Package V1.12RZ/A2M Group RZ/A2M Simple Applications Package V8.50RZ/A2M Group RZ/A2M 2D Barcode Package V1.12RZ/A2M Group RZ/A2M IRIS Package V1.11RZ/A2M Group RZ/A2M Software Core Package V8.10RZ/A2M Group RZ/A2M Software Core Package V8.10 Rev.8.10 - Sample CodeRZ/A2M Group RZ/A2M SDIO Wi-Fi Package V3.06RZ/A2M Group RZ/A2M Simple Applications Package (IAR Embedded Workbench for ARM) V5.00 Rev.5.00 - Sample CodeRZ/A2M Group RZ/A2M Simple Applications Package (Arm DS) V4.00 Rev.4.00 - Sample CodeRZ/A2M Group RZ/A2M Software Package Quick Start GuideRZ/A2M Group RZ/A2M Simple Applications Package (IAR Embedded Workbench for ARM) V5.30RZ/A2M Group RZ/A2M Simple Applications Package (ARM DS) V4.30RZ/A2M Group RZ/A2M Simple Applications Package (ARM DS) V4.30RZ/A2M Group RZ/A2M SDIO Wi-Fi Package (IAR Embedded Workbench for ARM) V1.03RZ/A2M Group RZ/A2M SDIO Wi-Fi Package (IAR Embedded Workbench for ARM) V1.03RZ/A2M Group RZ/A2M Simple Applications Package (IAR Embedded Workbench for ARM) V5.30RZ/A2M Group RZ/A2M Core Package V8.50RZ/A2M Group RZ/A2M Core Package V8.50RZ/A2M Group RZ/A2M Software Package for GR-MANGO Quick Start Guide
 Software Package Renesas

Software Downloads

Title Type Date
RZ/A2M Evaluation Board Kit inf File for USB to Serial Conversion IC
ZIP5 KB日本語
Software & Tools - Other

Sample Code

Title Type Date
RZ/A2M Group RZ/A2M 2D Barcode Package V1.12
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
ZIP42.95 MB日本語
Related Files:
Application: Industrial, IoT Applications
Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M IRIS Package V1.11
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
ZIP43.21 MB日本語
Related Files:
Application: Industrial, IoT Applications
Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M SDIO Wi-Fi Package (IAR Embedded Workbench for ARM) V1.03
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
ZIP78.37 MB日本語
Related Files:
Application: IoT Applications, Industrial
Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
Compiler: GNU ARM Embedded
IDE: IAR EW for Synergy
Sample Code
RZ/A2M Group RZ/A2M SDIO Wi-Fi Package V3.06
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
ZIP78.36 MB日本語
Related Files:
Application: Industrial, IoT Applications
Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M Simple Applications Package (ARM DS) V4.30
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
ZIP256.63 MB日本語
Related Files:
Application: IoT Applications, Industrial
Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
Compiler: ARMCC
IDE: ARM DS
Sample Code
RZ/A2M Group RZ/A2M Simple Applications Package (IAR Embedded Workbench for ARM) V5.30
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
ZIP265.64 MB日本語
Related Files:
Application: IoT Applications, Industrial
Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
Compiler: GNU ARM Embedded
IDE: IAR EW for Synergy
Sample Code
RZ/A2M Group RZ/A2M Core Package V8.50
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
ZIP53.19 MB日本語
Related Files:
Application: Industrial, IoT Applications
Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M Simple Applications Package V8.50
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
ZIP462.02 MB日本語
Related Files:
Application: Industrial, IoT Applications
Function: Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group Example of Booting from Serial Flash Memory Rev.1.20 - Sample Code
ZIP8.23 MB
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M Simple Applications Package (Arm DS) V4.00 Rev.4.00 - Sample Code
ZIP249.24 MB
Compiler: ARMCC
IDE: ARM DS
Sample Code
RZ/A2M Group RZ/A2M Simple Applications Package (IAR Embedded Workbench for ARM) V5.00 Rev.5.00 - Sample Code
ZIP251.75 MB
Compiler: ICCARM
IDE: IAR EWARM
Sample Code
RZ/A2M Group RZ/A2M Software Core Package V8.10 Rev.8.10 - Sample Code
ZIP51.96 MB
Related Files:
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group Example of booting from HyperFlash™ using HyperBus™ controller Rev.1.00 - Sample Code
ZIP10.42 MB
Related Files:
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M Software Core Package V6.00 Rev.6.00 - Sample Code
ZIP44.50 MB
Related Files:
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M Software Core Package V5.00 Rev.5.00 - Sample Code
ZIP40.56 MB
Related Files:
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M Software Core Package V4.00 Rev.4.00 - Sample Code
ZIP34.54 MB
Related Files:
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group RZ/A2M Software Core Package V3.00 Rev.3.00 - Sample Code
ZIP38.99 MB
Related Files:
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code
RZ/A2M Group Software Core Package Rev.2.00 - Sample Code
ZIP24.82 MB
Related Files:
Compiler: GNU ARM Embedded
IDE: e2 studio
Sample Code

Product Options

    Processing table
    Part Number
    Description
    Buy / Sample
    RTK7921053S00000BE
    play_circleActive
    memory
    		 RZ/A2M Evaluation Board Kit
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
    Lab on the Cloud

    Lab on the Cloud

    Renesas' Lab on the Cloud is an online environment where Renesas solutions, including popular evaluation boards, winning combinations and software, are hosted in a remote lab that customers access and test online.

    2D Barcode and Face Recognition Evaluation Kit

    A camera solution using the RZ/A2M's high-speed image processing and DRP technology for detecting faces and barcodes, supports an on-board emulator for fast development.

    Start Live Test
