Safe and Secure High-end Microcontroller for Powertrain
Jump to Page Section:
Overview
Description
The RH850/E1L Safe and secure high-end microcontroller for powertrain (function-reduced version of RH850/E1M-S) with many built-in functions for realizing functional safety (ISO 26262). It is a function-reduced version of the RH850/E1M-S. The RH850/E1L microcontroller has a maximum operating frequency of 240MHz. With two A/D converters (SAR and delta-sigma), a digital filter engine, an advanced timer unit (ATU-IV), and more, this MCU realizes high-precision complex powertrain control. Many functions for realizing functional safety (ISO 26262) are built in, helping to simplify the certification process.
Features

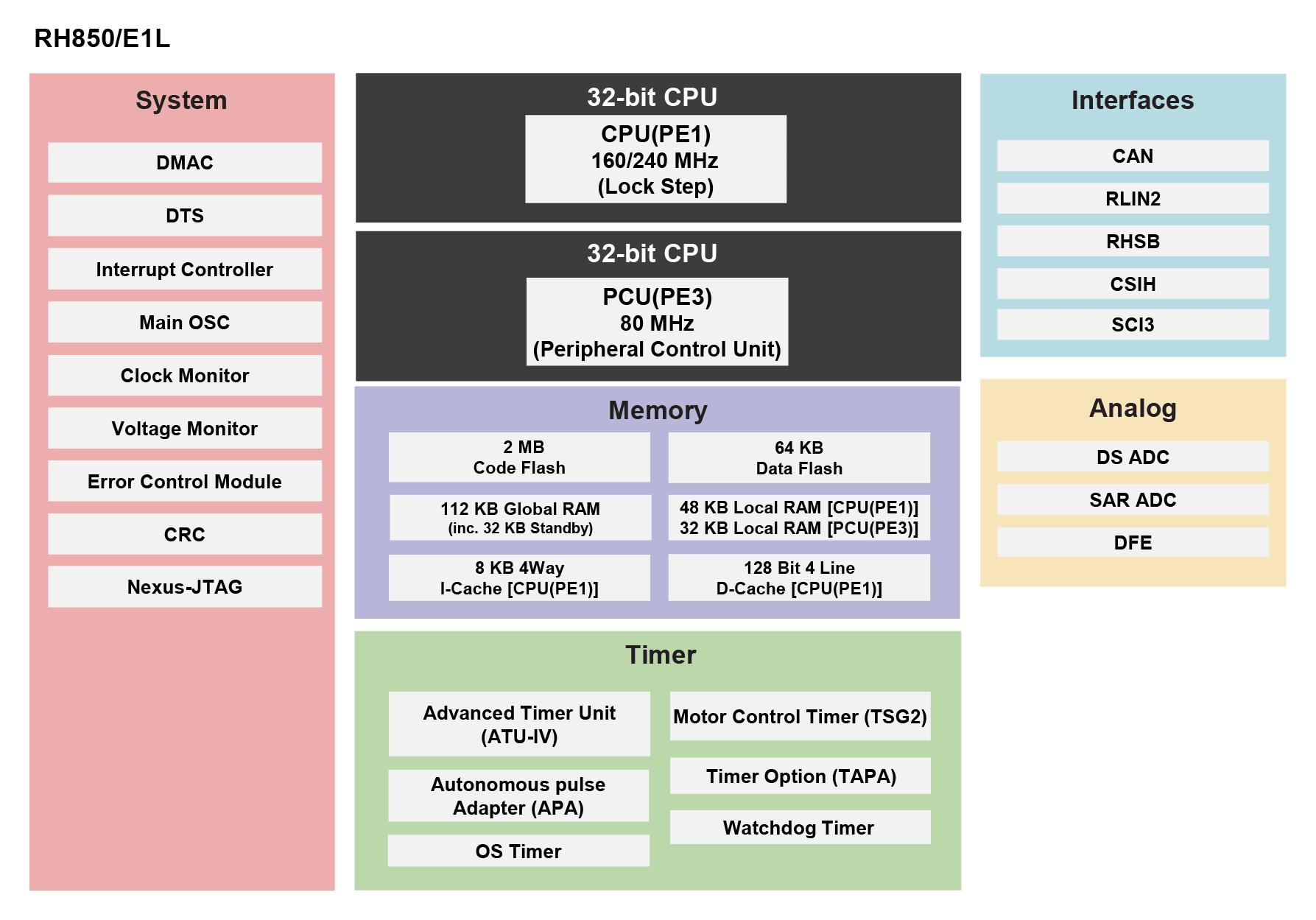

- CPU Core:
- 160/240MHz core x1 (Inc. Lockstep dual core x1)
- 80MHz core x1 (Peripheral Control core x1)
- FPU x1
- Clock:
- Main Oscillator: 20 MHz,
- PLL with selectable SSCG mode: 240/160 MHz
- PLL without SSCG mode: 80 MHz
- On-chip low-speed oscillator: 240 kHz
- Data transfer function : DMAC / DTS
- Timers : Engine Control Timer (ATU-IV), Autonomous pulse adapter (APA), Motor Control Timer (TSG2), Timer Option (TAPA)
- Analog:
- SAR A/D Converter 36 ch, 2 modules
- Delta-Sigma A/D Converter 2 ch, 2 modules
- Communication interfaces :
- Serial Communication Interface (SCI3) 4 ch
- Clock Synchronous Serial Interface(CSIH) 3 ch
- High-Speed Bus (RHSB) 1 ch
- LIN/Master (RLIN2) 1 ch, CAN 4 ch
- Digital Filter Engine (DFE) 16 ch, 1 units
- Power Supply Voltage:
- 1.15 - 1.35 V (CPU core);
- 3.0 - 3.6 V / 4.5 - 5.5 V (I/O, System, AD converter)
- Temperature: Tj= -40 - +150°C
Comparison
Applications
Applications
- Automotive Powertrain
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware | PDF 36.56 MB 日本語 | |
| Flyer | PDF 340 KB 日本語 , 简体中文 | |
| Application Note | PDF 1.29 MB | |
| Application Note | PDF 763 KB | |
| Technical Update | PDF 2.11 MB | |
| Application Note | PDF 319 KB | |
| Technical Update | PDF 417 KB 日本語 | |
| Application Note | PDF 603 KB | |
| Product Reliability Report | PDF 615 KB | |
| Product Reliability Report | PDF 615 KB | |
| Technical Update | PDF 6.10 MB 日本語 | |
| Release Note | PDF 250 KB | |
| Application Note | PDF 1.17 MB 日本語 | |
| Flyer | PDF 417 KB 日本語 , 简体中文 | |
| Technical Update | PDF 469 KB 日本語 | |
| Application Note | PDF 1.81 MB | |
| Technical Update | PDF 416 KB 日本語 | |
| Other | PDF 10.28 MB 日本語 , 简体中文 | |
| Technical Update | PDF 117 KB | |
| Manual - Software | PDF 1.96 MB 日本語 | |
| Guide | PDF 261 KB | |
| Application Note | PDF 2.09 MB 日本語 | |
| Technical Update | PDF 231 KB | |
| General Reliability Literature | PDF 14.70 MB 日本語 | |
| Manual - Software | PDF 3.00 MB 日本語 | |
| Flyer | PDF 900 KB | |
| Release Note | PDF 201 KB 日本語 | |
| Brochure | PDF 372 KB 日本語 | |
| Application Note | PDF 410 KB | |
| Technical Update | PDF 3.10 MB 日本語 | |
| Flyer | PDF 2.01 MB | |
|
31 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]
|
Emulator | Renesas |
| e² studio - information for RH850 Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| Green Hills MULTI Device-Support-Packages Green Hills MULTI Device-Support-Packages include all device specific files to be used with the MULTI IDE.
|
IDE and Coding Tool | Renesas |
4 items
|
||
Software Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Evaluation Software | ZIP 1.73 MB | |
| Upgrade - IDE | ZIP 89.87 MB 日本語 | |
| Upgrade - IDE | ZIP 89.88 MB 日本語 | |
| Upgrade - IDE | ZIP 14.18 MB 日本語 | |
| Upgrade - Programmer | ZIP 289 KB 日本語 | |
| Device File - Partner Tool | ZIP 7.19 MB | |
| Device File - Partner Tool | ZIP 11.57 MB | |
| Upgrade - Programmer | ZIP 7 KB 日本語 | |
| Upgrade - OS | ZIP 17.12 MB 日本語 | |
| Upgrade - Programmer | ZIP 6 KB 日本語 | |
| Upgrade - IDE | ZIP 5.07 MB 日本語 | |
| Upgrade - IDE | ZIP 3.13 MB 日本語 | |
| Software & Tools - Other | ZIP 1.21 MB 日本語 | |
| Upgrade - Programmer | ZIP 162 KB 日本語 | |
14 items
|
||
Sample Code
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 1 + 1 | 240 | 192 | 2048 | 64 | BGA252 | -40 to 150°C | 36 | Yes | 5 | Yes | 4 | No | 3 | 1 | 16-bit x 28-ch, 32-bit x 75-ch | |||||||
| 1 + 1 | 240 | 192 | 2048 | 64 | QFP144 | -40 to 150°C | 30 | Yes | 5 | Yes | 4 | No | 3 | 1 | 16-bit x 28-ch, 32-bit x 75-ch | |||||||
| 1 + 1 | 240 | 192 | 2048 | 64 | QFP176 | -40 to 150°C | 36 | Yes | 5 | Yes | 4 | No | 3 | 1 | 16-bit x 28-ch, 32-bit x 75-ch | |||||||
| 1 + 1 | 160 | 192 | 2048 | 64 | QFP144 | -40 to 150°C | 30 | Yes | 5 | Yes | 4 | No | 3 | 1 | 16-bit x 28-ch, 32-bit x 75-ch | |||||||
| 1 + 1 | 160 | 192 | 2048 | 64 | QFP176 | -40 to 150°C | 36 | Yes | 5 | No | 4 | No | 3 | 1 | 16-bit x 28-ch, 32-bit x 75-ch | |||||||
| 1 + 1 | 240 | 160 | 2048 | 64 | FBGA | -40 to 150°C | No | 5 | No | 4 | No |
