3.3V CMOS 16-Bit Buffer/Driver with 3-State Outputs, 5.0V Tolerant I/O
Jump to Page Section:
Overview
Description

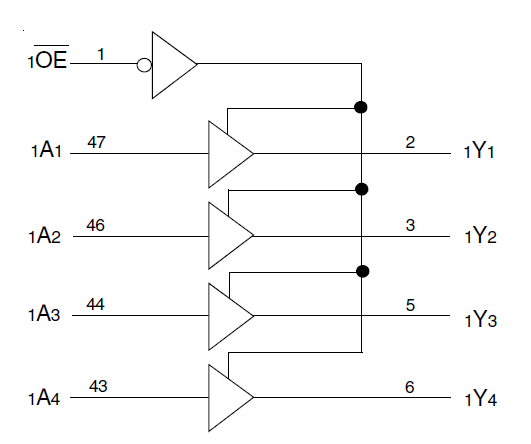

The 74LVC16244A 16-bit buffer/driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters and can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. All pins of the 74LVC16244A can be driven from either 3.3V or 5V devices which allows the use of the device as a translator in a mixed 3.3V/5V supply system. The 74LVC16244A operates at -40C to +85C
Features
- Typical tSK(o) (Output Skew)
- ESD > 2000V per MIL-STD-883, Method 3015
- > 200V using machine model (C = 200pF, R = 0)
- VCC = 3.3V ± 0.3V, Normal Range
- VCC = 2.7V to 3.6V, Extended Range
- CMOS power levels (0.4 uW typ. static)
- All inputs, outputs, and I/O are 5V tolerant
- Supports hot insertion
- Available in 48 pin SSOP and TSSOP packages
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 179 KB | Datasheet | ||
| PDF 238 KB | Application Note | ||
| PDF 938 KB | End Of Life Notice | ||
| PDF 909 KB | End Of Life Notice | ||
| PDF 157 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 596 KB | Product Change Notice | ||
| PDF 544 KB | Product Change Notice | ||
| PDF 333 KB | Product Change Notice | ||
| PDF 35 KB | Product Change Notice | ||
| PDF 291 KB | Product Change Notice | ||
| PDF 484 KB | Product Change Notice | ||
| PDF 24 KB | Product Change Notice | ||
| PDF 129 KB | Product Change Notice | ||
| PDF 201 KB | Product Change Notice | ||
| PDF 18 KB | Product Change Notice | ||
| PDF 38 KB | Product Change Notice | ||
| PDF 16 KB | Product Change Notice | ||
| PDF 47 KB | Product Change Notice | ||
| PDF 35 KB | Product Change Notice | ||
| PDF 22 KB | Product Change Notice | ||
| PDF 109 KB | Product Change Notice | ||
| PDF 116 KB | Product Change Notice | ||
| PDF 26 KB | Product Change Notice | ||
| PDF 130 KB | Product Change Notice | ||
| PDF 110 KB | Product Change Notice | ||
| PDF 48 KB | Product Change Notice | ||
| PDF 40 KB | Product Change Notice | ||
| PDF 27 KB | Product Change Notice | ||
| PDF 32 KB | Product Change Notice | ||
| PDF 274 KB | Product Change Notice | ||
| PDF 12 KB | Product Change Notice | ||
| PDF 44 KB | Product Change Notice | ||
34 items
|
|||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| TSSOP | 48 | C | Yes | Tube | Get Samples, | |
| TSSOP | 48 | C | Yes | Reel |
