Overview
Description

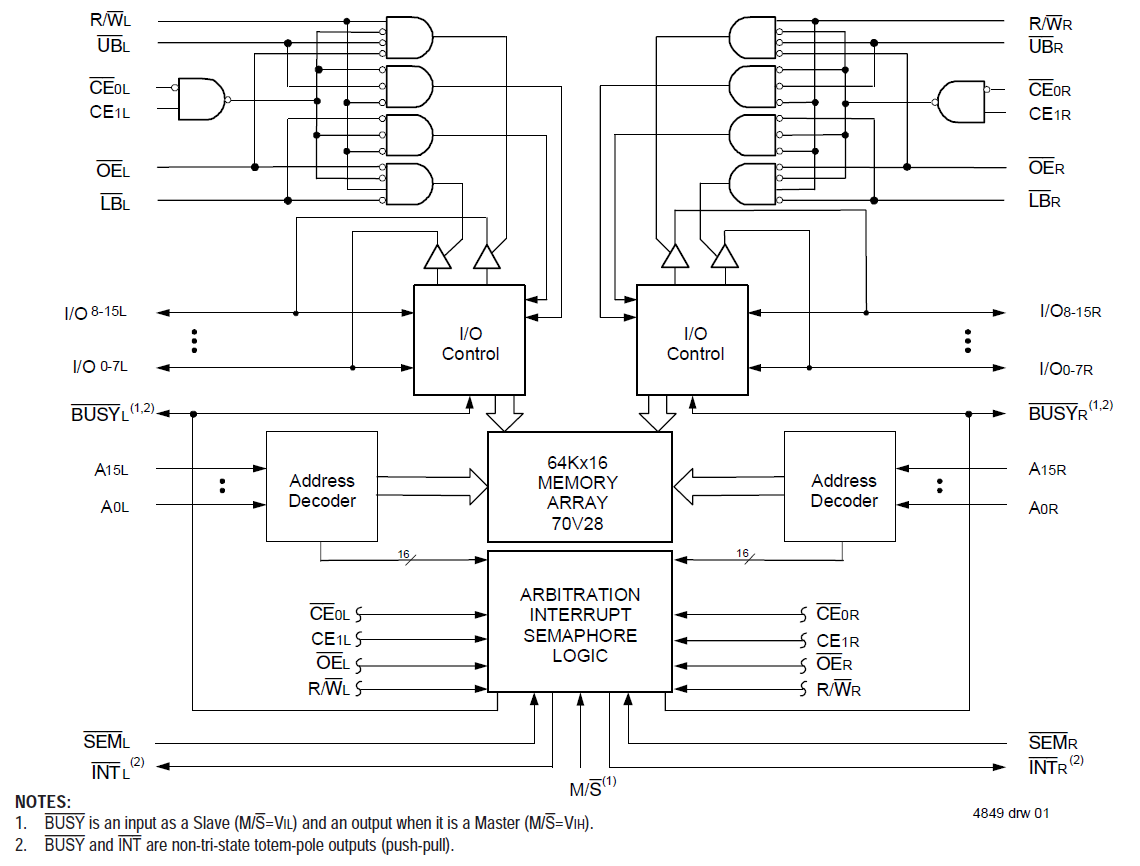

The 70V28 is a high-speed 64K x 16 Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or wider memory system applications resulting in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by the chip enables (either CE0 or CE1) permit the on-chip circuitry of each port to enter a very low standby power mode.
Features
- True Dual-Ported memory cells which allow simultaneous access of the same memory location
- Dual chip enables allow for depth expansion without external logic
- 70V28 easily expands data bus width to 32 bits or more
- Busy and Interrupt Flags
- On-chip port arbitration logic
- Full on-chip hardware support of semaphore signaling between ports
- Fully asynchronous operation from either port
- Separate upper-byte and lower-byte controls for multiplexed bus and bus matching compatibility
- LVTTL-compatible, single 3.3V (±0.3V) power supply
- Available in a 100-pin TQFP package
- Industrial temperature range (–40C to +85C) is available
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF369 KB
|
Datasheet
|
||
PDF129 KB
|
Application Note
|
||
PDF197 KB
|
Application Note
|
||
PDF182 KB
|
Application Note
|
||
PDF198 KB
|
Application Note
|
||
PDF156 KB
|
Application Note
|
||
PDF183 KB
|
Application Note
|
||
PDF97 KB
|
Application Note
|
||
PDF1.29 MB
|
End Of Life Notice
|
||
PDF1.22 MB
|
End Of Life Notice
|
||
PDF1.15 MB
|
End Of Life Notice
|
||
PDF645 KB
|
End Of Life Notice
|
||
PDF123 KB
|
Guide
|
||
PDF567 KB
|
Product Change Notice
|
||
PDF100 KB
|
Product Change Notice
|
||
PDF24 KB
|
Product Change Notice
|
||
PDF252 KB
|
Product Change Notice
|
||
PDF164 KB
|
Product Change Notice
|
||
PDF290 KB
|
Product Change Notice
|
||
PDF80 KB
|
Product Change Notice
|
||
PDF26 KB
|
Product Change Notice
|
||
PDF150 KB
|
Product Change Notice
|
||
PDF65 KB
|
Product Change Notice
|
||
PDF138 KB
|
Product Change Notice
|
||
PDF150 KB
|
Product Change Notice
|
||
PDF48 KB
|
Product Change Notice
|
||
PDF47 KB
|
Product Change Notice
|
||
PDF274 KB
|
Product Change Notice
|
||
PDF44 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|---|---|---|---|---|---|---|
| TQFP | 100 | C | Yes | Tray | Get Samples, | |
| TQFP | 100 | C | Yes | Reel | ||
| TQFP | 100 | I | Yes | Tray | Get Samples, | |
| TQFP | 100 | I | Yes | Reel |
