Clocks & Timing

Overview

The 843202I is a 2 output LVPECL Synthesizer optimized to generate Gigabit Ethernet and SONET reference clock frequencies and is a member of the family of high performance clock solutions from IDT. Using a 19.44MHz and 25MHz, 18pF parallel resonant crystal, 155.52MHz and 156.25MHz frequencies can be generated. The part also allows the use of a recovered clock at QB output. The 843202I uses IDT's FemtoClockTM low phase noise VCO technology and can achieve 1ps or lower typical RMS phase jitter. The 843202I is packaged in a 32-pin LQFP package.

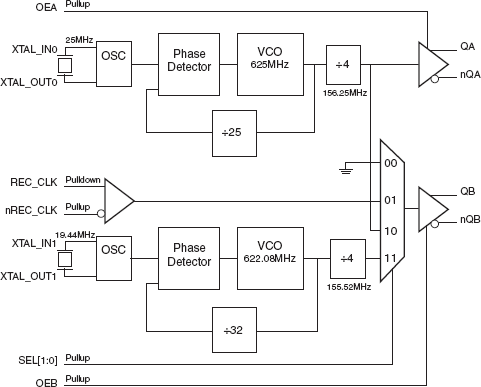

843202I - Block Diagram

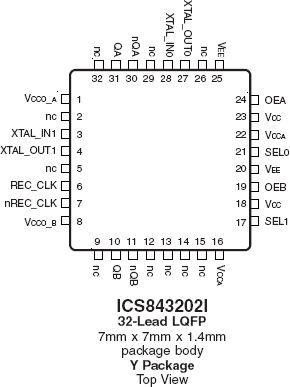

843202I - Pinout
843202I - Block Diagram
843202I - Pinout
  • Two 3.3V LVPECL outputs
  • Selectable crystal oscillator interface or one differential recovered clock inputs
  • Supports the following output frequencies: 155.52MHz and 156.25MHz
  • VCO range: 560MHz - 680MHz
  • RMS phase jitter @ 155.52MHz, using a 19.44MHz crystal (12kHz – 1.3MHz): 0.86ps (typical)
  • RMS phase jitter @ 156.25MHz, using a 25MHz crystal (1.875MHz –- 20MHz): 0.56ps (typical)
  • Full 3.3V supply mode
  • -40°C to 85°C ambient operating temperature
  • Available in lead-free (RoHS 6) package

Documentation

Title Type Date
843202I Datasheet
PDF340 KB
Datasheet
AN-805 Recommended Ferrite Beads
PDF91 KB
Application Note
AN-827 Application Relevance of Clock Jitter
PDF1.99 MB
Application Note
AN-828 Termination - LVPECL
PDF322 KB
Application Note
AN-831 The Crystal Load curve
PDF395 KB
Application Note
AN-844 Termination - AC Coupling Clock Receivers
PDF170 KB
Application Note
AN-842 Thermal Considerations in Package Design and Selection
PDF495 KB
Application Note
AN-840 Jitter Specifications for Timing Signals
PDF442 KB
Application Note
AN-838 Peak-to-Peak Jitter Calculations
PDF115 KB
Application Note
AN-839 RMS Phase Jitter
PDF233 KB
Application Note
AN-832 Timing Budget and Accuracy
PDF131 KB
Application Note
AN-834 Hot-Swap Recommendations
PDF153 KB
Application Note
AN-837 Overdriving the Crystal Interface
PDF133 KB
Application Note
AN-830 Quartz Crystal Drive Level
PDF143 KB
Application Note
AN-815 Understanding Jitter Units
PDF565 KB
Application Note
AN-802 Crystal-Measuring Oscillator Negative Resistance
PDF136 KB
Application Note
AN-801 Crystal-High Drive Level
PDF202 KB
Application Note
AN-806 Power Supply Noise Rejection
PDF438 KB
Application Note
AN-803 Crystal Timing Budget and Accuracy for Renesas Timing Clock Products
PDF108 KB
Application Note
PDN# : CQ-16-01 PRODUCT DISCONTINUANCE NOTICE
PDF552 KB
End Of Life Notice
IDT Clock Generation Overview
PDF1.83 MB
Overview
PCN# : A1602-01(R1) Add Greatek Taiwan as Alternate Assembly
PDF611 KB
Product Change Notice
PCN# : A1602-01 Add Greatek Taiwan as Alternate Assembly
PDF611 KB
Product Change Notice
PCN# : TB1504-01R1 Qty per Reel Standardization for Selective Packages
PDF95 KB
Product Change Notice
PCN# : TB1504-01 Qty per Reel Standardization for Selective Packages
PDF50 KB
Product Change Notice
PCN# : A1401-02 Alternate Copper Wire Assembly Site
PDF36 KB
Product Change Notice
PCN# : TB1303-01 Change of Carrier Tape for TQFP-32, TQFP-48
PDF472 KB
Product Change Notice

Design & Development

Software Downloads

Title Type Date
PDN# : CQ-16-01 PRODUCT DISCONTINUANCE NOTICE
PDF552 KB
End Of Life Notice

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Models

Title Type Date
843202I IBIS Model
ZIP36 KB
Model - IBIS

Product Options

    Processing table
    Part Number
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Buy / Sample
    843202AYILFT
    block_flippedObsolete
    memory
    view_in_ar
    		TQFP 32 I Yes Reel
    843202AYILF
    block_flippedObsolete
    memory
    view_in_ar
    		TQFP 32 I Yes Tray
