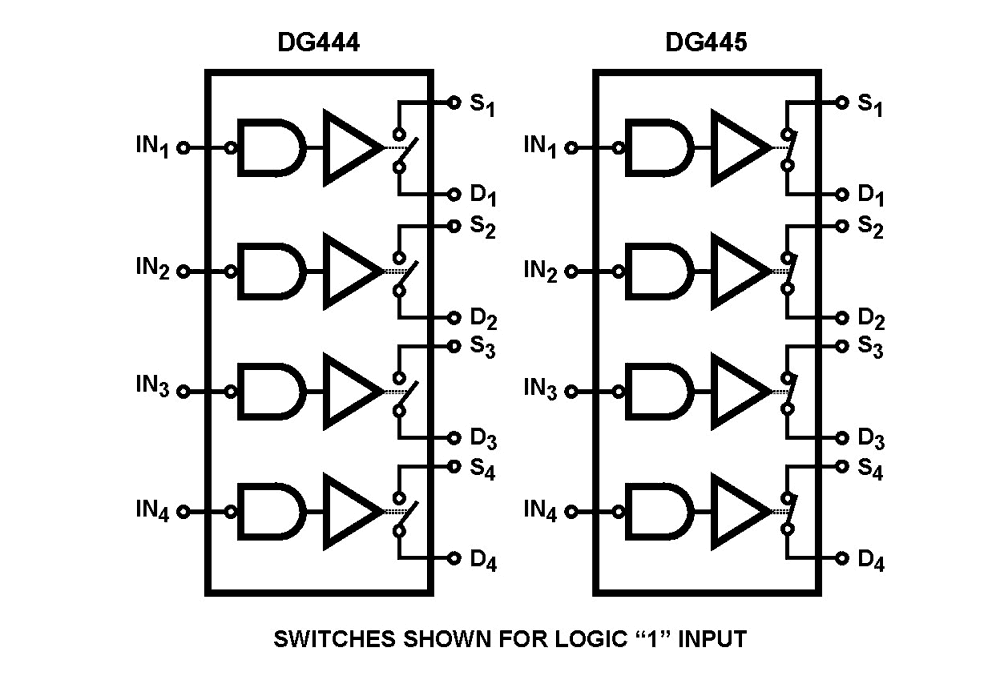

The DG444 and DG445 monolithic CMOS analog switches are drop-in replacements for the popular DG211 and DG212 series devices. They include four independent single pole single throw (SPST) analog switches and TTL and CMOS compatible digital inputs. These switches feature lower analog ON resistance (ON

Features

  • ON Resistance (Max) 85Ω
  • Low Power Consumption (PD) <35µW
  • Fast Switching Action
  • tON (Max) 250ns
  • tOFF (Max, DG444) 140ns
  • Low Charge Injection
  • Upgrade from DG211, DG212
  • TTL, CMOS Compatible
  • Single or Split Supply Operation
  • Pb-Free Plus Anneal Available (RoHS Compliant)

Applications

  • Audio Switching
  • Battery Operated Systems
  • Data Acquisition
  • Hi-Rel Systems
  • Sample and Hold Circuits
  • Communication Systems
  • Automatic Test Equipment

Product Options

Orderable Part ID Part Status Pkg. Type Carrier Type MOQ Buy Sample
Active TSSOP Tube 1920
Availability
Active TSSOP Reel 2500
Availability
Active SOICN Tube 1920
Availability
Active SOICN Reel 2500
Availability

Documentation & Downloads

Title Other Languages Type Format File Size Date
Datasheets & Errata
DG444, DG445 Datasheet Datasheet PDF 667 KB
Application Notes & White Papers
AN535: Design Considerations for a Data Acquisition System (DAS) Application Note PDF 843 KB
AN557: Recommended Test Procedures for Analog Switches Application Note PDF 468 KB
AN520: CMOS Analog Multiplexers and Switches; Specifications and Application Considerations Application Note PDF 270 KB
AN1034: CMOS Analog Multiplexers and Switches, Applications Considerations Application Note PDF 300 KB
PCNs & PDNs
PCN14023 - DLA Notification - HVSIGATE 4 Product Change Notice PDF 114 KB
PCN12085 - 8l, 14l, 16l SOIC w/ Gold Bond Wire @ ATP as Alternate Assembly Site Product Change Notice PDF 152 KB
PCN11113A - Manufacturing Site Change for Assembly of the Listed Intersil TSSOP Packaged Products - Carsem-M (CAM) - Ipoh, Malaysia Product Change Notice PDF 121 KB
PCN12004 - Wafer Fabrication Process Improvement for the Listed Intersil HVSIGATE Technology Products - Intersil Palm Bay, Florida Facility Product Change Notice PDF 136 KB
PCN11113 - Manufacturing Site Change for Assembly of the Listed Intersil TSSOP Packaged Products - Carsem-M (CAM) - Ipoh, Malaysia Product Change Notice PDF 120 KB
