Dual, High-Speed MOSFET Driver Evaluation Board
Jump to Page Section:
Overview
Description

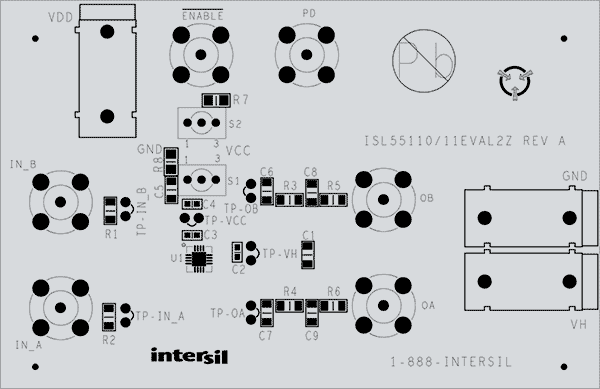

The ISL55110EVAL2Z evaluation board is used to evaluate the ISL55110 dual, high-speed MOSFET drivers.
The ISL55110 is intended for applications requiring accurate pulse generation and buffering. Target applications include ultrasound, CCD imaging, piezoelectric distance sensing, and clock generation circuits.
With a wide output voltage range and low ON-resistance, these devices can drive a variety of resistive and capacitive loads with fast rise and fall times, allowing high-speed operation with low skew, as required in large CCD array imaging applications.
Features
- Scope probe connections
- BNC connections
- Power down feature
- 5V to 12V pulse amplitude
- High current drive 3.5A
- 6ns minimum pulse width
- 1.5ns rise and fall times, 100pF load
- Low skew
- 3.3V and 5V logic compatible
- In-phase outputs
Applications
Applications
- Ultrasound MOSFET drivers
- CCD array horizontal drivers
- Clock driver circuits
