Overview

The ISL706xRHEVAL1Z evaluation board is a design platform featuring all three versions of the rad hard 3.3V supervisory circuits, ISL706ARH, ISL706BRH and ISL706CRH. It includes all the circuitry needed to characterize critical performance parameters and enables evaluation of basic functional operation and common application implementations.

The devices in the ISL706xRH family are radiation hardened 5.0V/3.3V supervisory circuits that reduce the complexity required to monitor supply voltages in microprocessor systems. These devices significantly improve accuracy and reliability relative to discrete solutions.

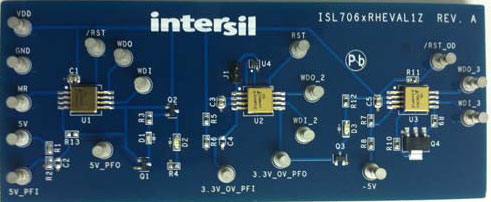

ISL706xRHEVAL1Z Evaluation Board
ISL706xRHEVAL1Z Evaluation Board
  • The ISL706xRHEVAL1Z is divided into three sections; each section having one of the three available reset output versions.
    • The left position has the ISL706ARH and is set-up as a +5V and +3.3V UV monitor with reset signal.
    • The middle position features the ISL706BRH set up as 3.3V window detector.
    • The right section contains the ISL706CRH in a bipolar voltage sensing application.

Applications

  • Supervisor for microprocessors, microcontrollers, FPGAs, and DSPs
  • Critical power supply monitoring
  • Reliable replacement of discrete solutions
Title Category Buy/Sample
ISL706ARH
Rad-Hard, 5.0V/3.3V µ-Processor Supervisory Circuits
 Rad Hard Power Supply Supervisory Buy/Quote
ISL706BRH
Rad-Hard, 5.0V/3.3V µ-Processor Supervisory Circuits
 Rad Hard Power Supply Supervisory Buy/Quote
ISL706CRH
Rad-Hard, 5.0V/3.3V µ-Processor Supervisory Circuits
 Rad Hard Power Supply Supervisory Buy/Quote

Design & Development

Models

Title Type Date
ISL705xRH, ISL705xEH, ISL735xEH, and ISL706xRH, ISL706xEH, ISL736xEH PSPICE Model
ZIP726 KB
Model - SPICE

Product Options

    Processing table
    Part Number
    Buy / Sample
    ISL706xRHEVAL1Z
