The ZMID5201 is an inductive position sensor IC with analog output, used for absolute rotary and linear motion sensing in automotive applications. The ZMID5201 uses the physical principles of induction in a wire loop and Eddy currents to detect the position of a metallic target that is sliding or rotating above a set of coils, consisting of one transmitter coil and two receiver coils. The three coils are typically printed as copper traces on a printed circuit board (PCB). They are arranged such that the transmitter coil induces a secondary voltage in the receiver coils which depends on the position of the metallic target above the coils. After demodulating and processing the secondary voltages from the receiver coils, a signal representative of the metallic target’s position over the coils is obtained. The ZMID5201 is fully qualified to automotive standards AEC-Q100, grade 0 up to 150°C ambient temperature.

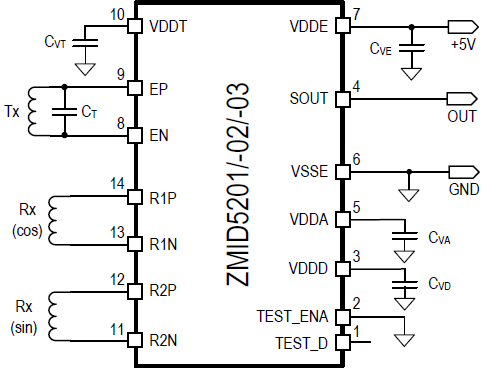

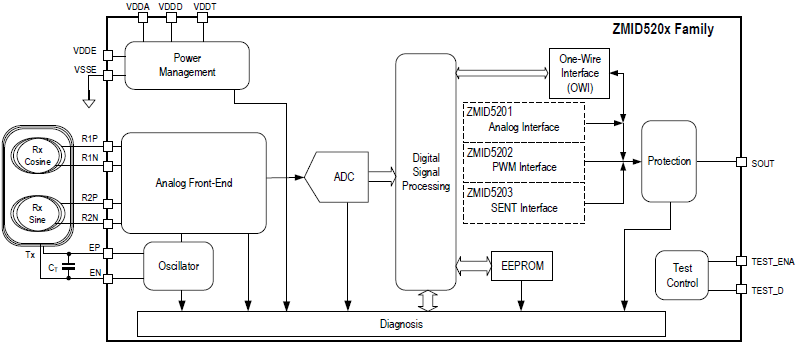

Features

  • Inductive principle
  • Rotation sensing up to a full turn of 360º
  • Analog output with programmable limits
  • Overvoltage, reverse polarity, ESD and short circuit protection
  • 10-bit resolution
  • Power or ground loss detection
  • Facilitates redundant design requirements
  • Programmable linearity correction
  • Adaptive gain control supporting a wide range of coil designs
  • Diagnostic features supporting ISO26262
  • Supporting up to ASIL-B
  • Overvoltage and reverse polarity protection up to ±18V
  • Small 14-TSSOP package

Product Comparison

ZMID5201 ZMID5202 ZMID5203
Interface Analog output PWM digital output SENT digital output
Resolution (bits) 10 10 12

descriptionDocumentation

Title language Type Format File Size Date
star ZMID520x Datasheet Datasheet PDF 1.01 MB
ZMID520x Short-Form Datasheet Datasheet - Short-form PDF 236 KB
ZMID5201 Manual for Calibration and Linearization Using the Analog Output Manual - Development Tools PDF 1.15 MB
ZMID-COMBOARD Guide - Serial Communication and Commands Manual - Development Tools PDF 459 KB
ZMID520x User Guide Getting Started Manual - Hardware PDF 1.34 MB
ZMID520x Manual for Calibration and Linerarizaton with Python and DLL Manual - Software PDF 554 KB
ZMID520x User Manual Calibration and Linearization using LabVIEW Manual - Software PDF 674 KB
ZMID520x User Guide - Inductive Coil Design Tool Manual - Software PDF 1.01 MB
ZMID520x Application Note AN-1038 - Configuration for Monotonic Linear Output Application Note PDF 1.05 MB
ZMID520X EMC Recommendation Other PDF 235 KB
ZMID520x Register Map Other PDF 1.24 MB
ZMID520x Inductive Position Sensor Family Overview Overview PDF 300 KB
ZMID4200/ZMID5200 Redundant Schematic Template Schematic PDF 179 KB
ZMID4200/ZMID5200 Schematic Template Schematic PDF 132 KB
ZMID520x Technical Brief OWI Interface Technical Brief PDF 680 KB

file_downloadDownloads

Title language Type Format File Size Date
Inductive Coil Design Tool Software (ICDT) Software & Tools - Software ZIP 1.98 MB
ZMID520x LabVIEW DLL VI Software & Tools - Software ZIP 180 KB
ZMID520x DLL for Calibration and Linearization using Python Software & Tools - Software ZIP 22 KB
ZMID4200/ZMID5200 Layout Template (Altium) PCB Design Files ZIP 2.75 MB
ZMID4200/ZMID5200 Layout Template (Gerber) PCB Design Files ZIP 142 KB
ZMID4200/ZMID5200 Redundant Layout Template (Altium) PCB Design Files ZIP 2.84 MB
ZMID4200/ZMID5200 Redundant Layout Template (Gerber) PCB Design Files ZIP 287 KB

memoryBoards & Kits

Part Number Title Type Company
ZMID5201MROT ZMID5201 Inductive Rotary Application Module with Analog Output Evaluation Renesas
ZMID-COMBOARD USB Communication and Programming Board for ZMID Application Modules Evaluation Renesas
ZMID5201MLIN ZMID5201 Inductive Linear Application Module with Analog Output Evaluation Renesas
ZMID5201MARC ZMID5201 Inductive Arc Application Module with Analog Output Evaluation Renesas
ZMID5201STKIT ZMID5201 Inductive Position Sensing Starter Kit Starter Renesas
