F1440 High-linearity Variable Gain Amplifier Evaluation Kit
The F1440EVK is a fully populated evaluation board that allows the customer to evaluate the F1440 Variable Gain Amplifier with an integrated digital step attenuator....
500MHz to 1000MHz Configurable 50Ω or 100Ω DIFF-In to 50Ω SE-Out Variable Gain Amplifier
Jump to Page Section:
Overview
Description

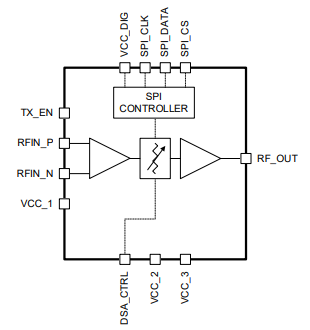

The F1440 is a high-linearity variable gain RF amplifier with an integrated digital step attenuator (DSA) designed to operate within the 500MHz to 1000MHz frequency range. Using a single 5V power supply, the F1440 typically provides 42.5dB of gain, 3.2dB of noise figure, 41.5dBm of OIP3, and 30dBm OP1dB at its maximum gain setting.
Features
- Frequency range: 500MHz to 1000MHz
- 42.5dB typical gain at 750MHz
- 3.2dB typical NF at 750MHz
- 41.5dBm typical OIP3 at 750MHz
- 30dBm typical OP1dB at 750MHz
- Configurable 50Ω or 100Ω differential input impedance through external input BOM change
- 31.5dB DSA range with 0.5dB step size
- 5V power supply
- 305mA typical quiescent current consumption
- 1.8V and 3.3V SPI SDI logic compatible
- 1.8V SPI SDO logic compatible
- SPI control for DSA attenuation
- Disable mode for power savings
- Operating temperature (TEPAD) range: -40C to +105°C

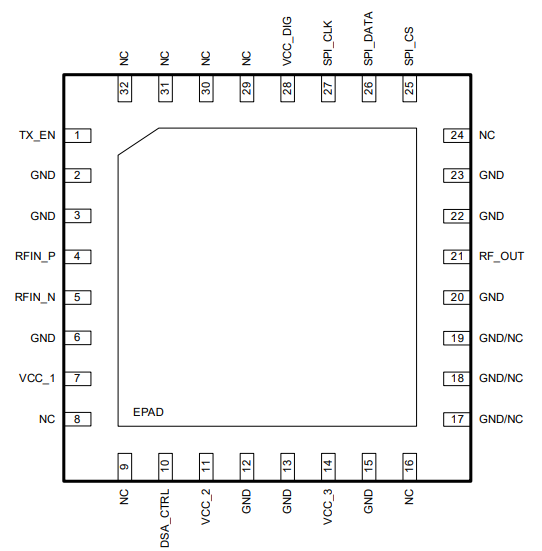

- 5 × 5 mm 32-VFQFPN package
Comparison
Applications
Applications
- FDD or TDD 5G sub-6GHz wireless infrastructure
- Repeaters and DAS
- General-purpose RF
