ICs for Industrial Ethernet Communication
Jump to Page Section:
Overview
Description
The R-IN32M4-CL3 ICs for industrial Ethernet communication support CC-Link IE TSN. With its built-in Gigabit Ethernet PHY and Renesas R-IN engine (“R-IN engine”) technology, the R-IN32M4-CL3 enables you to realize the latest Time-Sensitive Networking (TSN) technology on a single chip.
To support CC-Link IE TSN networks, the R-IN32M4-CL3 ICs for industrial Ethernet communication enables high-speed, high-precision motion control with time synchronization between devices that is precise to one-millionth of a second. This allows you to build applications with high-speed, high-precision motion control, accelerating TSN support by applications that require control with fast response time such as AC servos, actuators, and vision sensors, and remote I/O devices widely used in network communications.
Moreover, the key feature of the Renesas R-IN series (“R-IN series”), the built-in R-IN engine, offers fast real-time response and high-precision communication control (low jitter communication), which are important for Ethernet communication.

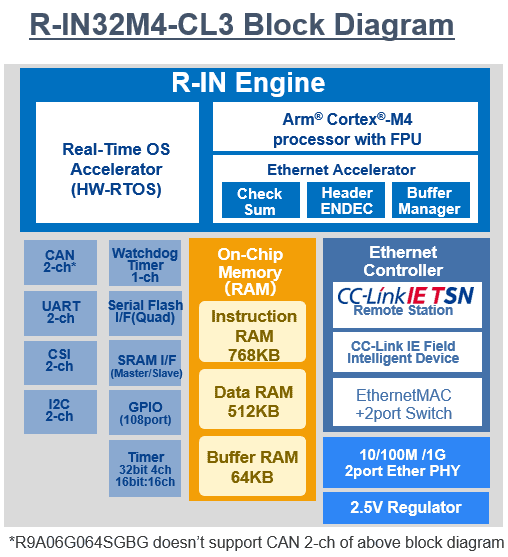

Features
- Time synchronization accuracy between devices to less than ±1μs (CC-Link IE TSN Class B compatible)
- 2-port GbE compatible PHY, CPU and RAM (1.3MB) on a single chip
- Inherits protocol support from the R-IN engine
- Small size package and a built-in regulator for PHY reduces the mounting area
- Low power consumption (35% reduction vs. R-IN32M3-CL2)
Comparison
Applications
Applications
- Factory automation equipment
- Remote I/O
- Sensors
- Solenoid valves
- Motor networks
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.82 MB 日本語 | |
| Brochure | PDF 8.18 MB 日本語 | |
| Manual - Hardware | PDF 3.79 MB 日本語 | |
| Application Note | PDF 154 KB 日本語 | |
| Application Note | PDF 1.24 MB 日本語 | |
| Application Note | PDF 293 KB 日本語 | |
| Manual - Development Tools | PDF 3.26 MB 日本語 | |
| Brochure | PDF 7.93 MB 日本語 , 简体中文 | |
| Application Note | PDF 165 KB 日本語 | |
| Manual - Development Tools | PDF 787 KB 日本語 | |
| Manual - Hardware | PDF 1.56 MB 日本語 | |
| Manual - Hardware | PDF 21.76 MB 日本語 | |
| Application Note | PDF 381 KB 日本語 | |
| Manual - Hardware | PDF 1.41 MB 日本語 | |
| Manual - Hardware | PDF 3.72 MB 日本語 | |
| Manual - Hardware | PDF 1.75 MB 日本語 | |
16 items
|
||
Design & Development
Sample Code
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| 2031 Mar | 32 | R-IN32M4 | 768 | 512 | 484 | Cortex-M4 with FPU | No | 1 | Yes | DMAC x 4 ch | 30 | 106 | 16-bit Timer x 16-ch, 32-bit Timer x 4-ch, Watchdog Timer x 1-ch | 2 | 2ch | 2 | 2 | 1.15 | -40 to 85°C | Industrial communication, include CC-Link IE TSN slave IP and 2port PHY, Power Supply = VDD = 1.15V, VDDIO = 3.0 to 3.6V | ||||||
| 2031 Mar | 32 | R-IN32M4 | 768 | 512 | 484 | Cortex-M4 with FPU | No | 1 | Yes | DMAC x 4 ch | 30 | 106 | 16-bit Timer x 16-ch, 32-bit Timer x 4-ch, Watchdog Timer x 1-ch | 2 | 2ch | 2 | 2 | 1.15 | -40 to 85°C | Industrial communication, include CC-Link IE TSN slave IP and 2port PHY, Power Supply = VDD = 1.15V, VDDIO = 3.0 to 3.6V | Get Samples, | |||||
| 2031 Mar | 32 | R-IN32M4 | 768 | 512 | 356 | Cortex-M4 with FPU | No | 1 | Yes | DMAC x 4 ch | 30 | 101 | 16-bit Timer x 16-ch, 32-bit Timer x 4-ch, Watchdog Timer x 1-ch | 2 | 2 | 1.15 | -40 to 85°C | Industrial communication, include CC-Link IE TSN slave IP and 2port PHY, Power Supply = VDD = 1.15V, VDDIO = 3.0 to 3.6V | ||||||||
| 2031 Mar | 32 | R-IN32M4 | 768 | 512 | 356 | Cortex-M4 with FPU | No | 1 | Yes | DMAC x 4 ch | 30 | 101 | 16-bit Timer x 16-ch, 32-bit Timer x 4-ch, Watchdog Timer x 1-ch | 2 | 2 | 1.15 | -40 to 85°C | Industrial communication, include CC-Link IE TSN slave IP and 2port PHY, Power Supply = VDD = 1.15V, VDDIO = 3.0 to 3.6V |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
Renesas Samples
Select an orderable part number:
| Orderable Part ID | Sample |
|---|---|
| R9A06G064MGBG#BC0 | Availability |
