Quad Digital Controlled Potentiometers (XDCP™), Non-Volatile/Low Power/2-Wire/64 Taps
Jump to Page Section:
Overview
Description

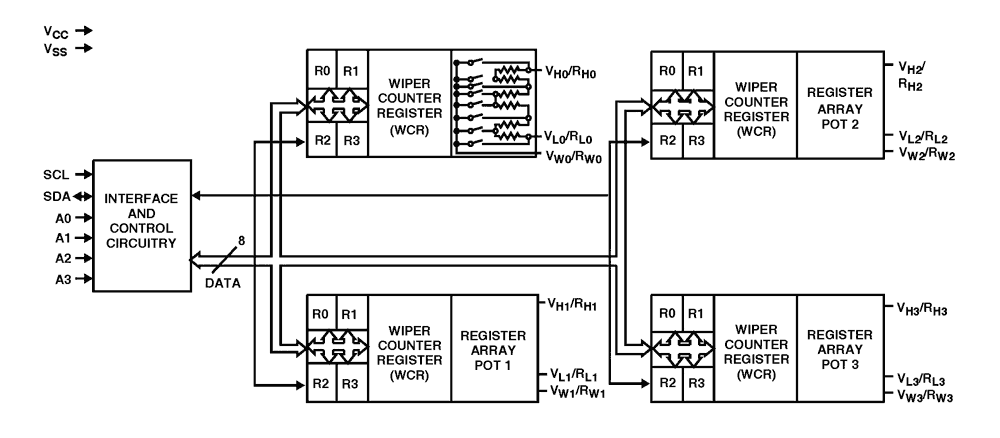

The X9241A integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit. The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 nonvolatile Data Registers (DR0:DR3) that can be directly written to and read by the user. The contents of the WCR controls the position of the wiper on the resistor array through the switches. Power up recalls the contents of DR0 to the WCR. The XDCP can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications including control, parameter adjustments, and signal processing.
Features
- Four potentiometers in one package
- 2-wire serial interface
- Register oriented format
- Direct read/write/transfer of wiper positions
- Store as many as four positions per potentiometer
- Terminal Voltages: +5V, -3.0V
- Cascade resistor arrays
- Low power CMOS
- High Reliability
- Endurance-100,000 data changes per bit per register
- Register data retention-100 years
- 16-bytes of nonvolatile memory
- 3 resistor array values
- 2kΩ, 10kΩ, 50kΩ or combination
- Cascadable for values of 4kΩ to 200kΩ
- Resolution: 64 taps each pot
- 20 Ld plastic DIP, 20 Ld TSSOP and 20 Ld SOIC packages
- Pb-free available (RoHS compliant)
Documentation
|
|
Date | |
|---|---|---|
| PDF 716 KB | Datasheet | |
| PDF 1.40 MB | Manual - Development Tools | |
| PDF 257 KB | Price Increase Notice | |
| PDF 388 KB | End Of Life Notice | |
| PDF 345 KB | End Of Life Notice | |
| PDF 227 KB | Price Increase Notice | |
| PDF 363 KB | Product Advisory | |
| PDF 237 KB | Product Change Notice | |
| PDF 98 KB | Product Change Notice | |
| PDF 86 KB | Product Change Notice | |
| PDF 121 KB | Product Change Notice | |
| PDF 120 KB | Product Change Notice | |
| PDF 820 KB | Application Note | |
| PDF 281 KB | Application Note | |
| PDF 207 KB | Application Note | |
| PDF 750 KB | Application Note | |
| PDF 534 KB | Application Note | |
| PDF 467 KB | Application Note | |
| PDF 398 KB | Application Note | |
| PDF 280 KB | Application Note | |
| PDF 292 KB | Application Note | |
| PDF 324 KB | Application Note | |
| PDF 239 KB | Application Note | |
| PDF 209 KB | Application Note | |
| PDF 384 KB | Application Note | |
| PDF 513 KB | Application Note | |
| PDF 251 KB | Application Note | |
| PDF 315 KB | Other | |
| PDF 503 KB | Application Note | |
| PDF 287 KB | Application Note | |
30 items
|
||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Carrier Type |
MOQ |
Buy / Sample |
|
|---|---|---|---|---|
| Part Number | ||||
| SOICW | Tube | 560 | Get Samples, | |
| SOICW | Reel | 1000 | ||
| TSSOP | Tube | 600 | Get Samples, | |
| TSSOP | Reel | 2500 | ||
| TSSOP | Tube | 600 | Get Samples, | |
| TSSOP | Reel | 2500 | ||
| SOICW | Tube | 280 | Get Samples, | |
| SOICW | Reel | 1000 | ||
| TSSOP | Tube | 600 | Get Samples, | |
| TSSOP | Reel | 2500 | ||
| SOICW | Tube | 280 | Get Samples, | |
| SOICW | Reel | 1000 | ||
| SOICW | Tube | 420 | Get Samples, | |
| SOICW | Reel | 1000 | ||
| TSSOP | Tube | 300 | Get Samples, | |
| TSSOP | Reel | 2500 | ||
| TSSOP | Tube | 300 | Get Samples, | |
| TSSOP | Reel | 2500 | ||
| TSSOP | Tube | 300 | Get Samples, | |
| TSSOP | Reel | 2500 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
Renesas Samples
Select an orderable part number:
| Orderable Part ID | Sample |
|---|---|
| X9241AMSIZ | Availability |
| X9241AMVIZ | Availability |
| X9241AMVZ | Availability |
| X9241AUSIZ | Availability |
| X9241AUVIZ | Availability |
| X9241AWSIZ | Availability |
| X9241AWSZ | Availability |
| X9241AWVIZ | Availability |
| X9241AWVZ | Availability |
| X9241AYVIZ | Availability |
