Analog Products

Overview

The ISL95810 integrates a digitally controlled potentiometer (XDCP) on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wiper is controlled by the user through the I2C bus interface. The potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Initial Value Register (IVR), that can be directly written to and read by the user. The content of the WR controls the position of the wiper. At power-up the device recalls the contents of the DCP's IVR to the WR. The DCP can be used as three-terminal potentiometer or as two-terminal variable resistor in a wide variety of applications including control, parameter adjustments, and signal processing.

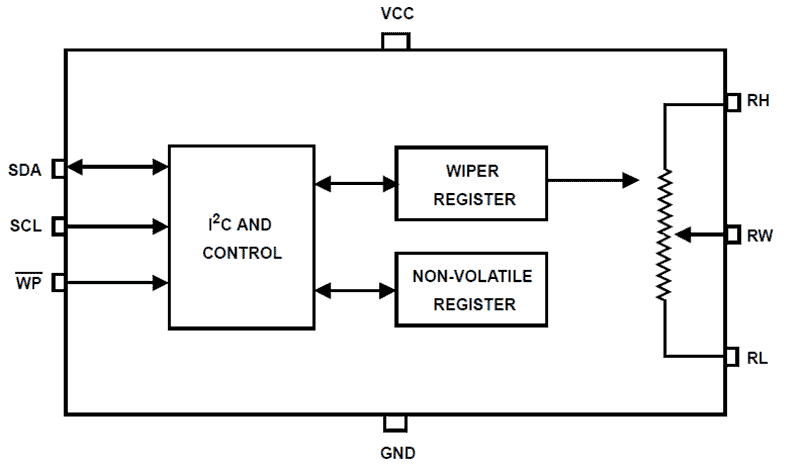

ISL95810 Functional Diagram
ISL95810 Functional Diagram
  • 256 resistor taps - 0.4% resolution
  • I2C serial interface
  • Wiper resistance: 70Ω typical @ 3.3V
  • Non-volatile storage of wiper position
  • Standby current 5µA max
  • Power supply: 2.7V to 5.5V
  • 50kΩ, 10kΩ total resistance
  • High reliability
  • Endurance: 200,000 data changes per bit per register
  • Register data retention: 50 years @ T ≤ +75°C
  • 8 Ld MSOP and 8 Ld TDFN packaging
  • Pb-free plus anneal available (RoHS compliant)

Documentation

Type Title Date
Datasheet
ISL95810 Datasheet
PDF 834 KB
Manual - Development Tools
Digital Potentiometer (DCP) Evaluation USB Kit Manual
PDF 1.40 MB
End Of Life Notice
PLC19018A - Rescinding of 8 products from PLC19018
PDF 224 KB
End Of Life Notice
PLC19018 - General 1H PLC Notice
PDF 229 KB
Product Alert Notice
PAN16060 - Change of Moisture Sensitivity Level Rating from MSL 1 to MSL 2 for ISL95810WIU8Z-T, 8 Leads MSOP
PDF 59 KB
Product Advisory
PA14042 - Minimum Line Quantity Change
PDF 363 KB
Product Change Notice
PCN12084 - Manufacturing Site Change for the Listed Intersil Products - Carsem (CAS) Ipoh Malaysia
PDF 135 KB
Application Note
AN1425: Get Precision Performance from a Digitally Controlled Potentiometer (DCP)
PDF 281 KB
Other
TB473: Adjusting the ISL21007, ISL21009 VOUT Using the ISL95810
PDF 258 KB
Application Note
AN133: Putting Analog On The Bus
PDF 534 KB
Application Note
AN1157: Power Supply and DC to DC Converter Control using Intersil Digitally Controlled Potentiometers (XDCPs)
PDF 280 KB
Application Note
AN1173: DC/DC Module Trim with Digital Potentiometers
PDF 513 KB
Application Note
AN1699: Digital Control Potentiometers Offer Hidden Benefits for Many Designs
PDF 251 KB
Other
TB458: Converting a Fixed PWM to an Adjustable PWM
PDF 315 KB
Application Note
AN9675: A Tutorial in Coherent and Windowed Sampling with A/D Converters
PDF 503 KB
Application Note
AN9705: A Theoretical View of Coherent Sampling
PDF 287 KB
16 items
