Wireless Flow Rate, Humidity, and Temperature Sensing Evaluation Kit
Jump to Page Section:
Overview
Description

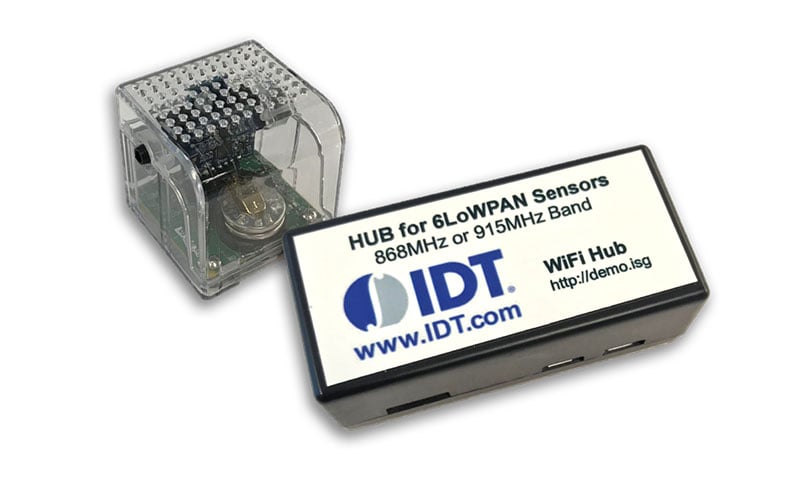

The SDAWIR evaluation kit demonstrates using the 6LoWPAN ZWIR4512 low power wireless module to communicate humidity, temperature, and flow sensor measurement data to the kit’s 6LoWPAN-WiFi hub. The hub functions as a WiFi hub, allowing a linked device to display and graph the measured data in real time.
The kit’s hub can also link to an end-user’s WiFi hub, which also allows any network device to display and graph the data in a web browser. The kit’s hub also permits sending the measurements to Amazon® Web Services with all the required permissions and setup of the data to be viewed worldwide. The end-user only needs an Amazon Web Service account.

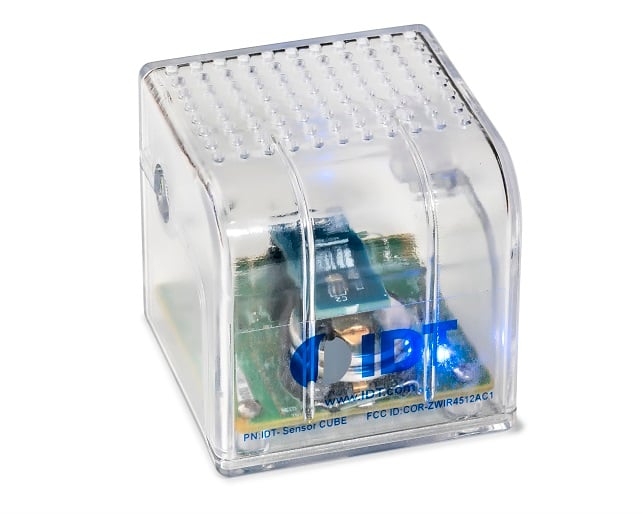

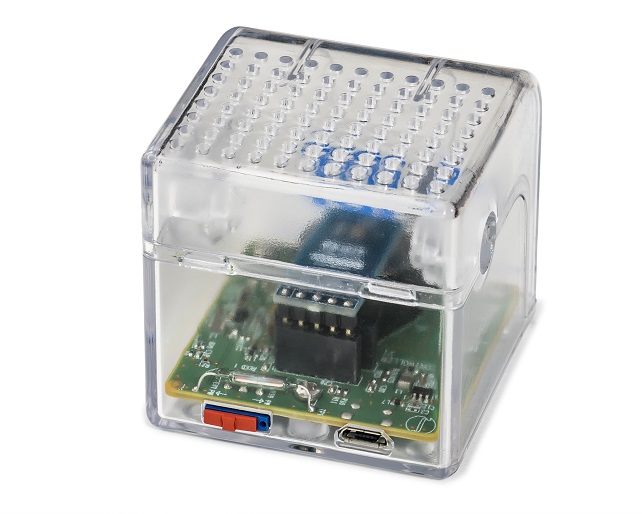

The sensors, FS2012 flow sensor and HS3001 humidity and temperature sensor, are mounted in a 5cm clear plastic cube that contains a ZWIR4512 wireless module to communicate with the hub. The WiFi hub and the sensor cube are powered by a separate AC/DC wall mount adapter.
The hub utilizes a Raspberry PI Zero W to provide the WiFi hub function interfaced to the ZWIR4512 wireless module. The hub is using Raspbian LXDE Lightweight Desktop Environment. Raspbian is a Debian-based computer operating system for the Raspberry Pi. The hub micro SD card is fully loaded and ready for operation.
Features
- Wi-Fi hub with ZWIR4512 (6LoWPAN)
- Wireless sensors module with HS3001 and FS2012
- Tubing
- Power supply modules (two options available)
- Micro USB to USB adapter
- Mini HDMI to HDMI adapter
Processing table
SDAWIR01 Obsolete |
Evaluation kit with North American plug | |
SDAWIR02 Obsolete |
Evaluation kit with common world plug options | |
SDAWIR03-AMZ01-GB Obsolete |
Evaluation kit with common world plug options | |
SDAWIR03-AMZ01-NA Obsolete |
Evaluation kit with North American plug |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
6LoWPAN Wireless Module Sensor Connectivity Kit for Amazon Web Services - IDT SDAWIR03
The IDT SDAWIR03 kit offers real-time sensor data collection that seamlessly integrates into sensor management services hosted on the Amazon Web Services (AWS) cloud, making it easier for engineers and software developers to design complex IoT solutions and applications, eliminating the need for specific device expertise.
The SDAWIR03 connectivity kit has been specifically developed for new and active AWS users who are interested in offering Sensing as a Service to their customers. The SDAWIR03 kit includes a sensor node module with real-time humidity, temperature, and gas flow sensors from which data is being collected. When additional SDAWIR03 sensor node modules are added, it will automatically connect via a mesh network based on IDT’s SensorShare™ 6LoWPAN protocol. The SDAWIR03 6LoWPAN hub connects to the AWS cloud from which the data can be visualized and analyzed using available tools such as ElasticSearch and Kibana. The 6LoWPAN wireless mesh connectivity uses an IPv6 address of each sensor module, integrating itself seamlessly into the existing infrastructure. IDT’s SensorShare wireless communication firmware in each SDAWIR03 kit has no license fee and no royalties, allowing resource and budget limited developers to focus on their end application.
This quick and easy to implement starter kit enables sensor data to link to the WiFi connected hub, and following a few steps to sign on to the AWS account, data mining and analytics services offered from AWS are ready to use.
The SDAWIR03 kit hub supports Over-The-Air updates (OTA) from the AWS site so the latest updates may be easily loaded to the kit. For example, the need to add 128-bit encryption security may be uploaded using the OTA update.
For more information about the SDAWIR03 sensor connectivity kit, visit www.idt.com/SDAWIR.
