700MHz, Crystal-to-LVDS Frequency Synthesizer
NOTICE - The following device(s) are recommended alternatives:
8442I - 700MHz, Crystal Oscillator-to-Differential LVDS Frequency Synthesizer
Functionally compatible
Functionally compatible
Jump to Page Section:
Overview
Description

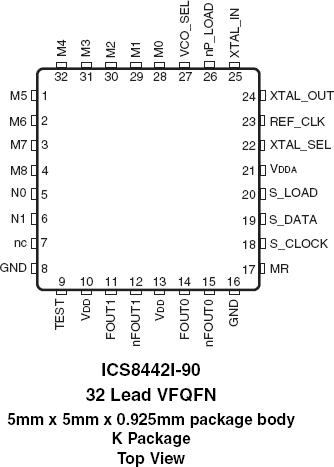

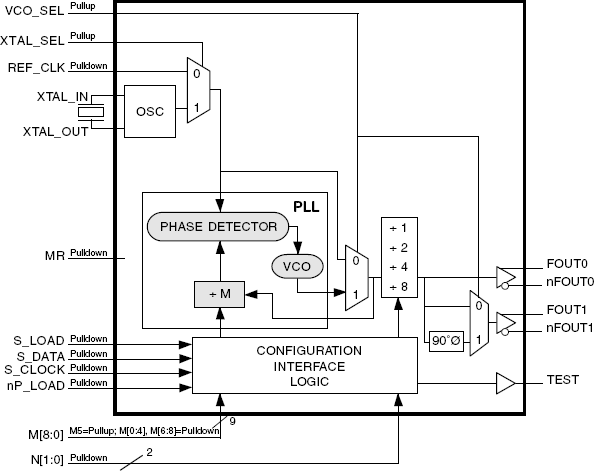

The 8442I-90 is a general purpose, dual output Crystal-to-Differential LVDS High Frequency Synthesizer. The 8442I-90 has a selectable REF_CLK or crystal input. The REF_CLK input accepts LVCMOS or LVTTL input levels and translates them to LVDS levels. The VCO operates at a frequency range of 250MHz to 700MHz. The VCO frequency is programmed in steps equal to the value of the input reference or crystal frequency. The VCO and output frequency can be programmed using the serial or parallel interface to the configuration logic.
Features
- Dual differential LVDS outputs FOUT1/nFOUT1 lags FOUT0/nFOUT0 by 90°
- Selectable crystal oscillator interface or LVCMOS/LVTTL REF_CLK
- Output frequency range: 31.25MHz - 700MHz
- Crystal input frequency range: 10MHz to 25MHz
- VCO range: 250MHz - 700MHz
- Parallel or serial interface for programming counter and output dividers
- RMS period jitter: 7ps (maximum), (N= ÷1, ÷2, ÷4)
- Cycle-to-cycle jitter: 34ps (maximum), (N= ÷1, ÷2)
- 3.3V supply voltage
- -40°C to 85°C ambient operating temperature
- Available in lead-free (RoHS 6) package
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF91 KB
|
Application Note
|
||
PDF1.99 MB
|
Application Note
|
||
PDF322 KB
|
Application Note
|
||
PDF395 KB
|
Application Note
|
||
PDF170 KB
|
Application Note
|
||
PDF133 KB
|
Application Note
|
||
PDF495 KB
|
Application Note
|
||
PDF442 KB
|
Application Note
|
||
PDF115 KB
|
Application Note
|
||
PDF233 KB
|
Application Note
|
||
PDF131 KB
|
Application Note
|
||
PDF153 KB
|
Application Note
|
||
PDF160 KB
|
Application Note
|
||
PDF120 KB
|
Application Note
|
||
PDF133 KB
|
Application Note
|
||
PDF143 KB
|
Application Note
|
||
PDF565 KB
|
Application Note
|
||
PDF136 KB
|
Application Note
|
||
PDF202 KB
|
Application Note
|
||
PDF438 KB
|
Application Note
|
||
PDF108 KB
|
Application Note
|
||
PDF233 KB
|
Datasheet
|
||
PDF549 KB
|
End Of Life Notice
|
||
PDF545 KB
|
End Of Life Notice
|
||
PDF544 KB
|
End Of Life Notice
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| VFQFPN | 32 | I | Yes | Tray | ||
| VFQFPN | 32 | I | Yes | Reel |
