Features
Fusing control and information technology, and delivering pure performance, the Arm®-based RZ microprocessor family integrates the most advanced peripherals, the largest embedded memory available, and a rich proprietary and commercial 3rd party software ecosystem. Built on Renesas’ heritage, RZ is designed to be as easy to use as a conventional microcontroller, making next-generation human-machine interface and high-end industrial applications a reality.
Whether you need support for 3D graphics and full high-definition video, industrial-grade Linux, multi-protocol industrial Ethernet or the highest performance precision motor control, RZ lowers barriers to entry for embedded microprocessor design.
Find the Right Product for Your Application
Select from Solutions
Select from MPU Lineup
For Display System (RZ/A Series)
| Group | Features | RAM (MB) | Display Functions | Solution |
|---|---|---|---|---|
| RZ/A2M | 10 times the image processing ability of the conventional. Secure and safe network connection realized with enhanced security function. Key device of image recognition application | 4 | VDC6 (1 channel, 1-RGB/LVDS) | Display Connectivity |
| RZ/A1H | Large-capacity on-chip RAM of up to 10 MB enables more compact system size. | 10 | VDC5 (2 channels, 2-RGB or RGB/LVDS) | Display Connectivity |
| RZ/A1M | High-speed operation with maximum operating frequency of 400 MHz supports high system performance and functionality. | 5 | VDC5(2 channels, 2-RGB or RGB/LVDS) | Display Connectivity |
| RZ/A1LU | Enhanced version of the RZ/A1L adding Ethernet AVB and a JPEG codec unit. | 3 | VDC5 (1 channel for RGB output) | Display Connectivity |
| RZ/A1L | The fusion of Renesas’ experience and the Arm ecosystem helps shorten prototype development time and reduce development costs. | 3 | VDC5 (1 channel for RGB output) | Display Connectivity |
| RZ/A1LC | The most cost-effective part in the RZ/A1 family with an Arm® Cortex®-A9 core running at 400MHz and 2MB of on-chip SRAM to support frame-buffers on-chip. | 2 | VDC5 (1 channel for RGB output) | Display Connectivity |
For Real-Time Control (RZ/T Series)
| Group | Features | Memory | Encoder Interface | Solution |
|---|---|---|---|---|
| RZ/T2M | High-performance Multi-function MPU Realizing High-speed Processing and High Precision Control for Industrial AC Servos and Controllers | ATCM : 512KB (with ECC), BTCM : 64KB (with ECC), 2MB SRAM (with ECC) | A-formatTM, BiSS®, EnDat, HIPERFACE® DSL, FA-CODER | Motor Control Industrial Network |
| RZ/T2L | High-Performance MPU Realizing High-Speed and High-Precision Real-Time Control with EtherCAT | ATCM : 512KB (with ECC), BTCM : 64KB (with ECC), 1MB SRAM (with ECC) | A-formatTM, BiSS®-C, EnDat2.2, HIPERFACE® DSL, FA-CODER | Motor Control Industrial Network |
| RZ/T1 | Microprocessors achieving real-time control and networking of industrial equipment. | Tightly Coupled Memory 512 KB (with ECC) and 32 KB (with ECC) Max. 1MB SRAM with ECC |
A-formatTM, BiSS®-C, EnDat2.2, HIPERFACE® DSL, FA-CODER | Motor Control Industrial Network |
For 3D Graphics and Full-HD Video Display (RZ/G Series)
| Group | Features | RAM (KB) | Video Functions | Solution |
|---|---|---|---|---|
| RZ/G2E |
Up to 5,500 DMIPS with dual-core Cortex® A53 (1.2 GHz), DDR3L-1866 x 32-bit (ECC), Graphics: PowerVR GE8300 at 600 MHz, Video: Support up to FHD resolutions, 552-pin FCBGA (21mm x 21mm). |
128 |
Selectable from 2 channels x LVDS or 1 channel x LVDS + 1 channel x Digital RGB |
Display |
| RZ/G2N |
Up to 12,300 DMIPS with dual-core Cortex® A57 (1.5 GHz), LPDDR4-3200 x 32-bit (ECC), Graphics: Power VR GE7800 at 600 MHz, Video: Support up to 4K resolutions, 1022-pin FCBGA (29mm x 29mm). |
384 | 1 channel x HDMI, 1 channel x LVDS, 1 channel Digital RGB | Display |
| RZ/G2M |
Up to 23,300 DMIPS with dual-core Arm® Cortex®-A57 (1.5 GHz) and quad-core Arm® Cortex®-A53 (1.2 GHz), LPDDR4-3200 x 64-bit (ECC), Graphics: Power VR GE6250 at 600 MHz, Video: Support up to 4K resolutions, 1022-pin FCBGA (29mm x 29mm) |
384 | 1 channel x HDMI, 1 channel x LVDS, 1 channel Digital RGB | Display |
| RZ/G2H |
Up to 35,600 DMIPS with quad-core Arm® Cortex®-A57 (1.5 GHz) and quad-core Arm® Cortex®-A53 (1.2 GHz), LPDDR4-3200 x 64-bit (ECC) Graphics: Power VR GE6650 at 600 MHz, Video: Support up to 4K resolutions |
384 | 2 channels x HDMI, 1 channel x LVDS, 1 channel x Digital RGB | Display |
| RZ/G1C | High performance 25,000 DMIPS with Quad-core Arm® Cortex®-A15 and Quad-core Arm® Cortex®-A7. 3D graphics engine PowerVRTM G6400 | 332 | Selectable from LVDS 1 channel, RGB888 2 channels or NTSC (CVBS) 1 channel | Display |
| RZ/G1E | High performance of 3,800 DMIPS with Cortex® A7 core.3D graphics performance of 520 Mpx/s. | 332 | 2 channels for RGB888 | Display |
| RZ/G1N | High performance of up to 10,500 DMIPS with Cortex® A15 core.3D graphics performance of 1,268 Mpx/s. | 332 | 1 channel for LVDS, 1 channel for RGB888 | Display |
| RZ/G1M | High performance of up to 10,500 DMIPS with Cortex® A15 core.3D graphics performance of 2,080 Mpx/s. | 332 | 1 channel for LVDS, 1 channel for RGB888 | Display |
| RZ/G1H | High performance of 3,800 DMIPS with Cortex® A7 core.3D graphics engine PowerVRTMSGX531. | 332 | 2 channels for LVDS, 1 channel for RGB888 | Display |
For Industrial Network (RZ/N Series)
| Group | Features | CPU | Memory | Ethernet port | Solution |
|---|---|---|---|---|---|
| RZ/N2L |
|
Cortex®-R52 (400MHz) | Tightly coupled memory 256KB, Internal RAM 1.5MB | 3 | |
| RZ/N1D |
|
Dual Cortex®-A7 (500MHz)+ Cortex®-M3 (125MHz) | Integrated 2MB SRAM＋DDR interface | Max 5 | |
| RZ/N1S |
|
Single Cortex®-A7 (500MHz)+ Cortex®-M3 (125MHz) | Integrated 6MB SRAM | Max 5 | |
| RZ/N1L |
|
Cortex®-M3 | Integrated 6MB SRAM | 3 | Industrial Network |
Try Out RZ Microprocessors

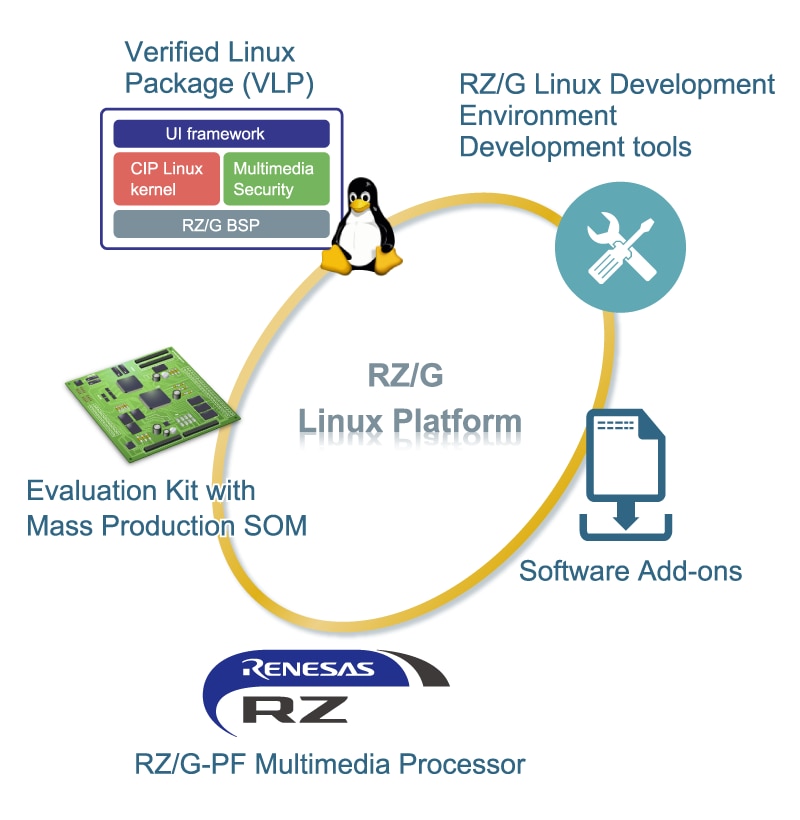

RZ/G Linux Platform
Reduce Linux platform time to market by up to 40%! Reduce development costs by up to 80%!
