Overview

The DA9212 is a synchronous dual step-down converter optimized for the supply of CPUs, GPUs and DDR memory rails in smartphones, tablets, FPGAs and other handheld applications.

DA9212 delivers two times 6A output current suitable for the highest performing application processors such as multi-core arrangements of Arm® Cortex®-A15 family.

The input voltage range of 2.8V to 5.5V makes it suitable for the use of single-cell Lithium-ion battery applications as well as standard 5V supply or USB power supplies. The Dynamic Voltage Control (DVC) supports adaptive adjustment of the supply voltage depending on the processor load, either via direct register writes through the communication interface (I2C or SPI compatible) or via an input pin.

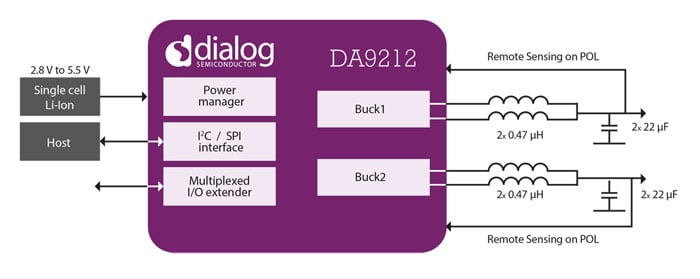

DA9212 Block Diagram
DA9212 Block Diagram
  • 2.8V to 5.5V input voltage
  • 0.3V to 1.57V output voltage
  • 2x 6A output current;
  • 3MHz nominal switching frequency
  • Max inductor height 1.0mm
  • ±1 % accuracy (static)
  • ±3 % accuracy (dynamic)
  • I2C/SPI compatible interface
  • Package: 42 WL-CSP 0.4mm pitch

Applications

  • Smartphones
  • Portable navigation devices
  • Portable media players
  • Portable TVs
  • Tablet PCs
  • eReaders
  • TV dongle
  • Infotainment

Documentation

Title
Type 		Date
DA9211/12 Datasheet
PDF 2.65 MB 		Datasheet
Industrial Power Management Brochure
PDF 5.51 MB 日本語 		Brochure
Shared IRQ Line Considerations AN-PM-059
PDF 267 KB 		Application Note
DA9212 User Guide
PDF 1.96 MB 		Manual - Development Tools
DA9212 PCB Layout Guide
PDF 1.40 MB 		Other
DA9212 Standard Variants
PDF 337 KB 		Product Brief
DA9211 and DA9212 Product Brief
PDF 840 KB 		Product Brief
