Overview
Description
Support is limited to customers who have already adopted these products.

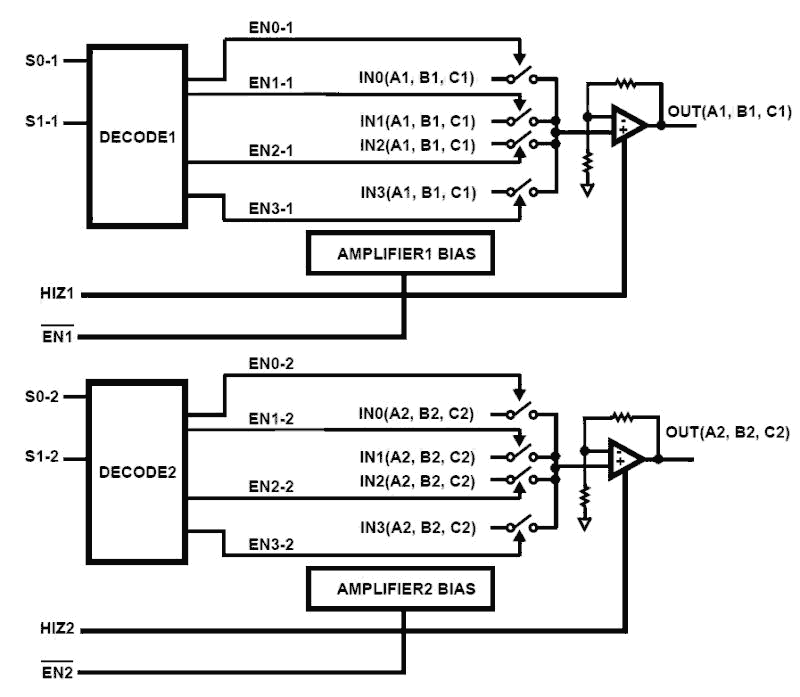

The ISL59482 contains two independent fixed gain of 2 triple 4:1 MUX amplifiers that feature high slew rate and excellent bandwidth for RGB video switching. Each RGB 4:1 MUX contains binary coded, channel select logic inputs (S0, S1), and separate logic inputs for High Impedance Output (HIZ) and power-down (EN) modes. The HIZ state presents a high impedance at the output so that both RGB MUX outputs can be wired together to form an 8:1 RGB MUX amplifier or, they can be used in R-R, G-G, and B-B pairs to form a 4:1 differential input/output MUX. Separate power-down mode controls (EN1, EN2, ) are included to turn off unneeded circuitry in power sensitive applications. With both EN pins pulled high, the ISL59482 enters a standby power mode consuming just 34mW.
Features
- Dual, triple 4:1 multiplexers for RGB
- 520MHz bandwidth into 500Ω load
- ±1600 V/µs slew rate
- Externally configurable for various video MUX circuits including:
- 8:1 RGB MUX
- Two separate 4:1 RGB MUX
- 4:1 differential RGB video MUX
- Internally fixed gain-of-2
- High impedance outputs (HIZ)
- Power-Down Mode (EN)
- ±5V Operation
- Supply Current 16mA/Ch maximum
- Pb-free (RoHS Compliant)
Comparison
Applications
- HDTV/DTV analog inputs
- Video projectors, computer monitors
- Set-top boxes
- Security video
- Broadcast video equipment
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.09 MB | |
| End Of Life Notice | PDF 228 KB | |
| Price Increase Notice | PDF 208 KB | |
| Product Change Notice | PDF 101 KB | |
| Product Change Notice | PDF 83 KB | |
5 items
|
||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
