High-performance, High-power Multi-protocol NFC Forum Reader
ページセクションへ移動：
概要
説明

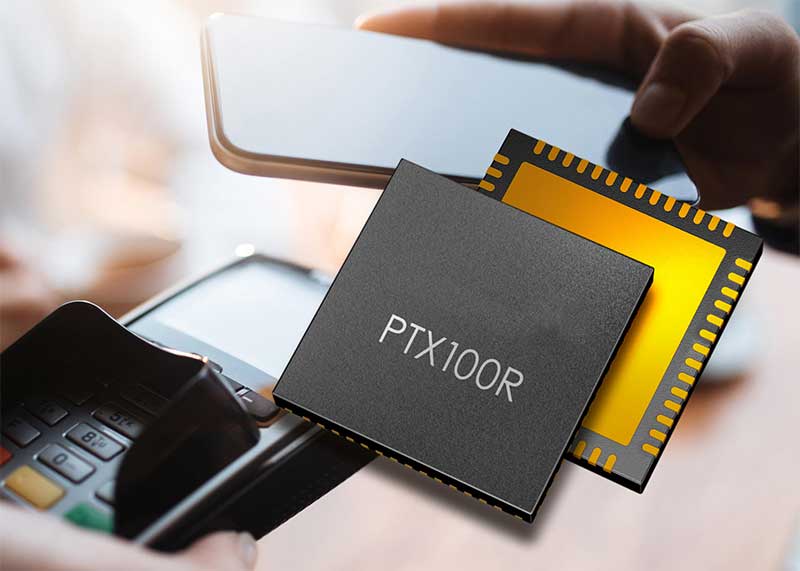

The PTX100R NFC reader serves IoT and Point-of-Sale (PoS) applications, implementing a unique sine wave hardware transceiver architecture and offering a winning combination of superior transmit power and sensitivity, accurate wave shaping, and a reduced bill-of-materials compared to conventional square-wave NFC controllers – products which have changed little over the past decade.
The PTX100R marks a breakthrough in NFC system performance, power and integration simplicity.
This NFC reader IC is fully compliant with the specifications of the latest EMVCo 3.0/3.1 standard for contactless payments. It is supplied with an application-ready EMVCo 3.0/3.1 L1 interface and includes a set of facilities that makes the integration of a third-party EMV L2 stack fast and easy. It also provides rich debugging capabilities allowing for rapid prototyping.
Benefit from our patented Direct Antenna Connection (DiRAC™) technology which enables the NFC to drive output power of up to 2W directly to the antenna while achieving a sensitivity of -80dB.
特長
- High output power up to 2W @5.5V
- Very high Receiver sensitivity (-80dBc)
- DiRAC: Direct antenna connection for Tx and Rx
- Sine Wave output Accurate Digital Wave Shaping
- Removal of second resonating structure introduced by EMI
- Xtal-less design using reference clock
アプリケーション
|
ホームアプライアンス用HMIソリューション |
|
従量制電気自動車(EV)充電ステーション |
|
EV充電器用高性能ウォールボックス |
|
モバイルPOS端末 |
|
NFC認証を備えたプリンタコントロールパネル |
|
ワイヤレス・テレマティクス・ユニット |
アプリケーション
- EMVCo 3.0/3.1 Point-of-Sale (PoS) systems
- High-end IoT applications
ドキュメント
| Document title | Document type
|
日付 日付 | |
|---|---|---|---|
| PDF 899 KB | データシート | ||
| PDF 515 KB | 製品概要 | ||
| PDF 1.78 MB | アプリケーションノート | ||
| PDF 289 KB | アプリケーションノート | ||
| PDF 4.47 MB | アプリケーションノート | ||
| PDF 793 KB | アプリケーションノート | ||
| PDF 310 KB | アプリケーションノート | ||
| PDF 1.21 MB | アプリケーションノート | ||
| PDF 995 KB | アプリケーションノート | ||
| PDF 260 KB | アプリケーションノート | ||
| PDF 215 KB | アプリケーションノート | ||
| PDF 540 KB | アプリケーションノート | ||
| PDF 535 KB | アプリケーションノート | ||
| PDF 644 KB | アプリケーションノート | ||
| PDF 1.33 MB | アプリケーションノート | ||
| PDF 726 KB | アプリケーションノート | ||
| PDF 1.24 MB | アプリケーションノート | ||
| PDF 1.23 MB | マニュアル－開発ツール | ||
| PDF 1.06 MB | マニュアル－開発ツール | ||
| PDF 367 KB | 概要 | ||
| PDF 4.07 MB | 回路図 | ||
| PDF 460 KB | ホワイトペーパー | ||
22 items
|
|||
設計・開発
ボード＆キット
ボード＆キット
PTX100R POS/IoT NFC Reader Demonstration Kit
The Demokit PTX100R enables quick evaluation of the PTX100R NFC reader IC for Internet of Things (IoT), Point-of-Sale (PoS), Mobile Point-of-Sale (mPoS), and Smart...
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
| Box | サンプルを入手, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledビデオ&トレーニング
Innovative NFC Solution for IoT
The IoT market has been booming over the last few years, to say the least. By 2030 there will be approximately half a trillion IoT devices shipped to the market, and already by the end of 2021, almost 7 billion IoT devices shipped will be NFC enabled.
NFC contributes a big deal to the growth and development of IoT applications, enabling a variety of different features in different setups. Ranging from consumer devices to industry 4.0, electric vehicles, and smart home ecosystems – NFC is an integral part of any application design. Our products at Renesas are designed with the end application in mind.
In this video, we present to you the benefits that PTX100R brings to the IoT arena and what can be achieved by using our industry's best NFC IC.
Read more about the innovative PTX100R and the demo kit solution for Internet of Things applications.
