Renesas Rad Hard Power Management Reference Design for Xilinx's Space Grade XQRKU060
ページセクションへ移動：
概要
Description

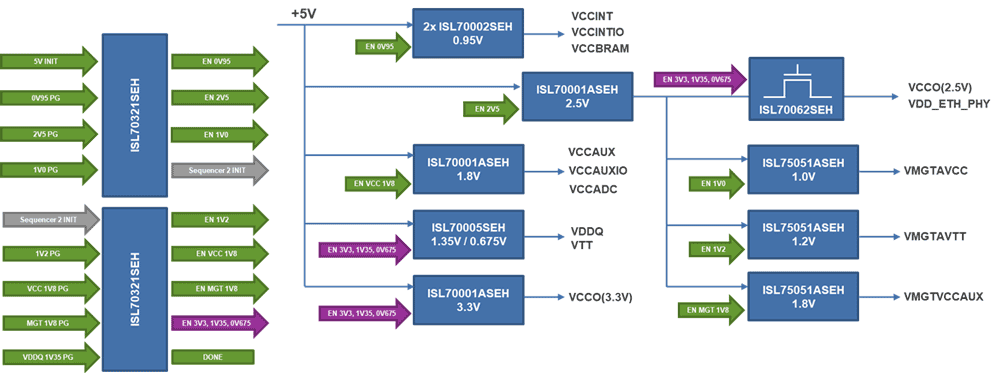

Over the last decade satellites and spacecrafts have seen an exponential increase in the need for on-board data processing and storage demands. Additionally, major satellite manufacturers have recently announced their latest satellites to be modular, fully digital and capable of in-orbit reconfigurability. To meet these demands, satellite and payload manufacturers are using high-end FPGAs, ASICs, and processors. Xilinx’s Kintex XQRKU060 FPGA is a radiation hardened FPGA that has comparable performance to commercial counterparts in demanding computing applications. The Kintex XQRKU060 requires a complex power solution with multiple low voltage supply rails that can deliver high currents and a need for power supply sequencing to eliminate high inrush currents. In collaboration with Xilinx and Ibeos, Renesas offers a Kintex XQRKU060 development board with the FPGA powered by Renesas' Radiation Hardened products.
特長
- Fully radiation hardened power solution
- All power management devices are DLA qualified with MIL-PRF-38535 manufacturing
- KU060 FPGA footprint compatibility with the spaceflight part and the military temp. part
- Peripheral support circuitry includes:
- 64-bit wide DDR3
- 256 Mbit NOR flash
- RS-485 interface
- JTAG programming interface
- Ethernet interface via an RJ45 connector
