High PF and Low THD

The iW2206 boost PFC controller uses Dialog's PF-BoostTM to provide high power factor (>0.9) and low THD (<10%) at full load across the input voltage range, and it can enable solutions that meet the IEC61000-3-2 requirements for harmonic currents. The device consumes less than 150mW no-load standby power at 230VAC for designs up to 100W of output power, making it ideal for solid state lighting where the front-end converter is always on.

The iW2206 integrates a full range of protection features including output over-voltage, over-power, input over-voltage and under-voltage, over-current and sense resistor short circuit protection, open loop and over temperature protection. The device comes in a tiny SOT23-6 package, enabling a smaller total solution size.

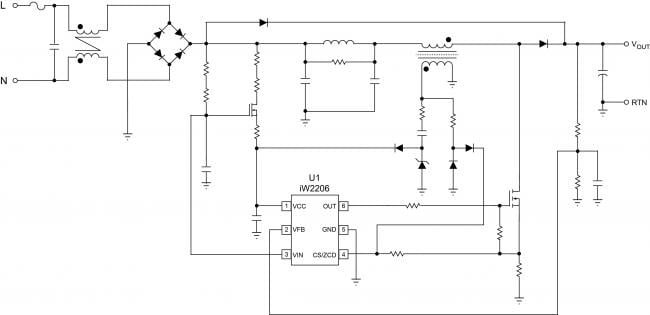

iW2206 Typical Applications Diagram
iW2206 Functional Block Diagram
iW2206 Typical Applications Diagram
iW2206 Functional Block Diagram

PFC Boost Controller in SOT23-6

Can Meet IEC61000-3-2 Harmonic Current Requirements

PF > 0.9 and THD < 10% @ Full load Across Input Voltage

250W Maximum Output Power

Supports Wide AC Input Voltage – 90VAC to 305VAC with Tight AC Load and Line Regulation (±3%)

Fast PFC Ready Time < 0.2s

Standby Power - < 150mW at 100W and Input Voltage of 230VAC

Shut Down Function

  • Pull Down VFB Pin for Lower Standby Power

Fully Protected

  • Output Over-Voltage, Over-Power, Over-Current, Sense-Resistor Short Protections
  • Input Voltage Under-Voltage and Over-Voltage Protection
  • Built-In Over-Temperature Protection
  • Open Loop Protection
