RAA223021 High Voltage Buck Converter Evaluation Board supports 85VAC to 265VAC Input and 12V 667mA Output
ページセクションへ移動：
概要
Description

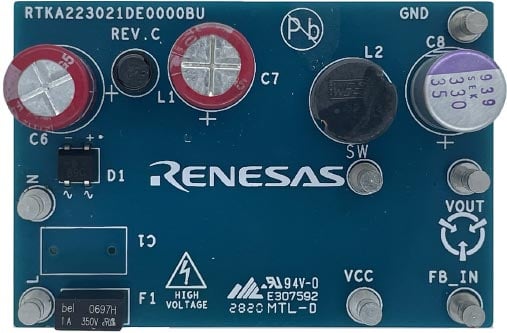

The RAA223021 evaluation board (RTKA223021DE0000BU) is a high voltage buck converter that demonstrates a low-cost high performance non-isolated AC/DC convertor. It operates from a universal input of 85VAC to 265VAC and has a 12V output capable of up to 667mA of load current. The board has built-in overcurrent, short-circuit, input brownout, and over-temperature protection, and is designed on a single sided PCB with full-wave input rectification.
特長
- Universal input
- Single side PCB with low-cost external components
- EMI compliance for EN55022/CISPR22
- Standby power less than 20mW
- No audible noise
アプリケーション
アプリケーション
- Home appliances
- Home automation, IoT, and sensors
- Metering and Industry control
- Bias power
