概要

The RAA223021 evaluation board (RTKA223021DE0010BU) is a high voltage flyback converter that is designed to demonstrate a low-cost high performance isolated AC/DC convertor. It operates from a universal input of 85VAC to 265VAC and has a 12V output capable of up to 1A of load current. The board has built-in overcurrent, short-circuit, input brownout and over-temperature protection, and is designed on a double-sided Printed Circuit Board (PCB) with full-wave input rectification.

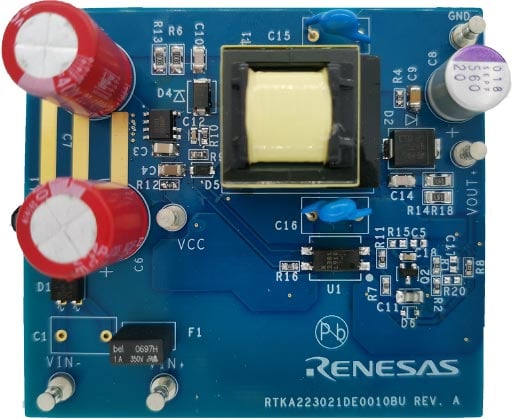

RTKA223021DE0010BU Board Front
RTKA223021DE0010BU Board Front
  • Universal input
  • EMI compliance for EN55022/CISPR22
  • Standby power less than 50mW
  • No audible noise


アプリケーション

  • Home appliances
  • Home automation, IoT, and sensors
  • Metering and Industry control
  • Bias power

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－ソフトウェア
RTKA223021DE0010BU User Manual
PDF 1.10 MB
データシート
RAA223021 Datasheet
PDF 877 KB
2 items

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
PCB設計ファイル
RTKA223021DE0010BU Design Files
ZIP 683 KB
1 item

ボード＆キット

RTKA223021DE0000BU Board Front

RTKA223021DE0000BU

Evaluation
詳しくはこちら

RAA223021 High Voltage Buck Converter Evaluation Board supports 85VAC to 265VAC Input and 12V 667mA Output

The RAA223021 evaluation board (RTKA223021DE0000BU) is a high voltage buck converter that demonstrates a low-cost high performance non-isolated AC/DC convertor. It...

主要ドキュメント:
RTKA223021DE0000BU User Manual
