概要

The DG444 and DG445 monolithic CMOS analog switches are drop-in replacements for the popular DG211 and DG212 series devices. They include four independent single pole single throw (SPST) analog switches and TTL and CMOS compatible digital inputs. These switches feature lower analog ON resistance (ON

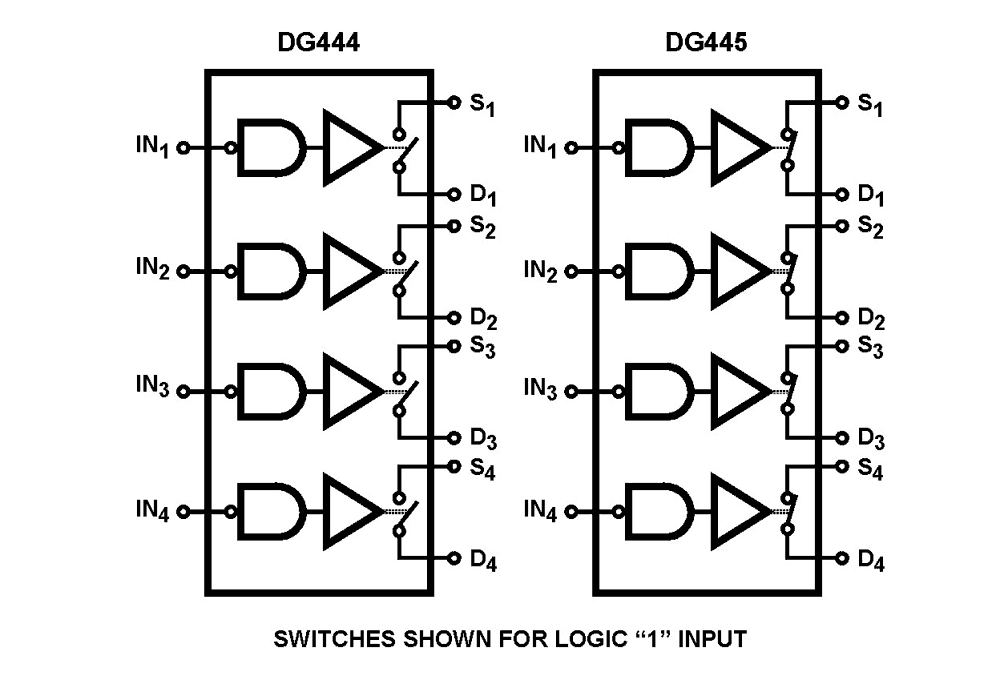

DG444_DG445 Functional Diagram
DG444_DG445 Functional Diagram
  • ON Resistance (Max) 85Ω
  • Low Power Consumption (PD) <35µW
  • Fast Switching Action
  • tON (Max) 250ns
  • tOFF (Max, DG444) 140ns
  • Low Charge Injection
  • Upgrade from DG211, DG212
  • TTL, CMOS Compatible
  • Single or Split Supply Operation
  • Pb-Free Plus Anneal Available (RoHS Compliant)

アプリケーション

  • Audio Switching
  • Battery Operated Systems
  • Data Acquisition
  • Hi-Rel Systems
  • Sample and Hold Circuits
  • Communication Systems
  • Automatic Test Equipment

ドキュメント

タイトル 分類 日付
DG444, DG445 Datasheet
PDF642 KB
データシート
AN535: Design Considerations for a Data Acquisition System (DAS)
PDF843 KB
アプリケーションノート
AN557: Recommended Test Procedures for Analog Switches
PDF468 KB
アプリケーションノート
AN1034: CMOS Analog Multiplexers and Switches, Applications Considerations
PDF300 KB
アプリケーションノート
AN520: CMOS Analog Multiplexers and Switches; Specifications and Application Considerations
PDF270 KB
アプリケーションノート
アナログIC　カタログ
PDF5.10 MBEnglish
カタログ
PA14042 - Minimum Line Quantity Change
PDF363 KB
Product Advisory
PCN14023 - DLA Notification - HVSIGATE 4
PDF114 KB
製品変更通知
PCN12085 - 8l, 14l, 16l SOIC w/ Gold Bond Wire @ ATP as Alternate Assembly Site
PDF152 KB
製品変更通知
PCN11113A - Manufacturing Site Change for Assembly of the Listed Intersil TSSOP Packaged Products - Carsem-M (CAM) - Ipoh, Malaysia
PDF121 KB
製品変更通知
PCN12004 - Wafer Fabrication Process Improvement for the Listed Intersil HVSIGATE Technology Products - Intersil Palm Bay, Florida Facility
PDF136 KB
製品変更通知
PCN11113 - Manufacturing Site Change for Assembly of the Listed Intersil TSSOP Packaged Products - Carsem-M (CAM) - Ipoh, Malaysia
PDF120 KB
製品変更通知

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

製品選択

    Processing table
    型名
    Pkg. Type
    Carrier Type
    MOQ
    ご購入 / サンプル
    DG444DVZ
    play_circleActive
    memory
    spa
    view_in_ar
    サンプル入手可能
    		 TSSOP Tube 1920 サンプルを入手,
    DG444DVZ-T
    play_circleActive
    memory
    spa
    view_in_ar
    		TSSOP Reel 2500
    DG444DYZ
    play_circleActive
    memory
    spa
    view_in_ar
    サンプル入手可能
    		 SOICN Tube 1920 サンプルを入手,
    DG444DYZ-T
    play_circleActive
    memory
    spa
    view_in_ar
    		SOICN Reel 2500
