400MHz Slew Rate Enhanced Rail-to-Rail Output Gain Block
ページセクションへ移動：
概要
説明

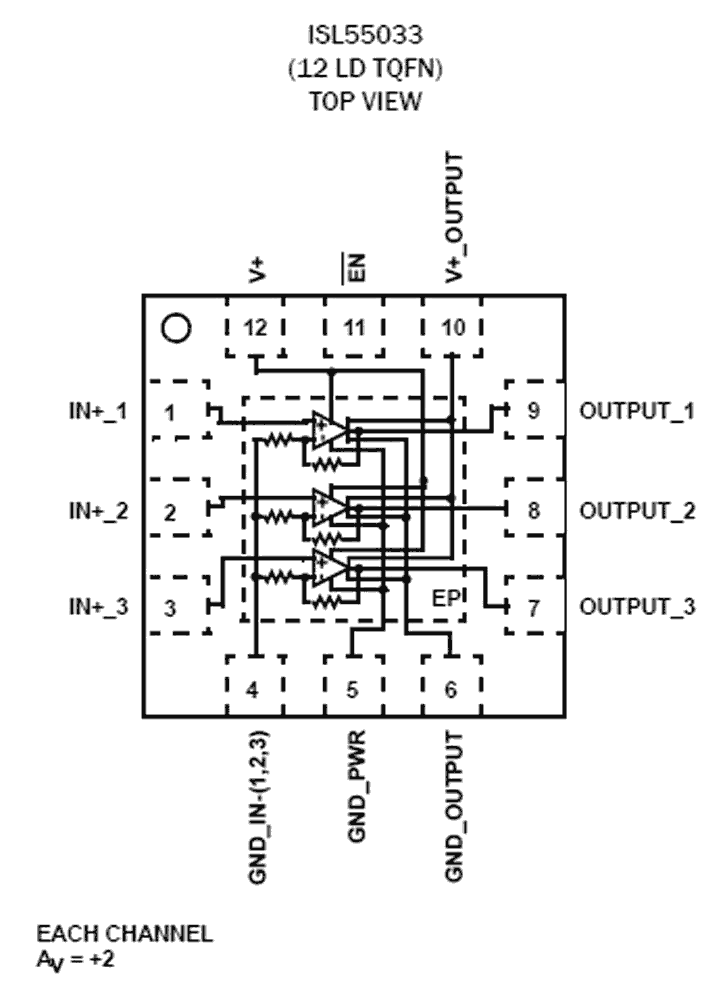

The ISL55033 is a triple rail-to-rail output gain block with a -3dB bandwidth of 400MHz and slew rate of 2350V/μs into a 150Ω load. The ISL55033 has a fixed gain of +2. The inputs are capable of sensing ground. The outputs are capable of swinging to 0. 45V to either rail through a 150Ω resistor connected to V+/2. The ISL55033 is designed for general purpose video applications. The part includes a fast-acting global disable/power-down function. The ISL55033 is available in a 12 Ld TQFN package. Operation is specified over the -40°C to +85°C temperature range.
特長
- 400MHz -3dB bandwidth
- 2350V/μs typ slew rate, RL = 150Ωto V+/2
- Single-supply operation from +3V to +5.5V
- Rail-to-rail output
- Input ground sensing
- Fast 25ns disable time
- Pb-free (RoHS compliant)
アプリケーション
アプリケーション
- Video Amplifiers
- Set-Top Boxes
- Video Distribution
ドキュメント
| 分類 | 日付 | |
|---|---|---|
| PDF 1.16 MB | データシート | |
| PDF 258 KB | トレーニング | |
| PDF 325 KB | トレーニング | |
| PDF 123 KB | EOL通知 | |
| PDF 357 KB | アプリケーションノート | |
5 items
|
||
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
| TQFN | Tube | 1000 | サンプルを入手, | |
| TQFN | Reel | 6000 |
