概要
Description

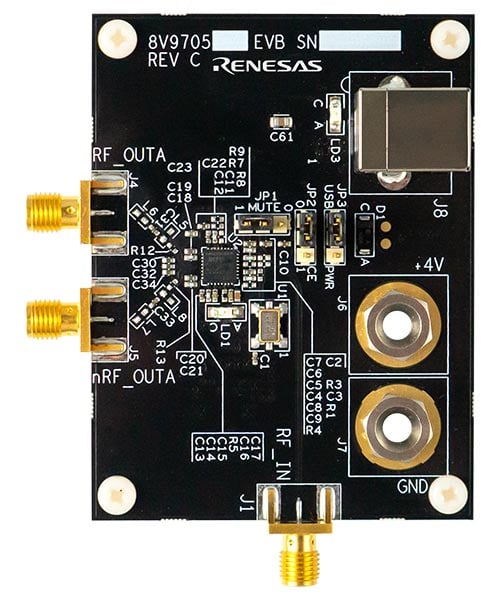

The 8V97052-EVK is designed to help the customer evaluate the 8V97052 RF Synthesizer / PLL. When the board is connected to a PC running Timing Commander software through USB, the device can be configured and programmed through a graphical interface or through register settings, to generate frequencies with best-in-class performance.
特長
- Board comes pre-populated with the 8V97052
- Fully configurable through Timing Commander software
- USB powered for portability
- Onboard 25MHz TCXO plus alternate SMA input provide flexibility for input reference selection
