概要
説明

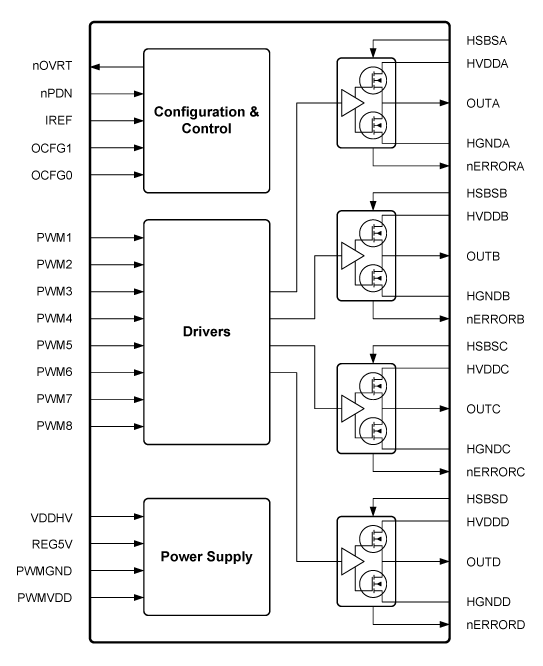

The D2-IPS family (D2-24044) device is a high performance, integrated Class-D amplifier power stage. The four power stage outputs are configurable as four separate Half-Bridge outputs, as two Full-Bridge outputs, or combinations of Half-Bridge and Full-Bridge. Individual power stage overload monitoring, on-chip temperature monitoring, and common alert logic outputs provide protection to integrate with the final system's controller.
特長
- All digital class-D power stage
- Four configurable power stage outputs supporting:
- 2 Channels, Bridged
- 4 Channels, Half-Bridge
- 2 Channels, Half-Bridge, plus 1 Channel, Bridged
- Output Power (bridged)
- 25W (8Ω, <1% THD)
- 30W (8Ω, <10% THD)
- Single HV supply - wide 9V-26V range, plus internally-generated gate drive supply
- Individual channel protection monitoring
- Temperature and undervoltage monitoring
- Efficient 38 Ld HTSSOP package
アプリケーション
ドキュメント
| 分類 | 日付 | |
|---|---|---|
| PDF 1.17 MB | データシート | |
| PDF 184 KB | アプリケーションノート | |
| PDF 147 KB | アプリケーションノート | |
| PDF 297 KB | アプリケーションノート | |
| PDF 363 KB | Product Advisory | |
5 items
|
||
