概要
Description

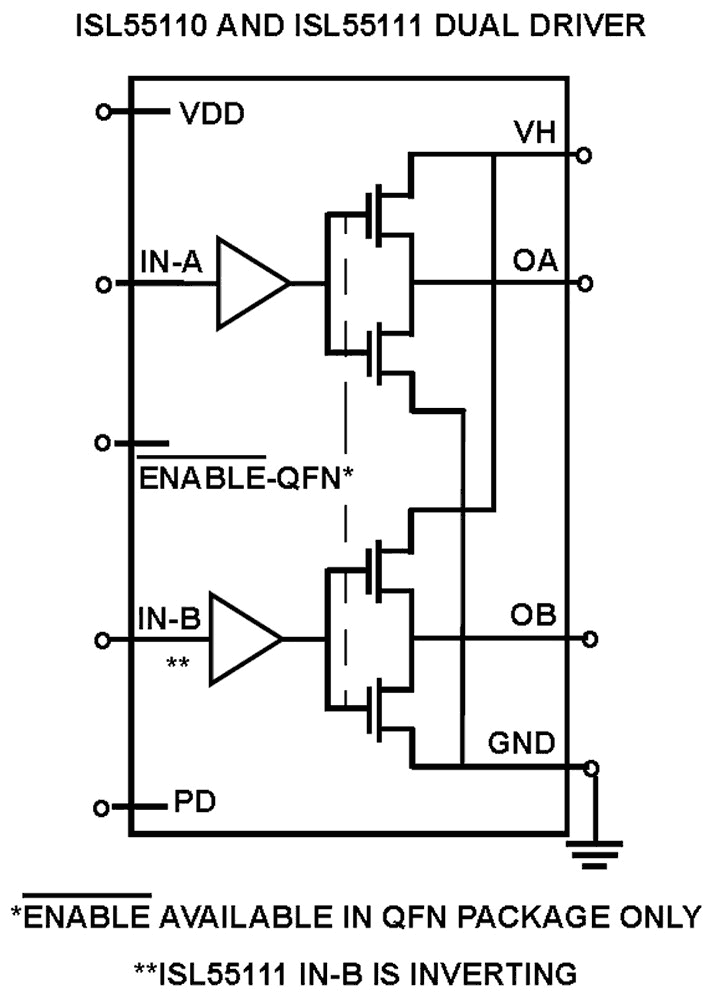

The ISL55111 is a dual high-speed MOSFET driver intended for applications requiring accurate pulse generation and buffering. Target applications include ultrasound, CCD imaging, piezoelectric distance sensing, and clock generation circuits. With a wide output voltage range and low ON-resistance, these devices can drive a variety of resistive and capacitive loads with fast rise and fall times, allowing high-speed operation with low skew, as required in large CCD array imaging applications. The ISL55111 is compatible with 3.3V and 5V logic families and incorporates tightly controlled input thresholds to minimize the effect of input rise time on output pulse width. The ISL55111 has two drivers operating in anti-phase. And, the device has a power-down mode for low power consumption during equipment standby times, making it ideal for portable products. The ISL55111 is available in 16 Ld Exposed pad QFN packaging and an 8 Ld TSSOP, and it is specified for operation over the full -40 °C to +85 °C temperature range.
特長
- 5V to 12V pulse amplitude
- High current drive 3.5A
- 6ns minimum pulse width
- 1.5ns rise and fall times, 100pF load
- Low skew
- 3.3V and 5V logic compatible
- Anti-phase outputs
- Small QFN and TSSOP packaging
- Low quiescent current
- Pb-free (RoHS compliant)
アプリケーション
アプリケーション
- Ultrasound MOSFET drivers
- CCD array horizontal drivers
- Automotive piezo driver applications
- Clock driver circuits
設計・開発
ソフトウェア／ツール
ボード＆キット
ボード＆キット
Dual, High-Speed MOSFET Driver Evaluation Board
The ISL55111EVAL1Z evaluation board is used to evaluate the ISL55111 dual, high-speed MOSFET driver.
The ISL55111 is intended for applications requiring accurate...
Dual, High-Speed MOSFET Driver Evaluation Board
The ISL55111EVAL2Z evaluation board is used to evaluate the ISL55111 dual, high-speed MOSFET driver.
The ISL55111 is intended for applications requiring accurate...
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
| QFN | Tube | 1800 | サンプルを入手, | |
| QFN | Reel | 6000 |
