Enhanced Dual-mode Wireless Power Receiver
NOTICE - The following device(s) are recommended alternatives:
ページセクションへ移動：
Back to top
ECADモデルを調べる
概要

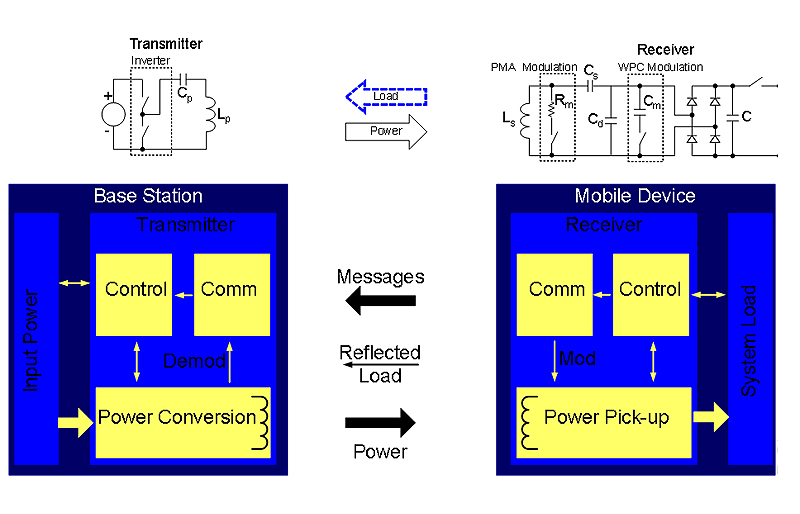

Description
The IDT P9023 is a complete single-chip Wireless Power Receiver which complies with the requirements of both WPC1.1 and PMA Type 1 standards for certification. Integrating a high-efficiency synchronous rectifier, high-efficiency buck converter, and control circuits, the P9023 provides output power up to 5W in accordance with the Qi specification. Switching between WPC and PMA protocols and negotiation of the power exchange is implemented automatically. Operating in Qi mode, power transfer is limited to 5W in accordance with the WPC specification.
NOTICE: This device is restricted to high volume and strategic applications only. For most customers, consider using our general market devices found at www.idt.com/go/WPkits.
特長
-
Complies with requirements of WPC1.1 and PMA Type 1 for certification
-
Compatible with all WPC Receiver coils
-
Integrated Synchronous Full-Bridge Rectifier
-
Integrated Synchronous Buck Converter
-
Optional Back-channel Communication
-
Advanced Foreign Object Detection (FOD)
-
Over-Temperature/Voltage/Current Protection
設計・開発
ソフトウェア／ツール
ボード＆キット
ボード＆キット
Evaluation Board for Enhanced Dual-mode Wireless Power Receiver P9023
The P9023 CSP evaluation board serves to demonstrate the features and performance of the P9023 wireless power receiver solution for the WPC mobile device with RX-A...
主要ドキュメント:
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
| WLCSP | Reel | 79 | I | Yes |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledビデオ&トレーニング
P9023 Dual-mode WPC 1.1 (Qi) and PMA 1.1 Wireless Power Receiver Demo by IDT
Description
IDT has introduced the industry's first dual-mode wireless power receiver compatible with both the Wireless Power Consortium's (WPC) 1.1 "Qi" standard, as well as the Power Matter's Alliance (PMA) 1.1 standard. The innovative solution enables OEMs to use a single wireless power receiver IC to develop mobile devices fully compatible with the latest versions of both Qi and PMA charging bases. This video offers a lab demonstration and product overview.
The P9023 is a WPC 1.1- and PMA 1.1-compliant single-chip wireless power receiver consisting of a synchronous full-bridge rectifier, high-efficiency synchronous buck converter, and embedded microcontroller used to optimize power delivery to the mobile device's load, while minimizing application footprint, component count, and thermal dissipation. The new wireless power receiver supports all WPC and PMA receiver coils, as well as proprietary and PCB-based coils for maximum versatility in a wide range of applications, including smartphones, tablets, phablets, sleeves and other accessories.
Presented by Brett Etter, business development manager at IDT. For more information about IDT's award-winning wireless power portfolio, visit http://www.wirelesspowerbyidt.com.
Transcript
Hello. My name is Brett Etter and I 'm the Business Development Manager for Wireless Power here at IDT. Today we've got a real treat for you. We've got a demo of our brand new wireless power receiver that does dual mode both Qi and PMA compatible license. First we'll start with a quick overview of the product and then get right into the demo.
So a little about our dual mode wireless power receiver, the IDTP9023. It is a fully integrated single chip receiver solution that is type one PMA compliant as well as WPC 1.1 complaint. It does manage the 5 watts of power in both modes, and in proprietary mode, it will go up to 8 watts. It manages the dual mode switching between WPC and PMA automatically without any user intervention or supervision. It includes an integrated synchronous full-bridge rectifier on the front end, as well as a synchronous buck output regulator on the output side. Full I²C interface and comes in a WLCSP package. It does include a full set of protections as well as all of the compliant WPC 1.1 and PMA foreign object detection mechanisms. The safety features of the device include a full set of protection mechanisms, over current, over voltage, over temperature as well as a full suite of foreign object detection capabilities.
This is the schematic for the entire solution of the 9023 including the optional external B2 prom for development which is not required for production as well as both the input and output USB connectors. It only takes approximately 30 external components on top of the integrated single IC.
Here we have the demonstration. We have a Qi compatible transmitter pad. We have the PMA compatible transmitter pad. And we have the iPhone 5 connected via USB cable over to our dual mode wireless power receiver. Place the receiver on the Qi pad, and you can see that it starts to charge. Place the same receiver on the PMA pad, and we see it starts to charge. There we have a demonstration of the full capabilities of our dual mode Qi and PMA receiver.
To find out more about these dual mode receivers, as well as the entire family of transmitters and receivers from IDT, you can check out wirelesspowerbyIDT.com.
