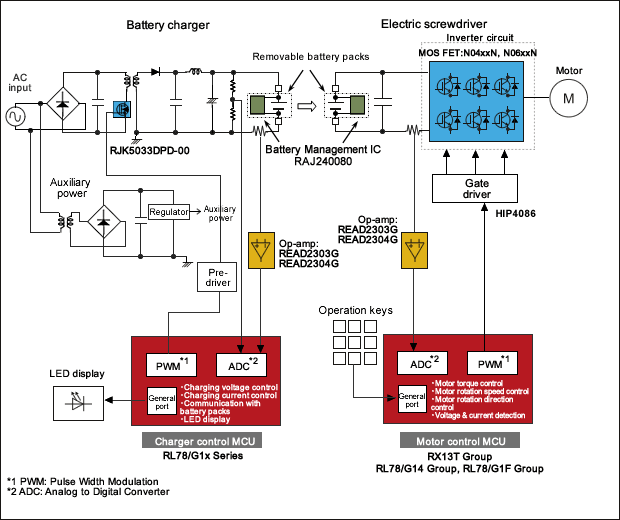

The Renesas RL78/G14 Group, RL78/G1F Group and RX13T Group are suitable for use in motor control applications in electric screwdrivers. These microcontrollers feature low power consumption, which makes possible increased energy savings and more compact electric screwdrivers, contributing to longer battery life and making them an eco-friendly solution. Renesas also offers comprehensive solutions for electric drivers in the form of the RL78/G1x Series, which is suitable as the microcontroller for the charger, and highly efficient power MOSFETs for motor drive inverter and charger control. Renesas offers Battery Management ICs for Removable Battery pack to enhance the safety of the battery.
Block | Semiconductor Device | Recommended Products | Features |
---|---|---|---|
Motor Control MCU | MCU | RX13T Group RL78/G14 Group RL78/G1F Group |
32-bit MCU including on-chip FPU, single motor control applications, reduce board area and BOM costs Three-phase complementary PWM output, Rich line-up Multifunctional microcontrollers with enhanced functionality suitable for sensor-less BLDC motor control |
Charger Control MCU | MCU | RL78/G1x Series | 16-bit MCU, Covers general features, Rich line-ups |
Sensor Output | Op-amp | READ2303G READ2304G |
Full range input/output, high slew rate Low power consumption, high slew rate |
Inverter | MOSFET | N04xxN, N06xxN Series | Low on-resistance (2.3m~7.5mΩ (Typ.)/VDSS 40V) |
Gate Driver | 80V, 500mA, 3-Phase MOSFET Driver | ||
MCU Peripheral | Sensor signal amplification CMOS op-amp | READ2303G READ2304G |
Full range input/output, high slew rate Low power consumption, high slew rate |
Power Element of Charger | MOSFET | RJK5033DPD-00 | Low on-resistance, high-speed switching |
Removable Battery Packs | Battery management IC | RAJ240080 | 2 to 5 Series Li-ion Battery Manager |
