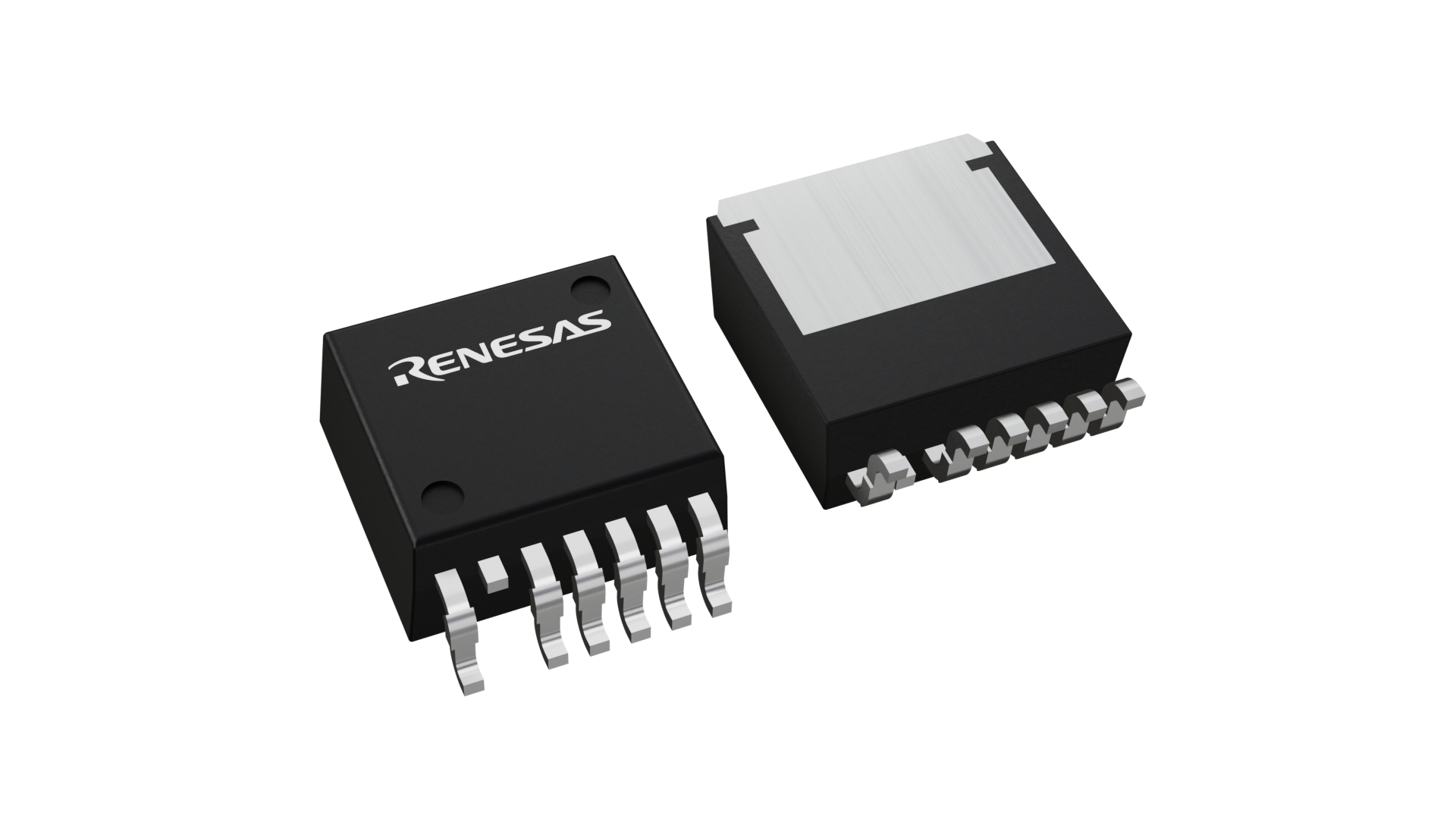

3D illustration featuring top and bottom of MP 25ZU IC chip package with 252 lead count

RBA250N04AHPF-4UA01#GB0

Active
Nch Power MOSFET 40V 250A 0.85mohm TO-263-7 / D2PAK-7 for Automotive
RBA250N04AHPF-4UA01 40V – 250A – N-channel Power MOSFET Application: AutomotiveLearn more about RBA250N04AHPF-4UA01

Package Information

CAD Model: View CAD Model
Pkg. Type: MP-25ZU
Pkg. Code: pkg_20043
Lead Count (#): 7
Pkg. Dimensions (mm): 10 x 9.15 x 4.65
Pitch (mm):

Environmental & Export Classifications

Moisture Sensitivity Level (MSL) 1
Pb (Lead) Free Yes
ECCN (US) EAR99
HTS (US) 8541.29.0040
RoHS (RBA250N04AHPF-4UA01#GB0) EnglishJapanese

Product Attributes

Lead Count (#) 7
Carrier Type Embossed Tape
Moisture Sensitivity Level (MSL) 1
Pb (Lead) Free Yes
Country of Assembly MALAYSIA
Country of Wafer Fabrication JAPAN
Channels (#) 1
Ciss (Typical) (pF) 12900
Function Power MOSFETs
Gate Level Standard
ID (A) 250
Id max @ 25°C (A) 250
Lead Compliant No
Length (mm) 10
MOQ 800
Mounting Type Surface Mount
Nch/Pch Nch
Pch (W) 348
Pkg. Dimensions (mm) 10 x 9 x 4.65
Pkg. Type MP-25ZU
Price (USD) $2.515
Qg typ (nC) 245
Qualification Level Automotive
RDS (ON) (Max) @10V or 8V (mohm) 0.85
RDS (ON) (Typical) @ 10V / 8V (mohm) 0.72
Series Name ANL3
Standard Pkg. Type TO-263-7 / D2PAK-7
Tape & Reel No
Thickness (mm) 4.65
VDSS (Max) (V) 40
VGSS (V) 20
Vgs (off) (Max) (V) 4
Width (mm) 9

Description

The RBA250N04AHPF-4UA01 is an N-channel Metal Oxide Semiconductor Field Effect Transistor (MOSFET) designed for high current switching applications.

Learn more about RBA250N04AHPF-4UA01
