Renesas Rad Hard Power Management Reference Design for Xilinx's Space Grade XQRKU060
Jump to Page Section:
Overview
Description

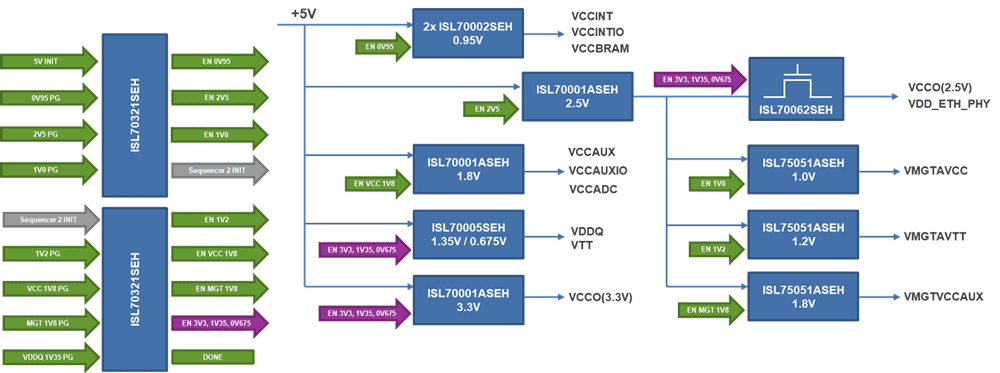

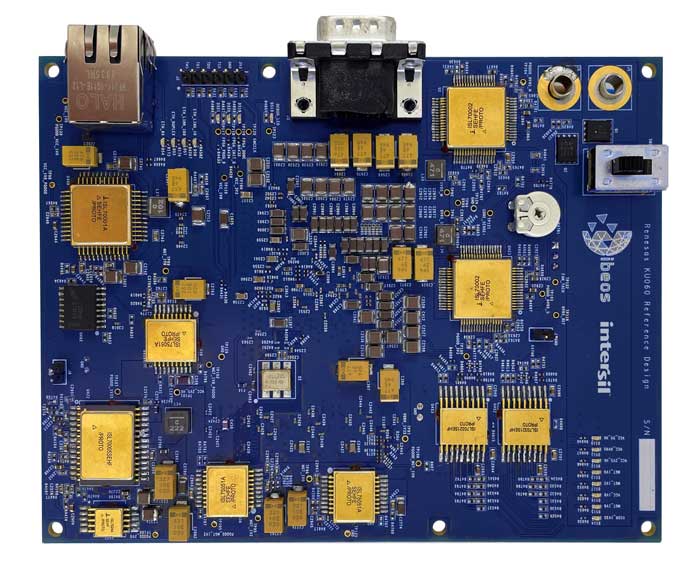

Over the last decade satellites and spacecrafts have seen an exponential increase in the need for on-board data processing and storage demands. Additionally, major satellite manufacturers have recently announced their latest satellites to be modular, fully digital and capable of in-orbit reconfigurability. To meet these demands, satellite and payload manufacturers are using high-end FPGAs, ASICs, and processors. Xilinx’s Kintex XQRKU060 FPGA is a radiation hardened FPGA that has comparable performance to commercial counterparts in demanding computing applications. The Kintex XQRKU060 requires a complex power solution with multiple low voltage supply rails that can deliver high currents and a need for power supply sequencing to eliminate high inrush currents. In collaboration with Xilinx and Ibeos, Renesas offers a Kintex XQRKU060 development board with the FPGA powered by Renesas' Radiation Hardened products.
Features
- Fully radiation hardened power solution
- All power management devices are DLA qualified with MIL-PRF-38535 manufacturing
- KU060 FPGA footprint compatibility with the spaceflight part and the military temp. part
- Peripheral support circuitry includes:
- 64-bit wide DDR3
- 256 Mbit NOR flash
- RS-485 interface
- JTAG programming interface
- Ethernet interface via an RJ45 connector
Design & Development
Software & Tools
Processing table
ISLKU060DEMO1Z Active |
