Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator
Jump to Page Section:
Overview
Description
The ISL70001ASEH is a radiation hardened and SEE hardened high-efficiency monolithic synchronous buck regulator with integrated MOSFETs. This single-chip power solution operates over an input voltage range of 3V to 5.5V and provides a tightly regulated output voltage that is externally adjustable from 0.8V to ~85% of the input voltage. Output load current capacity is 6A for TJ <+145 °C. The ISL70001ASEH utilizes peak current-mode control for excellent output load transient response and features integrated compensation and switches at a fixed frequency of 1MHz to reduce component size and count. In an application where two POLs are needed, two ISL70001ASEH devices can be synchronized 180° out-of-phase to reduce the overall input RMS ripple current. The internal synchronous power switches are optimized for high efficiency and good thermal performance. The ISL70001ASEH incorporates fault protection for the regulator. The protection circuits include input undervoltage, output undervoltage and output overcurrent. High integration and class-leading radiation tolerance make the ISL70001ASEH an ideal choice to power many of today’s small form factor applications. Two devices can be synchronized to provide a complete power solution for large-scale digital ICs, like field-programmable gate arrays (FPGAs), that require separate core and I/O voltages.
Features
- ±1% reference voltage over line, load, temperature, and radiation
- Current mode control for excellent dynamic response
- Full mil-temp range operation (TA = -55 °C to +125 °C)
- 50% lower shutdown supply current than the ISL70001SEH
- Available in a thermally enhanced heatsink package - R48.B
- Highly efficient: 94% peak efficiency
- Operates from 3V to 5.5V supply
- Adjustable output voltage
- Two external resistors set VOUT from 0.8V to ~85% of VIN

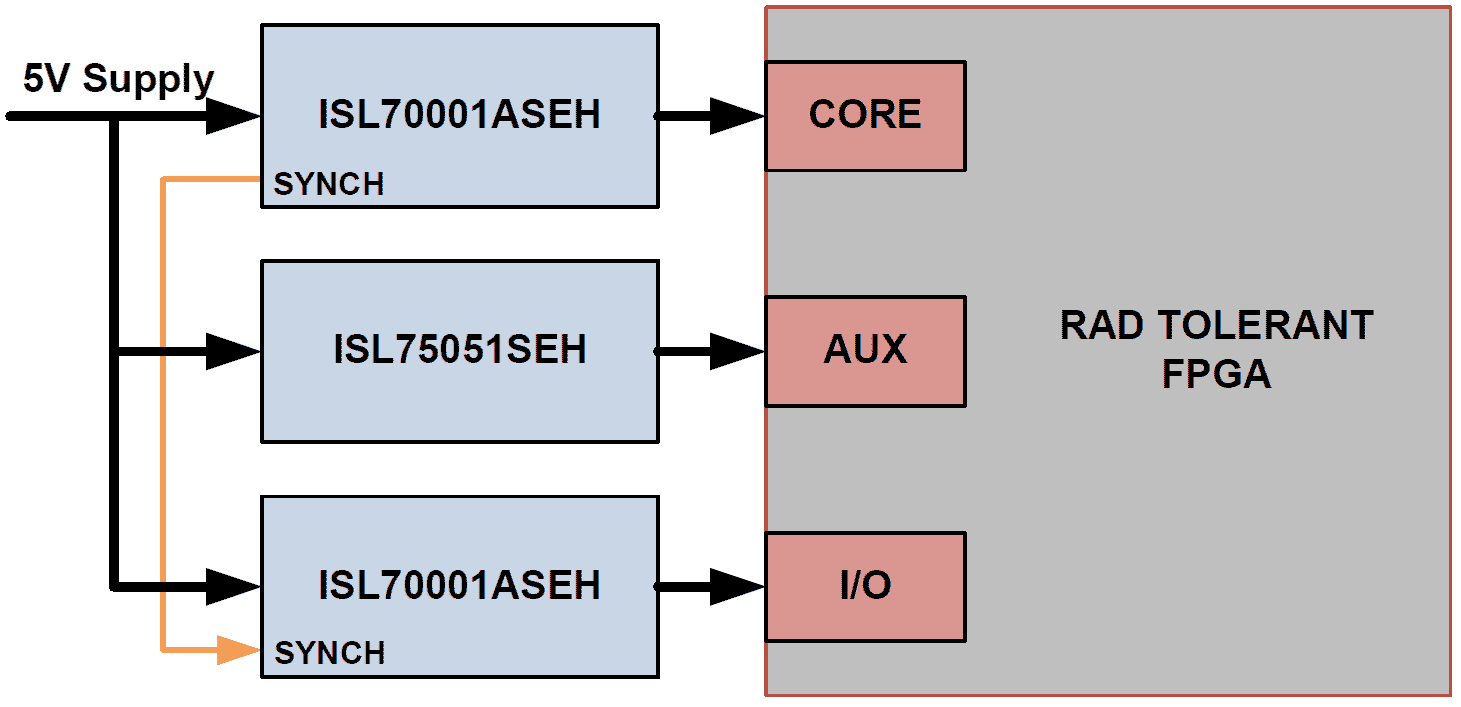

- Bidirectional SYNC pin allows two devices to be synchronized 180° out-of-phase
- Power-good output voltage monitor
- Adjustable analog soft-start
- Input undervoltage, output undervoltage and output overcurrent protection
- Electrically screened to DLA SMD 5962-09225
- QML qualified per MIL-PRF-38535 requirements
- Radiation hardness
- Total dose [50-300rad(Si)/s]: 100krad(Si)
- Total dose [<10mrad(Si)/s]: 100krad(Si)* * Product capability established by initial characterization. The EH version is acceptance tested on a wafer-by-wafer basis to 50krad(Si) at low dose rate.
- SEE hardness
- SEL and SEB LETeff: 86.4MeV/mg/cm2 min
- SEFI X-section (LETeff = 86.4MeV/mg/cm2) 1.4 x 10-6 cm2 max
- SET LETeff (< 1 pulse perturbation) 86.4MeV/mg/cm2 min
Applications
Applications
- FPGA, CPLD, DSP, CPU core or I/O voltages
- Low-voltage, high-density distributed power systems
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.59 MB | Datasheet | ||
| PDF 414 KB | Application Note | ||
| PDF 249 KB | Application Note | ||
| PDF 338 KB | Application Note | ||
| PDF 467 KB | Brochure | ||
| PDF 4.85 MB | Brochure | ||
| PDF 1.32 MB | Manual - Development Tools | ||
| PDF 498 KB | Manual - Development Tools | ||
| Other | |||
| PDF 360 KB | Price Increase Notice | ||
| PDF 150 KB | Product Advisory | ||
| PDF 448 KB | Report | ||
| PDF 2.92 MB | Report | ||
| PDF 437 KB | Report | ||
| PDF 410 KB | Technical Brief | ||
| PDF 799 KB | White Paper | ||
| PDF 522 KB | White Paper | ||
| PDF 533 KB | White Paper | ||
18 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Rad Hard Vitex 5 FPGA Power Solution Reference Design
Renesas offers a complete solution for powering radiation hardened FPGAs. Many space-grade FPGAs require a core voltage of 1.0V, which is supplied by the ISL70002SEH,...
Featured Documents:
Rad Hard & SEE Hard 6A Synchronous Buck Regulator Evaluation Board
The ISL70001ASEHEV1Z evaluation board is used to evaluate the ISL70001ASEH TID and SEE radiation hardened 6A synchronous buck regulator IC with integrated...
Featured Documents:
Renesas Rad Hard Power Management Reference Design for Xilinx's Space Grade XQRKU060
Over the last decade satellites and spacecrafts have seen an exponential increase in the need for on-board data processing and storage demands. Additionally, major...
Featured Documents:
Power Management Reference Design for AMD Versal XQRVC1902
The ISLVERSALDEMO2Z demo board provides the power management for the AMD Xilinx Space Grade Versal ACAP AI Core VC1902 using Renesas' Radiation Hardened Power...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| CQFP | Tray | 1 | |||
| CQFP | Tray | 1 | |||
| CQFP | Tray | 25 | 5962R0922503VXC | ||
| CQFP | Tray | 25 | 5962R0922503VYC | ||
| 10 | 5962R0922503V9A | ||||
| DIE | 5 |
