Radiation Hardened Ultra-Low Noise, Precision Voltage Reference
Jump to Page Section:
Overview
Description
The ISL71090SEH25 is an ultra-low noise, high DC accuracy precision voltage reference with a wide input voltage range from 4V to 30V. The ISL71090SEH25 uses the Intersil Advanced Bipolar technology to achieve 2µVP-P noise at 0.1Hz with an accuracy over temperature of 0.15%. The ISL71090SEH25 offers a 2.5V output voltage with 10ppm/°C temperature coefficient and also provides excellent line and load regulation. The device is offered in an 8 Ld flatpack package. The ISL71090SEH25 is ideal for high-end instrumentation, data acquisition and applications requiring high DC precision where low noise performance is critical.

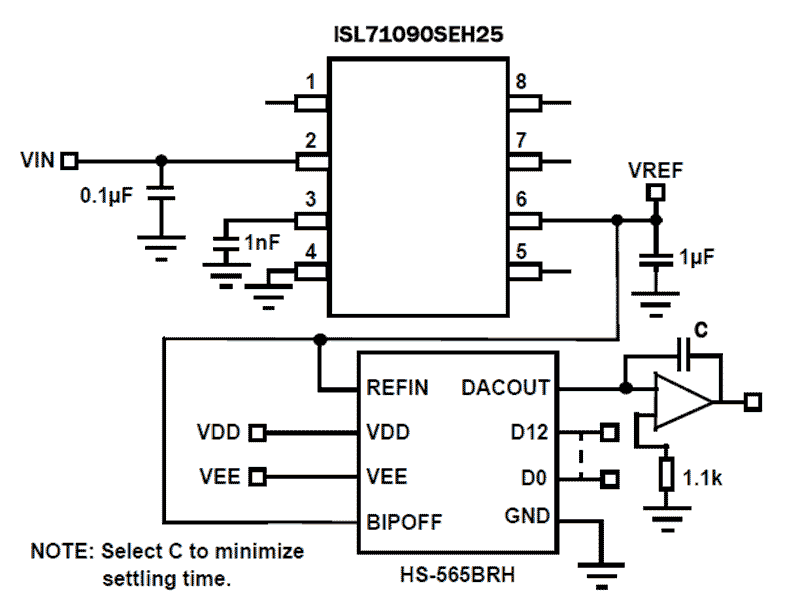

Features
- Reference output voltage: 2.5V ±0.05%
- Accuracy over temperature: ±0.15%
- Output voltage noise: 2µVP-P typical (0.1Hz to 10Hz)
- Voltage accuracy over radiation: ±0.175%
- Supply current: 930µA (typical)
- Tempco (box method): 10ppm/°C Max
- Output current capability: 20mA
- Line regulation: 8ppm/V
- Load regulation: 2.5ppm/mA
- Operating temperature range: -55°C to +125°C
- Radiation environment
- High dose rate (50-300rad(Si)/s): 100krad(Si)
- Low dose rate (0.01rad(Si)/s): 100krad(Si)*
- SET/SEL/SEB: 86MeV•cm2/mg
*Product capability established by initial characterization. The "EH" version is acceptance tested on a wafer-by-wafer basis to 50krad(Si) at low dose rate - Electrically screened to SMD 5962-13211
Applications
Applications
- RH voltage regulators precision outputs
- Precision voltage sources for data acquisition system for
- space applications
- Strain and pressure gauge for space applications
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 661 KB | Datasheet | ||
| PDF 338 KB | Application Note | ||
| PDF 467 KB | Brochure | ||
| PDF 4.85 MB | Brochure | ||
| PDF 285 KB | Manual - Development Tools | ||
| Other | |||
| PDF 83 KB | Product Advisory | ||
| PDF 258 KB | Report | ||
| PDF 610 KB | Report | ||
| PDF 2.53 MB | Report | ||
| PDF 252 KB | White Paper | ||
| PDF 533 KB | White Paper | ||
12 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Radiation Hardened Ultra-Low Noise, Precision Voltage Reference Evaluation Board
The ISL71090SEH25EV1Z evaluation board is designed to measure the performance of the radiation hardened, ultra-low noise, high precision ISL71090SEH voltage reference...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| CFP | Tray | 1 | |||
| CFP | Tray | 25 | 5962R1321102VXC | ||
| 100 | 5962R1321102V9A | ||||
| Die Waffle Pack | 5 | 5962R1321102VXC |
