Sensor Signal Conditioner for Piezoresistive Bridge Sensors
Jump to Page Section:
Overview
Description

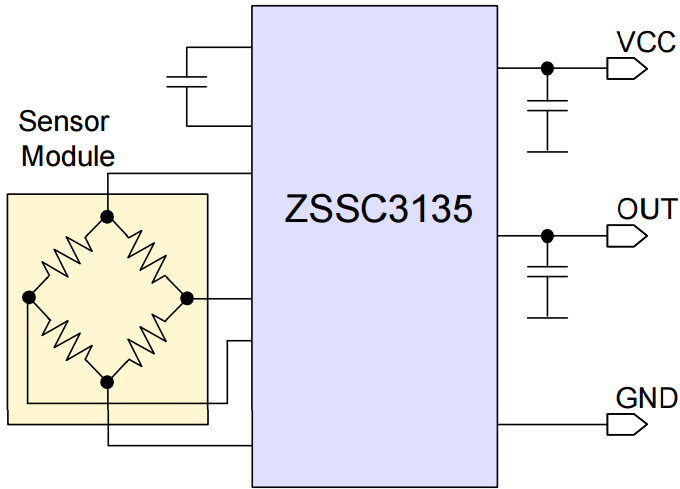

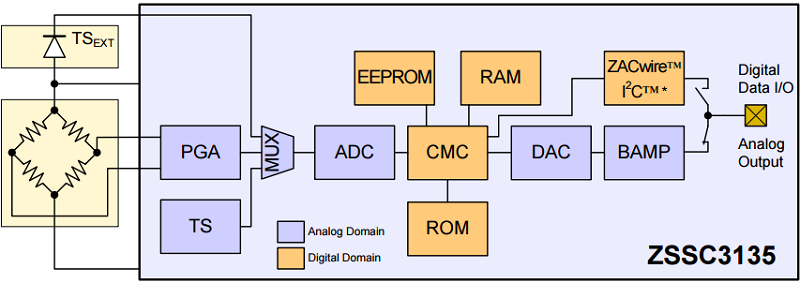

The ZSSC3135 is a member of the ZSSC313x product family of CMOS integrated circuits designed for automotive and industrial sensor applications. All family members are well suited for highly accurate amplification and sensor-specific correction of resistive bridge sensor signals. An internal 16-bit RISC microcontroller running a correction algorithm compensates sensor offset, sensitivity, temperature drift, and nonlinearity of the connected sensor element. The required calibration coefficients are stored by the single-pass calibration procedure in an on-chip EEPROM. The ZSSC3135 is specially designed for piezo-resistive bridge sensor elements. The amplification stage with an analog gain of 105 in combination with the optional temperature compensation using an external temperature sensor fits the requirements of piezo-resistive sensor applications perfectly.
Features
- Adjustable to nearly all resistive bridge sensor types, analog gain of 105, overall gain up to 420
- Sample rate up to 200 Hz
- ADC resolution 13/14 bit
- Safety functionality sensor connection
- External temperature sensor
- Digital compensation of sensor offset, sensitivity, temperature drift and nonlinearity
- Output options: ratiometric analog voltage output (5% to 95% maximum, 12.4 bit resolution) or ZACwire™ (digital one-wire-interface)
- Sensor biasing by voltage
- High voltage protection up to 33V
- Supply current: max. 5.5mA
- Reverse polarity and short circuit protection
- Operation temperature range as wide as -40°C to +150°C
- Traceability by user-defined EEPROM entries
Comparison
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 346 KB | |
| Guide | 7Z 1.21 MB | |
| Technical Brief | PDF 440 KB | |
| Application Note | PDF 427 KB | |
| Application Note | PDF 1.14 MB | |
| Application Note | PDF 273 KB | |
| Manual - Development Tools | PDF 2.28 MB | |
| Manual - Hardware | PDF 1.13 MB | |
| Datasheet - Short-form | PDF 150 KB | |
9 items
|
||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Mass Calibration System for ZSSC313x
The ZSSC313x Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSSC313x Sensor Signal...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Range |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|
| Part Number | |||||
| WAFER | 0 | -40 to 125°C | Wafer | ||
| WAFER | 0 | -40 to 125°C | Wafer | ||
| SSOP | 14 | -40 to 125°C | Reel | ||
| SSOP | 14 | -40 to 125°C | Tube | ||
| WAFER | 0 | -40 to 150°C | Wafer | ||
| WAFER | 0 | -40 to 150°C | Wafer | ||
| SSOP | 14 | -40 to 150°C | Reel | ||
| SSOP | 14 | -40 to 150°C | Tube |
