High-Performance Relative Humidity and Temperature Sensor
Jump to Page Section:
Overview
Description
The HS3004 is a highly-accurate, fully-calibrated relative humidity and temperature sensor. The high accuracy, fast measurement response time, and long-term stability, along with the small package size, makes the HS3004 ideal for a wide number of applications from portable to harsh environments.
An integrated calibration and temperature compensation logic provides fully corrected RH and T values via a standard I²C output. The measured data is internally corrected and compensated for accurate operation over a wide range of temperature and humidity levels–user calibration is not required.

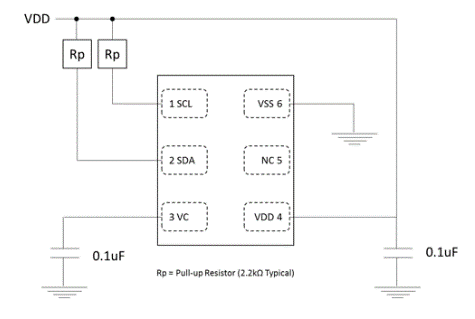

Features
- RH accuracy: ±3.8% RH typical
- Fast RH response time (typical 6 seconds)
- Temperature sensor accuracy: ±0.2°C typical (-10 to +80°C)
- 14-bit resolution: 0.01% RH (typical)
- Low power consumption: 1.0µA average (one RH+T measurement per second, 8-bit resolution, 1.8V supply)
- Extended supply voltage: 2.3V to 5.5V
Applications
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF356 KB
|
Datasheet
|
||
Related Files:
|
Application Note
|
||
PDF129 KB Related Files:
|
Application Note
|
||
PDF189 KB Related Files:
|
Application Note
|
||
PDF188 KB Related Files:
|
Application Note
|
||
PDF2.03 MB
|
Application Note
|
||
PDF190 KB Related Files:
|
Application Note
|
||
PDF1.93 MB
|
Application Note
|
||
PDF192 KB Related Files:
|
Application Note
|
||
PDF1.07 MB
|
End Of Life Notice
|
||
Overview
|
|||
PDF99 KB
|
Product Change Notice
|
||
PDF114 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Software & Tools
| Sensor Software Modules for Renesas MCU PlatformsMiddleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
Downloads:
HS300x Sample application - Sample CodeRX Family HS300X Sensor Control Module Firmware Integration Technology Rev.1.23RX Family HS300X Sensor Control Module Firmware Integration Technology Rev.1.23RL78 Family HS300x Sensor Control Module Software Integration SystemRL78 Family HS300x Sensor Control Module Software Integration System
|
Sensor | Renesas |
Sample Code
Sample Code
| Title | Type | Date | |
|---|---|---|---|
ZIP2.25 MB Related Files:
Application: IoT Applications Function: Communication Interface, Driver or Library, Application Example |
Sample Code |
||
ZIP3.74 MB Related Files:
Application: IoT Applications Function: Communication Interface, Application Example, Driver or Library Compiler: CC-RX, CC-RL, ICCRL78 IDE: CS+, e2 studio, IAR EWRL78 |
Sample Code |
||
ZIP3.74 MB Related Files:
Application: IoT Applications Function: Communication Interface, Application Example, Driver or Library |
Sample Code |
||
ZIP2.93 MB Related Files:
Application: Consumer Electronics, Industrial Function: Analog, Communication Interface, Driver or Library, OS Compiler: CC-RX, ICCRX, GNURX IDE: CS+, e2 studio, IAR EWRX |
Sample Code |
Boards & Kits
Boards & Kits
Relative Humidity Sensor Evaluation Kit
The SDAH01 evaluation kit is used to assess the HS300x high performance humidity and temperature sensor chip. The hardware allows users to carry out data logging...
Featured Documents:
Portable Relative Humidity and Temperature Sensing System
IDT’s SDAH02 LCD evaluation board allows for easy monitoring of the ambient relative humidity and temperature. The system combines the HS300x relative humidity and...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| LGA | 6 | I | Yes | Cut Tape |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
Relative Humidity Sensors (RH Sensors)
A brief introduction to Renesas’ relative humidity sensors that offer high accuracy and fast measurement response times, enabling customers to improve overall system performance and feedback control. The humidity sensors feature excellent long-term stability as a result of a robust silicon carbide construction and an innovative design, improving useful lifetime and lowering effective cost.
