Overview
Description

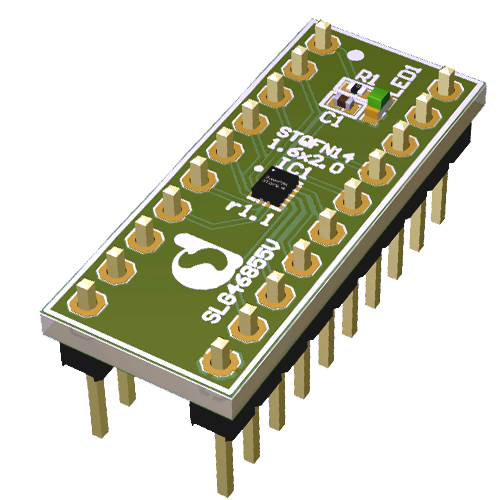

The SLG46855V-DIP 20-pin DIP Prototyping Board is perfect for breadboarding and fast prototypes. It requires the DIP Adapter (SLG4SA-DIP) to use it with the Advanced Development Board.
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 2.92 MB | Datasheet | ||
| PDF 1.50 MB | Manual - Development Tools | ||
2 items
|
|||
Design & Development
Related Boards & Kits
Boards & Kits
GreenPAK DIP Development Board
The SLG4DVKDIP is perfect for breadboarding and fast prototyping. Working in tandem with the GreenPAK Designer software, GreenPAK DIP Development Board allows designers...
