12V Power Distribution Controller Evaluation Board
The ISL6115AEVAL1Z evaluation board is default provided as a +12V high-side switch controller with the CR level set at 2.5A.
Bias and load connection points are...
12V Power Distribution Controllers
Jump to Page Section:
Overview
Description

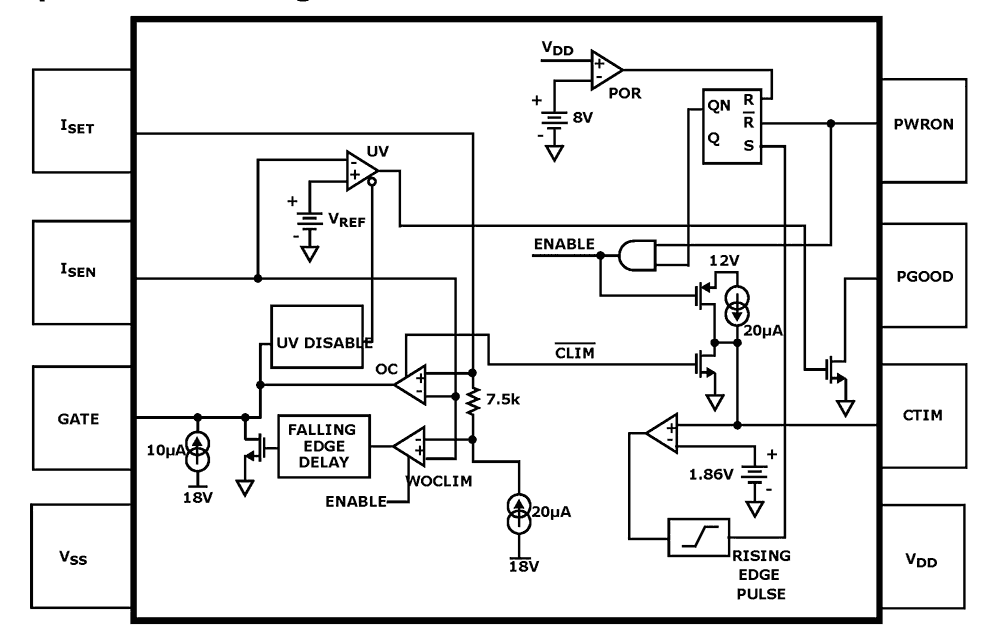

This fully featured hot swap power controller targets +12V applications. The ISL6115A with its integrated charge pump has a higher (6. 5V vs 5V) gate drive than its sister part the ISL6115 making this part an immediate efficiency improvement replacement. This IC features programmable overcurrent (OC) detection, current regulation (CR) with time delay to latch-off and soft-start. The current regulation level is set by 2 external resistors; RISET sets the CR Vth and the other is a low ohmic sense resistor across, which the CR Vth is developed. The CR duration is set by an external capacitor on the CTIM pin, which is charged with a 20µA current once the CR Vth level is reached. The IC then quickly pulls down the GATE output latching off the pass FET.
Features
- HOT SWAP Single Power Distribution Control for +12V
- Overcurrent Fault Isolation
- Programmable Current Regulation Level
- Programmable Current Regulation Time to Latch-Off
- Rail-to-Rail Common Mode Input Voltage Range
- Enhanced Internal Charge Pump Drives N-Channel MOSFET gate to 6.5V above IC bias.
- Undervoltage and Overcurrent Latch Indicators
- Adjustable Turn-On Ramp
- Protection During Turn-On
- Two Levels of Overcurrent Detection Provide Fast Response to Varying Fault Conditions
- 1µs Response Time to Dead Short
- Pb-Free (RoHS Compliant)
Applications
Applications
- Power Distribution Control
- Hot Plug Components and Circuitry
Documentation
|
|
Date | |
|---|---|---|
| PDF 508 KB | Datasheet | |
| PDF 5.51 MB 日本語 | Brochure | |
| PDF 295 KB | White Paper | |
| PDF 152 KB | Product Change Notice | |
| PDF 2.20 MB | Other | |
| PDF 509 KB | Application Note | |
| PDF 397 KB | Application Note | |
7 items
|
||
Design & Development
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| SOICN | Tube | 980 | Get Samples, | |
ISL6115ACBZ-T Active Samples Available |
SOICN | Reel | 5000 | Get Samples, |
| SOICN | Tube | 5880 | Get Samples, | |
ISL6115AIBZ-T Active Samples Available |
SOICN | Reel | 5000 | Get Samples, |
ISL6115AIBZ-T7A Active Samples Available |
SOICN | Reel | 6000 | Get Samples, |
