P8300 Programmable 6-Channel PMIC Evaluation Board
The P8300-EVAL is an evaluation platform which demonstrates the features of P8300. It has the built-in I²C to USB interface which allows programming and debugging of...
Highly-integrated, Flexible Multi-channel PMIC
Jump to Page Section:
Overview
Description

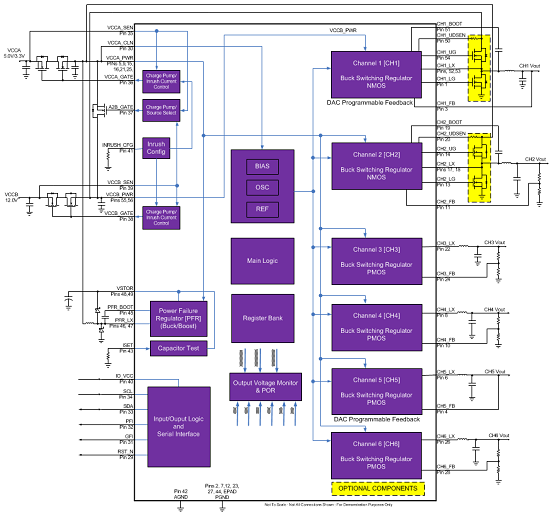

The P8300 is a highly-integrated, highly-configurable, dual-input PMIC that addresses multiple applications (3.3 V / 5 V, 12 V), and offers scalable power on two rails using external power FETs. The device also features programmable startup sequences and target output voltages, an I²C / SMBUS compatible interface, programmable outputs and sequences via internal OTP memory, and a 35 V-capable power backup system.
For more information or to request documentation, please contact your local IDT sales representative.
Features
- Dual Input voltage rails to support wide range of board configurations and form factors (SAS, SATA, PCIe)
- 2.97 V to 5.5 V on VCCA
- 4.5 V to 14 V on VCCB

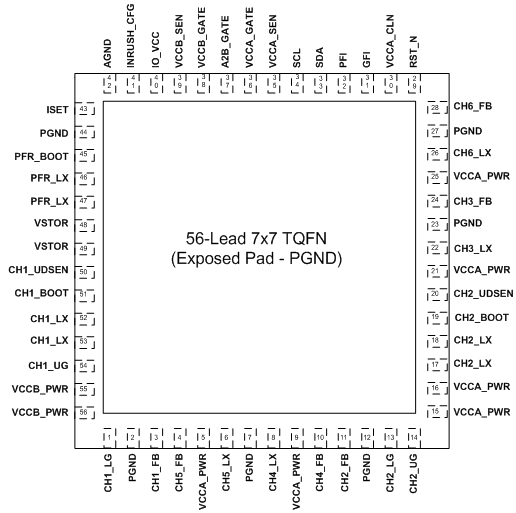

- 25 W nominal output power with support for 3.3 / 5 / 12 Vin in a tiny 7x7 mm TQFN package
- 2 buck regulators (500 kHz or 1 MHz) support external MOSFETs for higher current applications
- 4 internal MOSFET buck regulators (2 MHz)
- Integrated PFI (Power Failure Indicator) buck-boost regulator to support backup system with 4.5 V - 35.5 V
- Complete fault protection: Input OVP, output OVP, OCP, UV, soft-start, soft-stop, over temperature protection
- Programmable power-loss detection threshold
- I²C / SMBUS compatible interface with OTP and I²C programming via GUI
Comparison
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.73 MB | |
| Brochure | PDF 5.51 MB 日本語 | |
| Product Change Notice | PDF 983 KB | |
| Product Brief | PDF 1.55 MB | |
4 items
|
||
Design & Development
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| VFQFPN | 56 | Tray | I | Yes | Get Samples, | |
| VFQFPN | 56 | Reel | I | Yes | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
Renesas Samples
Select an orderable part number:
| Orderable Part ID | Sample |
|---|---|
| P8300-00NDGI | Availability |
| P8300-00NDGI8 | Availability |
