Digital Multiphase DC/DC Switching Controllers

Renesas’ second generation of full digital multiphase PWM controllers provides the industry’s broadest and most scalable solution offerings, with up to 20-phase native support across three independent outputs. The latest family of controllers supports a wide range of interfaces including Intel VR13/VR13HC and IMVP8 specifications, as well as the AMD SVI2 interface. When combined with our industry’s broadest offering of Smart Power Stage modules, ranging from 20A to 90A, the entire power solution can be achieved to meet any rail or power requirement.

Product Selection Table

Processing table

Part Number (31) Featured Products (0) Additional Products	Outputs (Max) (#)	Phases (Max) 2 3 4 5 6 7 8 9 12 16 20 6+1 Logical Operator	Input Voltage (Min) (V)	Input Voltage (Max) (V)	Output Voltage (Max) (V)	Output Current (Max) [Rail 1] (A)	Bias Voltage Range (V)	Parametric Applications ASIC Artificial intelligence/accelerator cards (FPGA, ASIC) Core Core and graphic for AMD SVI2 based processor Core and memory for Intel IMVP8 based processor Core and memory for Intel VR13 based designs DDR Memory Solutions DSP FPGA) High performance graphic rail High performance graphics rail High performance graphics rails High performance server core and memory rails High performance servers core or memory rail High performance servers core rail High-end desktop High-end desktop with over-clocking option High-end desktop with overclocking option Network Equipment Networking Networking equipment POL Power Supplies (memory, DSP, ASIC, FPGA) Point-of-load power supply (Memory Server and storage equipment Server/storage equipment Telecom and datacom equipment Telecom/datacom equipment and general purpose and system rails for Intel VR13 and IMVP8 based processors data center memory storage storage and GP storage and general purpose Logical Operator	Qualification Level Standard Logical Operator	Lead Count (#)	Pkg. Type QFN TQFN Logical Operator
ISL68124 PDF Digital Dual Output, 4-Phase Configurable, PWM Controller with PMBus	2	4	4.5	25	3.05	240	3.3	ASIC, DSP, FPGA), Networking equipment and more...	Standard	40	TQFN
ISL68127 PDF Digital Dual Output, 7-Phase Configurable, PWM Controller with PMBus	2	7	4.5	25	3.05	450	3.3	ASIC, DSP, FPGA), Networking equipment and more...	Standard	48	QFN
ISL68134 PDF Digital Dual Output, 4-Phase Configurable, PWM Controller with Adaptive Voltage Scaling (AVSBus) Bus	2	4	4.5	25	3.05	240	3.3	ASIC, DSP, FPGA), Networking equipment and more...	Standard	40	TQFN

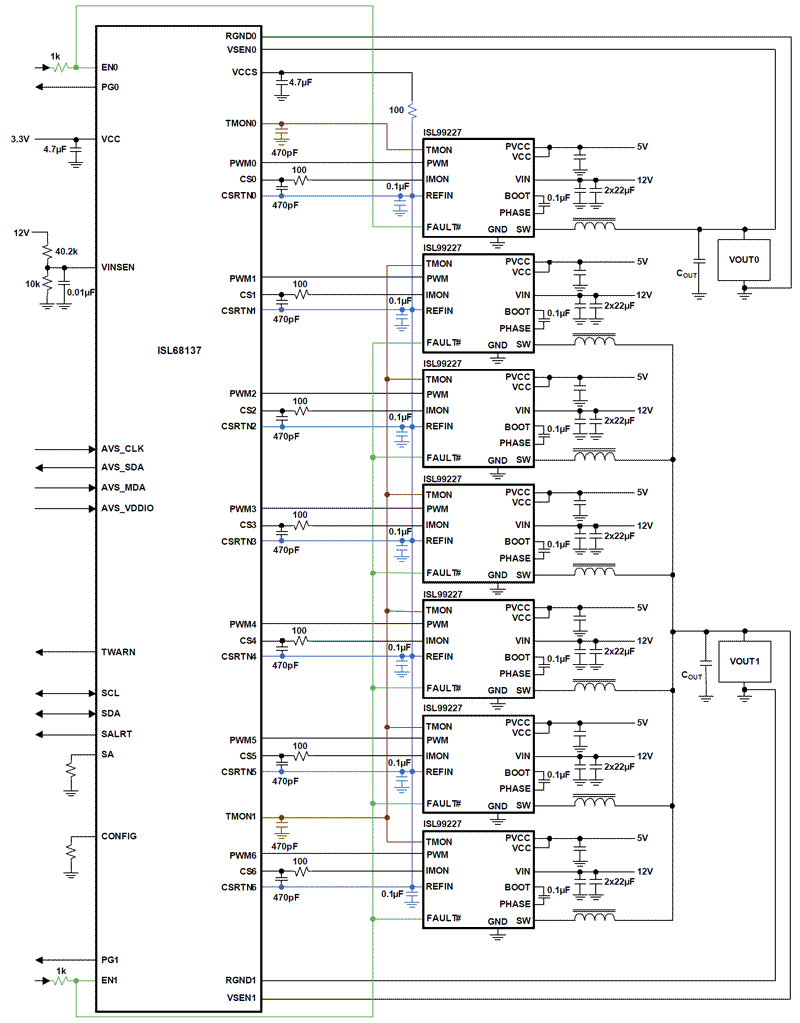

ISL68137 PDF Digital Dual Output, 7-Phase Configurable PWM Controller with Adaptive Voltage Scaling (AVSBus) Bus	2	7	4.5	25	3.05	450	3.3	ASIC, DSP, FPGA), Networking equipment and more...	Standard	48	QFN
ISL68144 PDF Digital Dual Output, 4-Phase Configurable, PWM Controller with PMBus for Cavium	2	4	4.5	25	3.05	240	3.3	ASIC, DSP, FPGA), Networking equipment and more...	Standard	40	TQFN
ISL68147 PDF Digital Dual Output, 7-Phase Configurable, PWM Controller with PMBus for Cavium	2	7	4.5	25	3.05	450	3.3	ASIC, DSP, FPGA), Networking equipment and more...	Standard	48	QFN
ISL68220 PDF Digital Dual Output, 2-Phase PWM Controller	2	2	4.5	18	3.05	180	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	32	TQFN
ISL68221 PDF Digital Triple Output, 3-Phase PWM Controller	3	3	4.5	18	3.05	270	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	40	TQFN
ISL68222 PDF Digital Dual Output, 5-Phase Controller	2	5	4.5	18	3.05	450	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	40	TQFN
ISL68223 PDF Digital Dual Output, 4-Phase PWM Controller	2	4	4.5	18	3.05	360	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	40	TQFN
ISL68224 PDF Digital Triple Output, 6-Phase PWM Controller	3	6	4.5	18	3.05	540	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	52	QFN
ISL68225 PDF Digital Dual Output, 9-Phase PWM Controller	2	9	4.5	18	3.05	810	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	52	QFN
ISL68226 PDF Digital Triple Output, 8-Phase PWM Controller	3	8	4.5	18	3.05	720	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	60	QFN

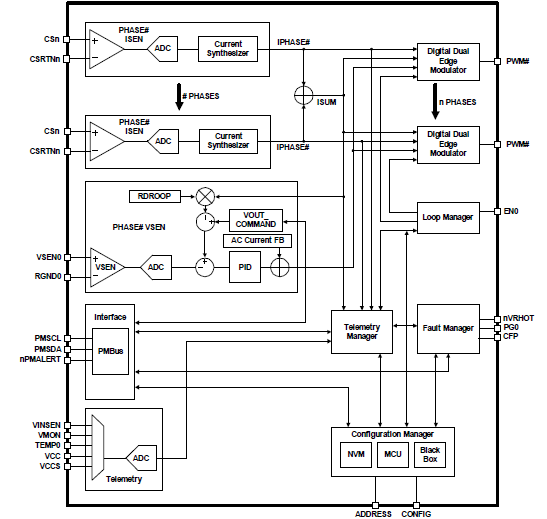

ISL68227 PDF Digital Single Output,12-Phase PWM Controller	2	12	4.5	18	3.05	1080	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	60	QFN

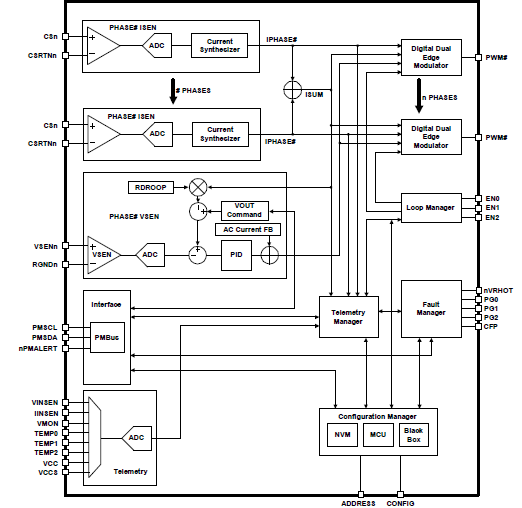

ISL68229 PDF Digital Triple Output, 12-Phase PWM Controller	3	12	4.5	18	3.05	1080	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	68	QFN

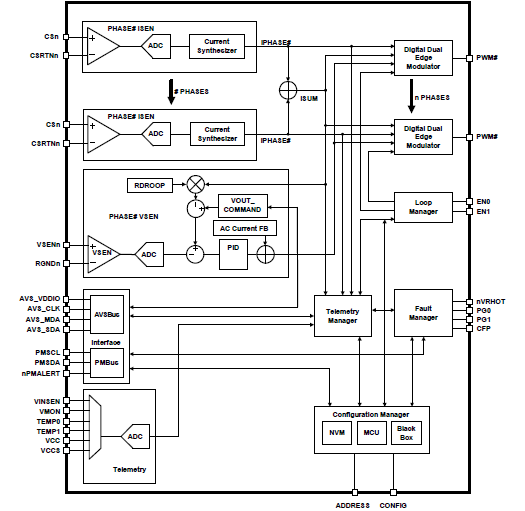

ISL68233 PDF Digital Dual Output, 5-Phase Controller	2	5	4.5	18	3.05	450	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	40	TQFN
ISL68236 PDF Digital Dual Output, 9-Phase PWM Controller	2	9	4.5	18	3.05	810	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	52	QFN
ISL68239 PDF Digital Triple Output, 12-Phase PWM Controller	3	12	4.5	18	3.05	1080	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	68	QFN
ISL69122 PDF Digital Dual Output, 4-Phase Configurable, VR13 PWM Controller with SVID and 2-Bit AVID Interfaces	2	4	4.5	25	3.05	240	3.3	Core and memory for Intel VR13 based designs and more...	Standard	40	TQFN
ISL69124 PDF Digital Dual Output, 4-Phase Configurable, VR13 PWM Controller	2	4	4.5	25	3.05	240	3.3	Core and memory for Intel VR13 based designs and more...	Standard	40	TQFN
ISL69125 PDF Digital Dual Output, 4-Phase Configurable, VR13 PWM Controller	2	4	4.5	25	3.05	240	3.3	Core and memory for Intel VR13 based designs and more...	Standard	40	TQFN
ISL69127 PDF Digital Dual Output 6+1-Phase VR13 PWM Controller	2	6+1	4.5	25	3.05	360	3.3	Core and memory for Intel VR13 based designs and more...	Standard	48	QFN
ISL69128 PDF Digital Dual Output, 7-Phase Configurable, VR13/IMVP8 PWM Controller	2	7	4.5	25	3.05	450	3.3	Core and memory for Intel VR13 based designs and more...	Standard	48	QFN
ISL69134 PDF Digital Dual Output, 4-Phase Configurable, IMVP8 PWM Controller	2	4	4.5	25	3.05	240	3.3	Core and memory for Intel IMVP8 based processor and more...	Standard	40	TQFN
ISL69137 PDF Digital Dual Output, 7-Phase Configurable, IMVP8 PWM Controller	2	7	4.5	25	3.05	450	3.3	Core and memory for Intel IMVP8 based processor and more...	Standard	48	QFN
ISL69138 PDF Digital, Dual Output, 7-Phase Configurable, VR13/IMVP8 PWM Controller	2	7	4.5	25	3.05	450	3.3	Core, High-end desktop with over-clocking option and more...	Standard	48	QFN

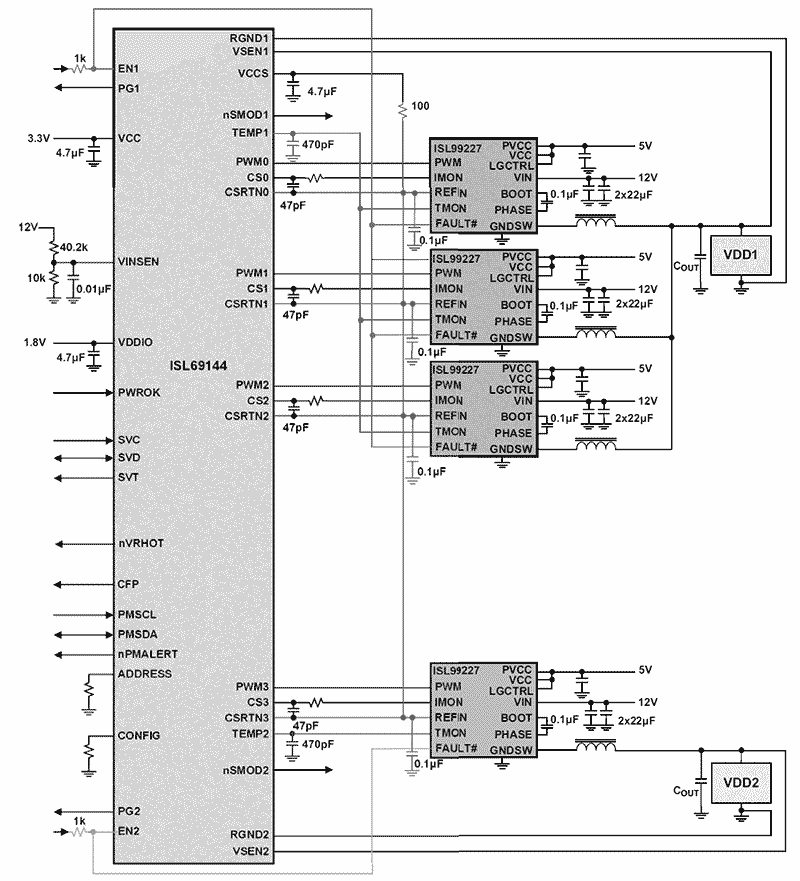

ISL69144 PDF Digital Dual Output 4-Phase AMD PWM Controller	2	4	4.5	25	3.05	240	3.3	Core and graphic for AMD SVI2 based processor and more...	Standard	40	TQFN
ISL69147 PDF Digital Dual Output 7-Phase AMD PWM Controller	2	7	4.5	25	3.05	450	3.3	Core and graphic for AMD SVI2 based processor and more...	Standard	48	QFN
RAA228218 PDF Digital Single Output, 20-Phase PWM Controller with Adaptive Voltage Scaling Bus (AVSBus)	1	20	4.5	18	3.05	1800	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	60	QFN
RAA228227 PDF Digital Dual Output, 16-Phase PWM Controller with Adaptive Voltage Scaling Bus (AVSBus)	2	16	4.5	18	3.05	1440	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	60	QFN
RAA228228 PDF Digital Double Output 20-Phase PWM Controller with Adaptive Voltage Scaling Bus (AVSBus)	2	20	4.5	18	3.05	180	3.135 - 3.465	Artificial intelligence/accelerator cards (FPGA, ASIC) and more...	Standard	68	QFN

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Documentation

	Title	Type	Date
	IoT-Cloud-Systeme mit Strom versorgen PDF298 KB	White Paper	Aug 14, 2018
	Powering IoT Infrastructure Systems with Digital Multiphase PDF705 KB	White Paper	Aug 14, 2018
