Overview

Description

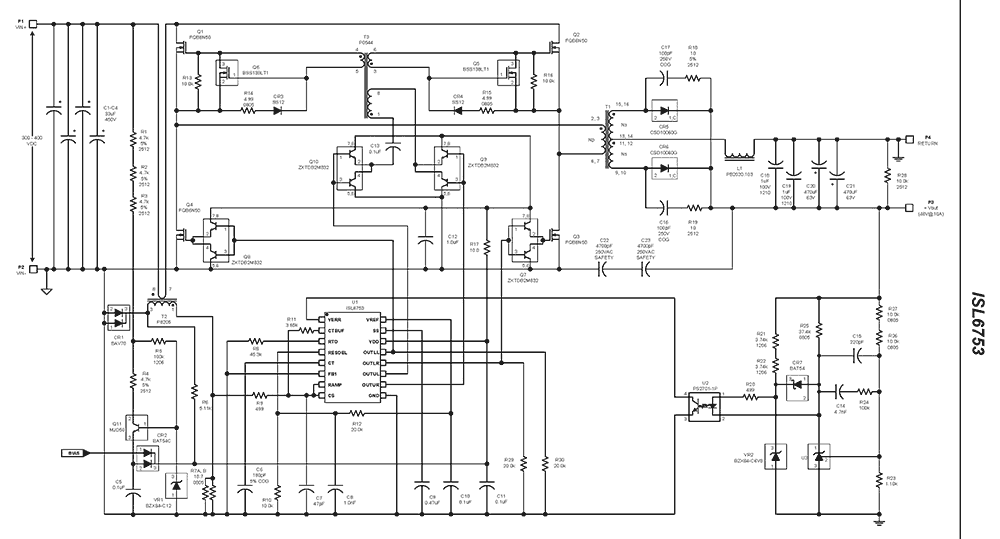

The ISL6753 is a high-performance, low-pin-count alternative, zero-voltage switching (ZVS) full-bridge PWM controller. Like the ISL6551, it achieves ZVS operation by driving the upper bridge FETs at a fixed 50% duty cycle while the lower bridge FETS are trailing-edge modulated with adjustable resonant switching delays. Compared to the more familiar phase-shifted control method, this algorithm offers equivalent efficiency and improved overcurrent and lightload performance with less complexity in a lower pin count package. This advanced BiCMOS design features low operating current, adjustable oscillator frequency up to 2MHz, adjustable soft-start, internal over temperature protection, precision deadtime and resonant delay control, and short propagation delays. Additionally, Multi-Pulse Suppression ensures alternating output pulses at low duty cycles where pulse skipping may occur.

Features

  • Adjustable Resonant Delay for ZVS Operation
  • Voltage- or Current-Mode Operation
  • 3% Current Limit Threshold
  • 175µA Startup Current
  • Supply UVLO
  • Adjustable Deadtime Control
  • Adjustable Soft-Start
  • Adjustable Oscillator Frequency Up to 2MHz
  • Tight Tolerance Error Amplifier Reference Over Line, Load, and Temperature
  • 5MHz GBWP Error Amplifier
  • Adjustable Cycle-by-Cycle Peak Current Limit
  • Fast Current Sense to Output Delay
  • 70ns Leading Edge Blanking
  • Multi-Pulse Suppression
  • Buffered Oscillator Sawtooth Output
  • Internal Over Temperature Protection
  • Pb-Free Plus Anneal Available and ELV, WEEE, RoHS Compliant

Applications

Applications

  • ZVS Full-Bridge Converters
  • Telecom and Datacom Power
  • Wireless Base Station Power
  • File Server Power
  • Industrial Power Systems
