Partner Board (RZ/G2N, RZ/G2M, RZ/G2H)

This Baseboard is used for Embedded Modules TQMaRZG2x from TQ - Systems GmbH.

TQ-logo

Board description:

The Baseboard MBaRZG2x is designed for software development based on the pin-compatible Renesas processors RZ/G2N, RZ/G2M and RZ/G2H. The Baseboard offers the ideal basis for software development and provides the most important interfaces of the processors. Over the board connectors the following TQ - module variants can be attached and used on this mainboard: TQMaRZG2N, TQMaRZG2M & TQMaRZG2H. The MBaRZG2x is not only used for software development but also as a hardware reference design, which saves costs and time in the development of your own hardware design.

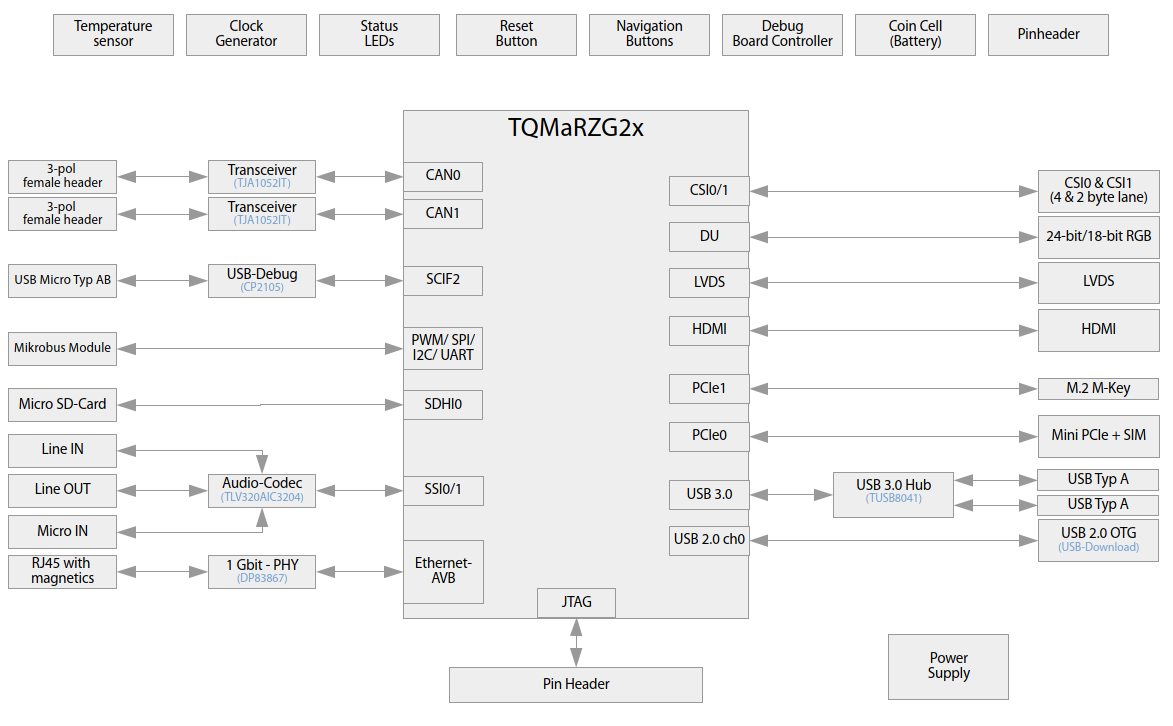

Block diagram MBaRZG2x:

MBaRZG2x

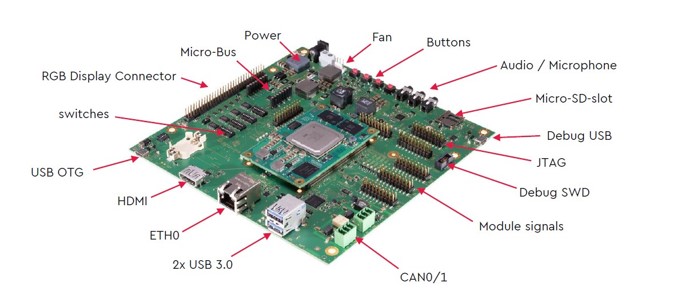

Interfaces of MBaRZG2x:

TQ_MBARZG2x

Embedded Module TQMaRZG2:

The embedded module TQMaRZG2x is based on the RZ/G2 processor, an ARM® Cortex®-A53/A57 processor from Renesas. The integrated high-performance graphics controller supports applications with high display requirements. Full access to all signal pins guarantees flexible applications and cost-effective project development. The CPU is available in three versions with different performance and features. With up to four Cortex®-A57 and simultaneously up to four Cortex®-A53 cores, the TQMaRZG2x offers an optimal ratio between performance and power dissipation.

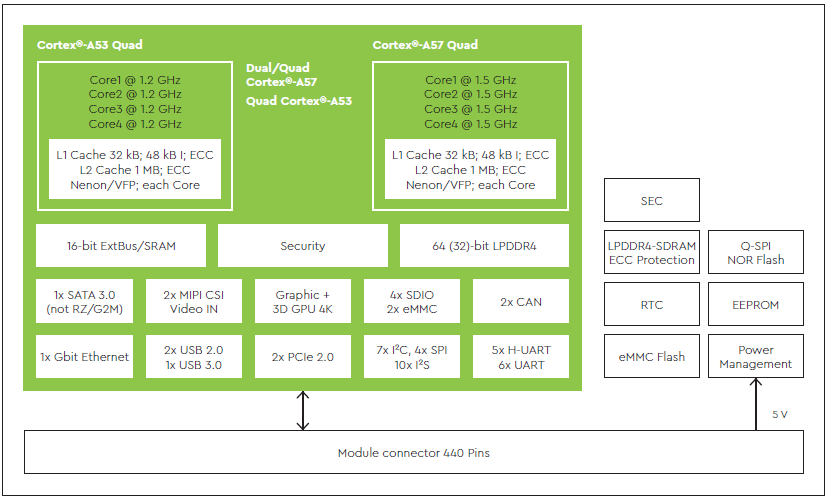

Block diagram TQMaRZG2x:

TQMaRZG2x

Specifications:

CPU RZ/G2N, RZ/G2M, RZ/G2H
Interfaces Up to 1x Ethernet 10/100/1000 Mbit
Up to 1x USB 3.0 OTG interface
Up to 2x USB 2.0 OTG interface
Up to 6x UART
Up to 5x H-UART
Up to 2x CAN FD
Up to 1x SATA (not RZ/G2M)
Periphery interfaces Up to 4x SDIO/eMMC
Up to 2x PCIe 2.0
Up to 7x I2C
Up to 4x SPI
Up to 1x QSPI
Up to 10x I²S
Up to 32 GPIO
Graphic 1x HDMI 2.0
1x LVDS
1x Digital RGB
Camera 2x MIPI CSI2
Memory LPDDR4-SDRAM: Up to 8 GB
(ECC Optional)
Quad SPI NOR: Up to 512 MB
eMMC Flash: Up to 64 GB
EEPROM: 0/64-kbit
Other Real Time Clock (RTC)
Temperature sensor
CPU JTAG interface
Power supply 5 V
Ambient conditions Standard temperature range:
-25°C…+85°C
Extended temperature range:
-40°C…+85°C
Dimensions 77 mm x 50 mm
Plug-in system Board-to-board plug-in system 440 Pins 0.5 mm Pitch
Operating systems Linux
Operating systems on request QNX, Android

Board View of SOM Board TQMaRZG2x

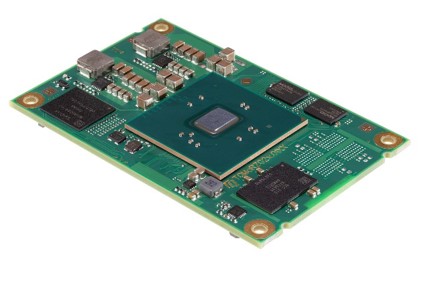

TQMaRZG2N/ M
TQMaRZG2N/ M

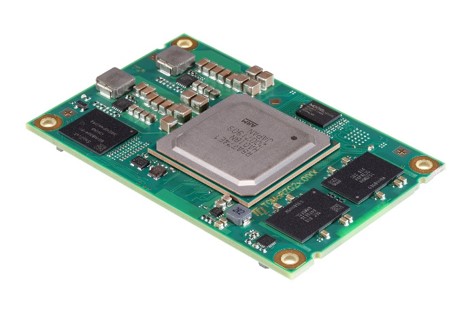

TQMaRZG2H
TQMaRZG2H

Learn more:

https://www.tq-group.com/en/products/tq-embedded/arm-architecture/tqmrzg2x/

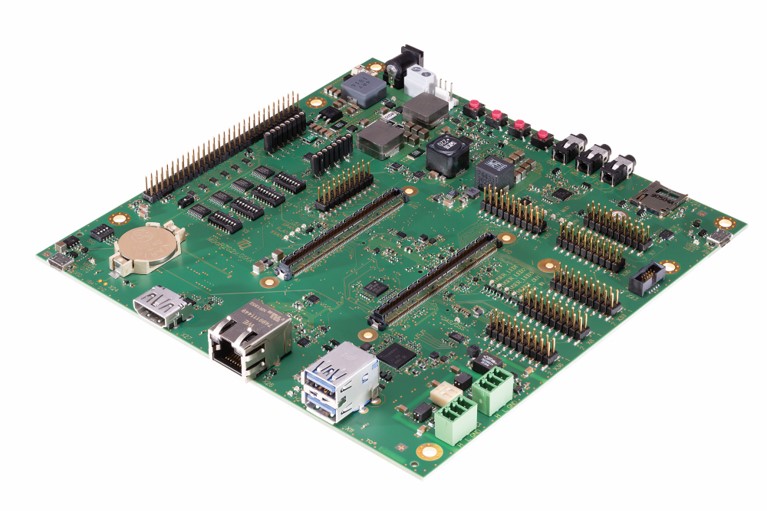

Board View of Evaluation Kit MBaRZG2x

Board View of Evaluation Kit MBaRZG2x

Learn more:

https://www.tq-group.com/en/products/tq-embedded/arm-architecture/stkarzg2x/
